Tactile pad ME-222

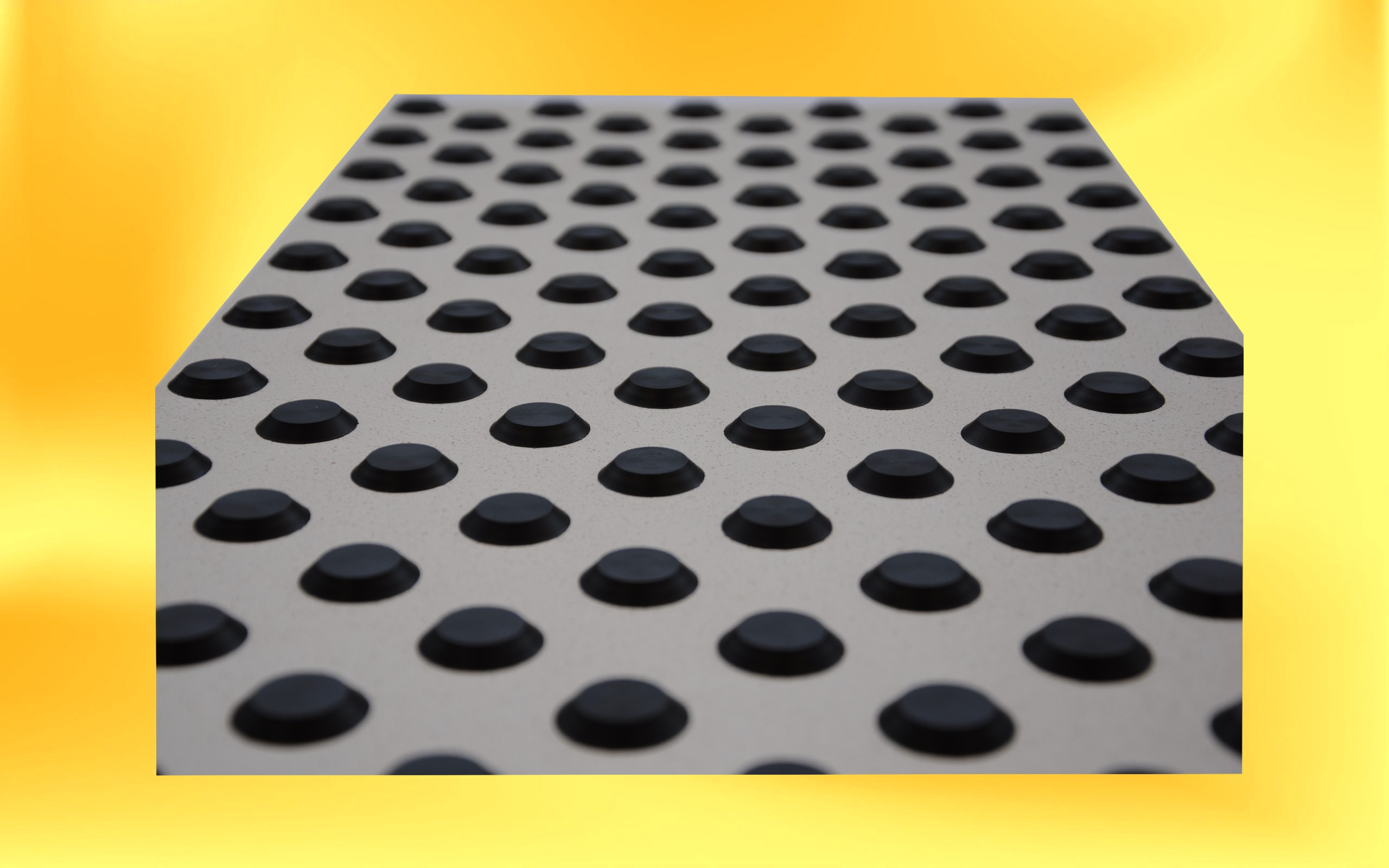

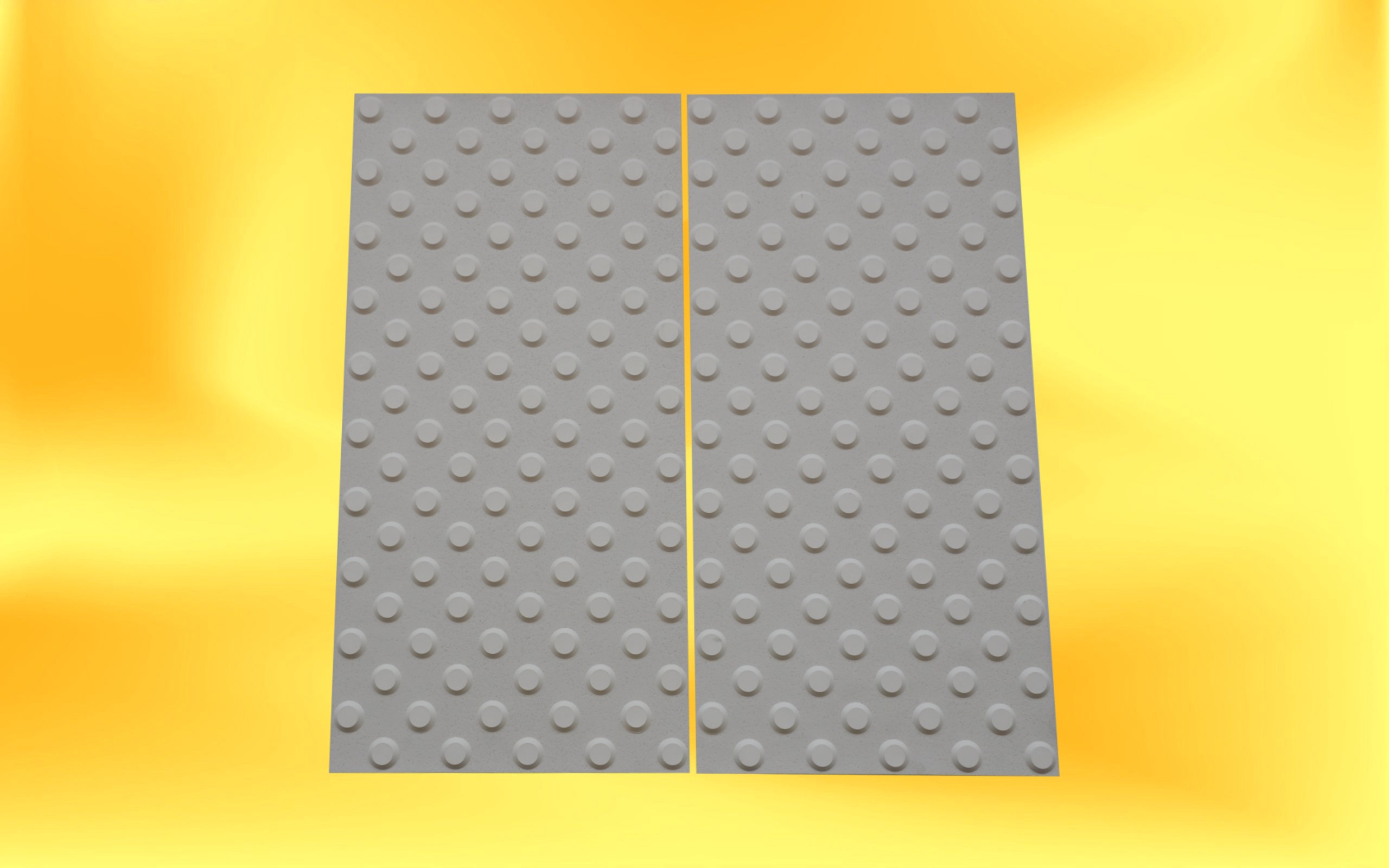

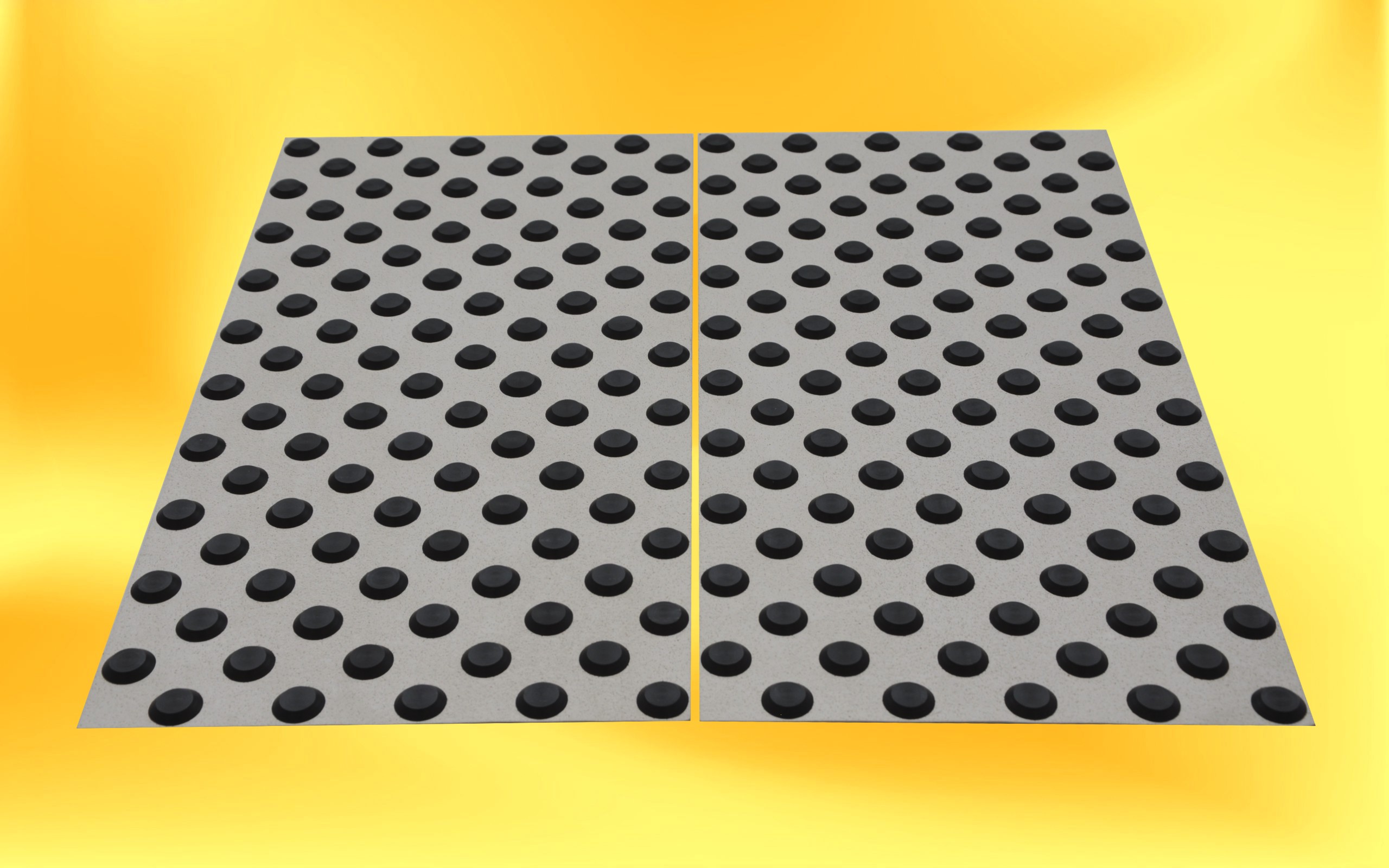

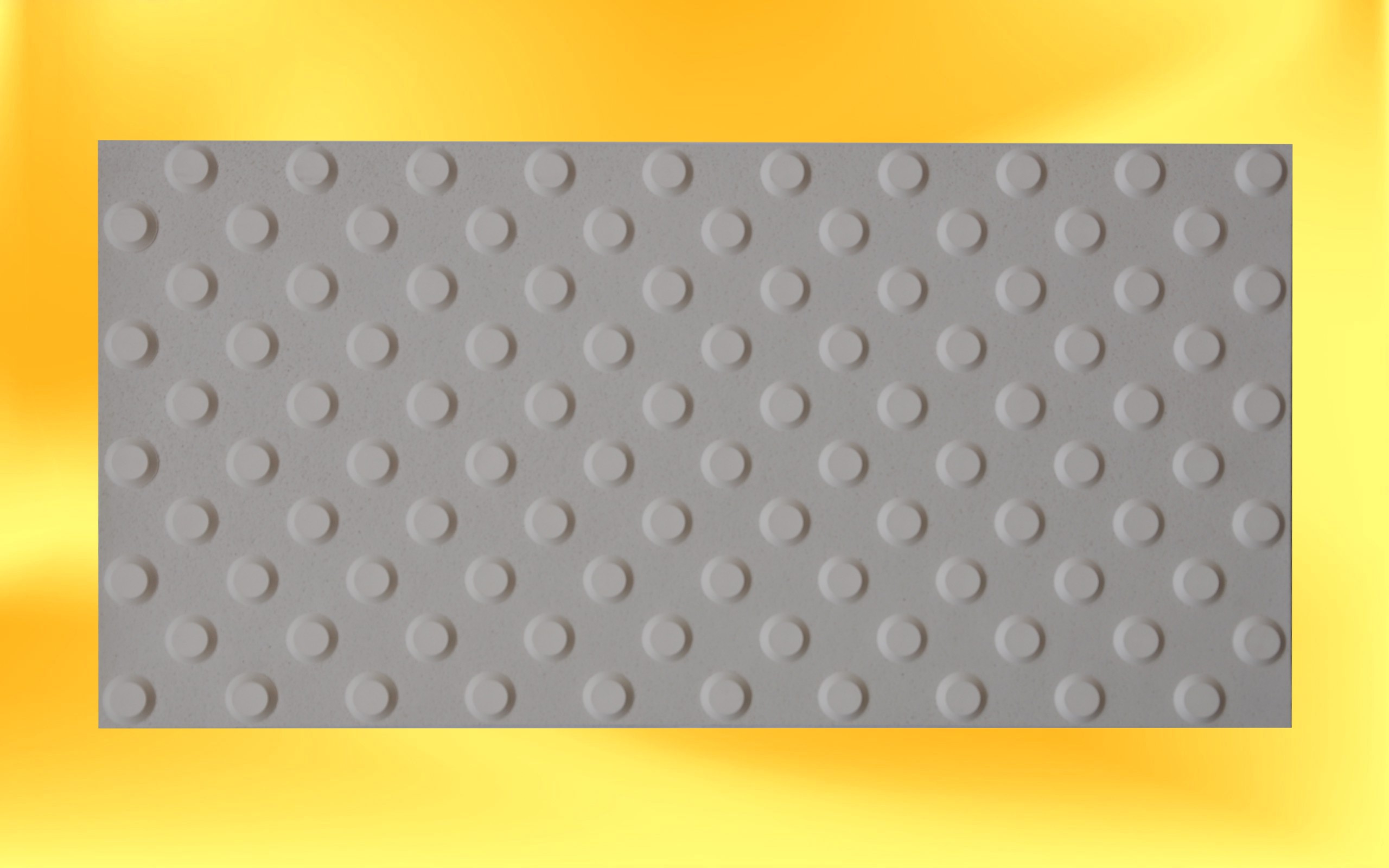

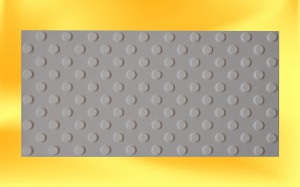

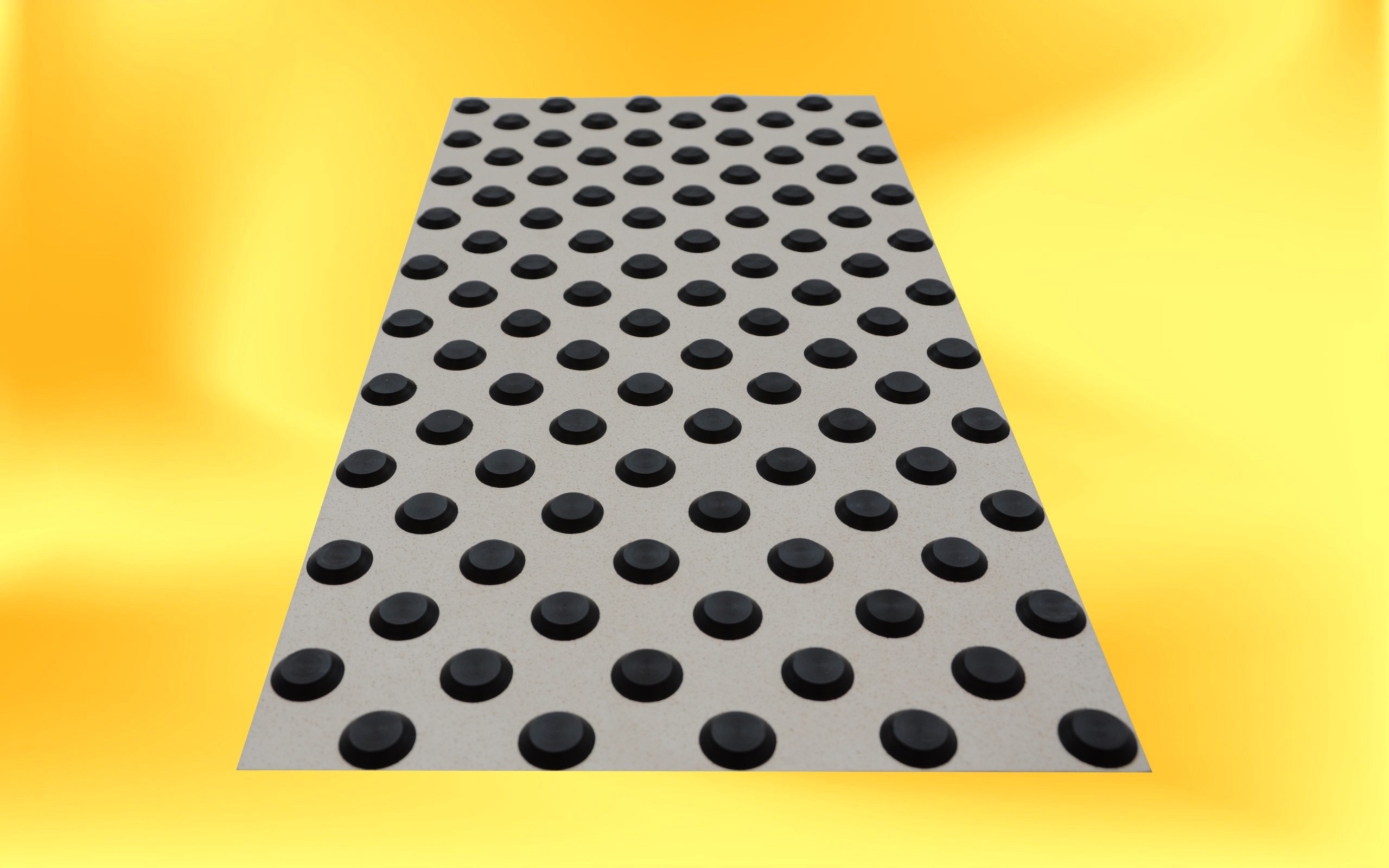

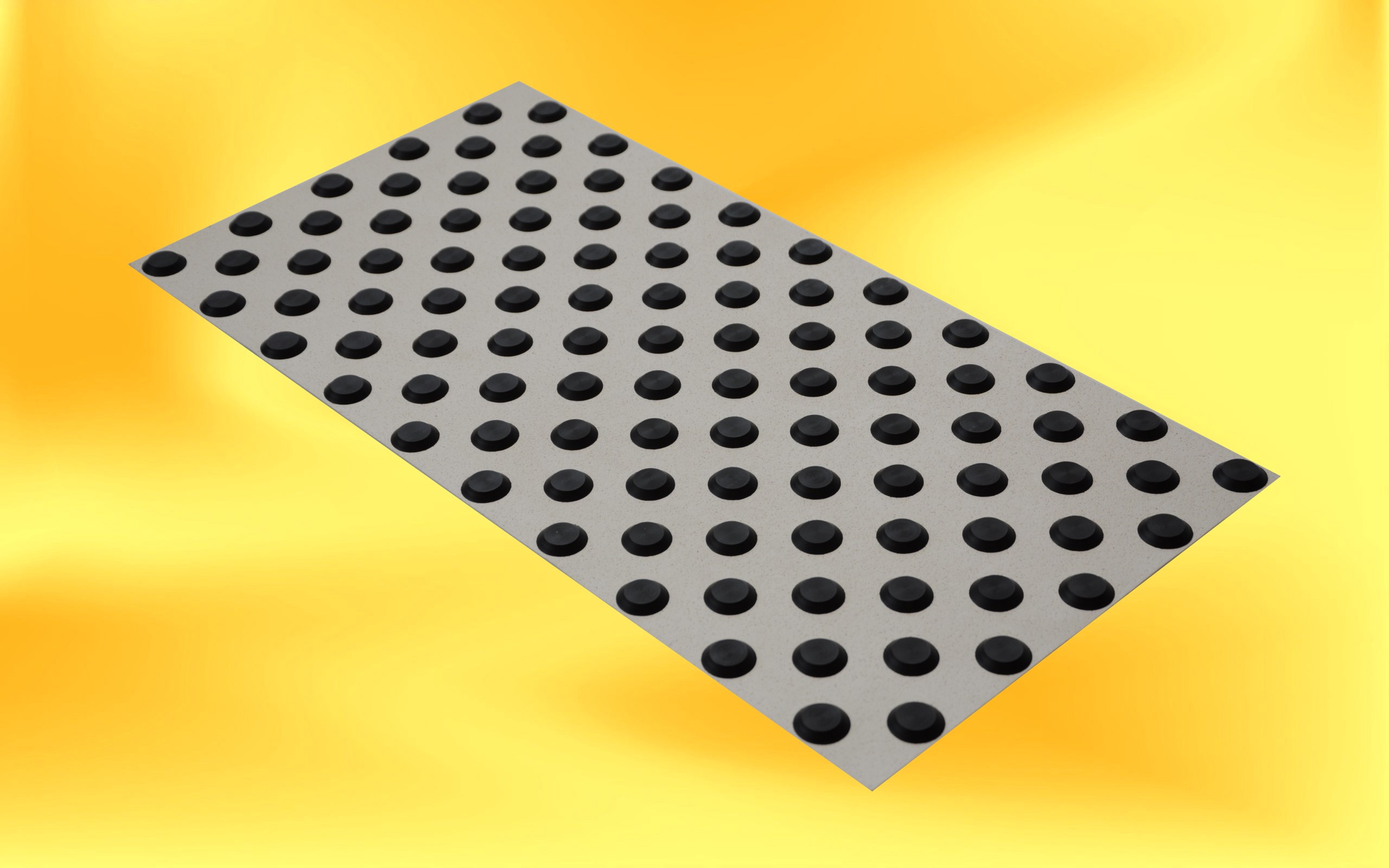

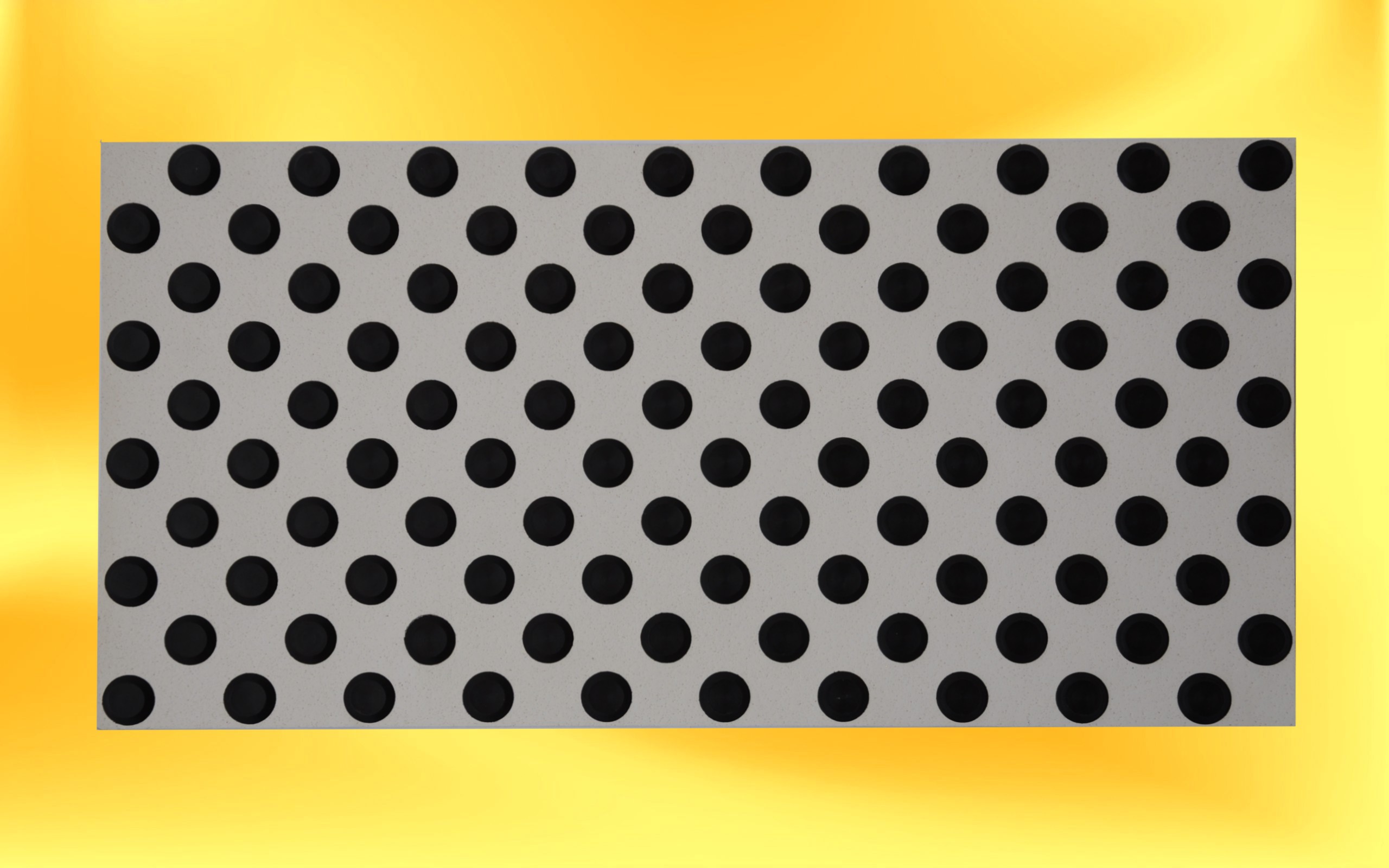

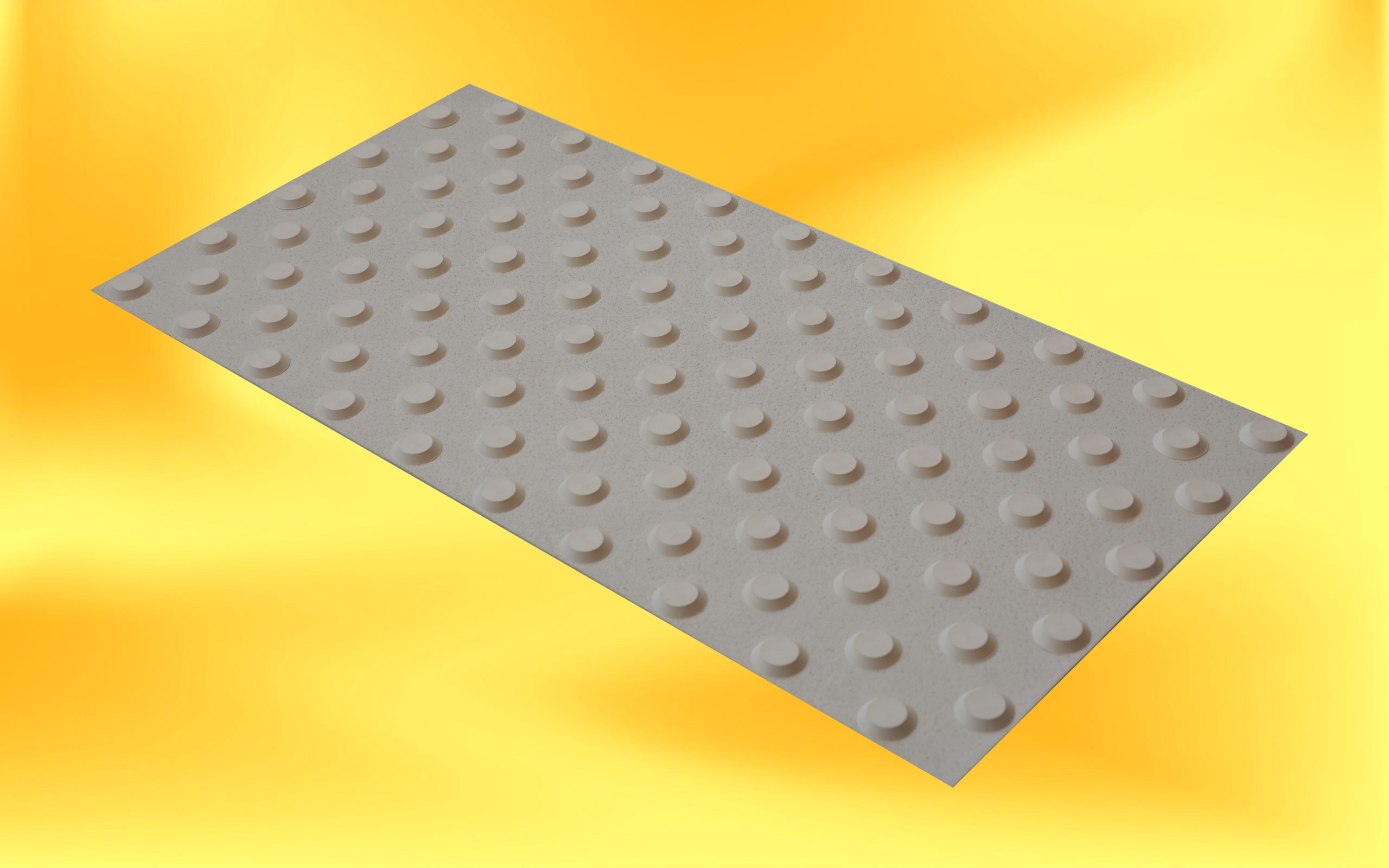

Tactile pad type ME-222 (studs ∅25 mm in form of truncated cones – with flat top)

In accordance with DIN 32984 norm.
Dimensions:  600 x 300 mm
Made of elastomer (belt) and two-component cold plastic (studs).
Colour:  Various colour combinations (see below)
Used as surface mounted tactile paving (warning and signal tactile indicators) for outdoor as well as indoor applications. To be placed over the existing paving, which makes the installation simple, quick and cost effective (it eliminates excavation and the footpath can be re-opened within a few hours).
Exterior applications:  Suitable for the application on matured bitumen and concrete surfaces. Installation by gluing using two-component cold plastic (methacrylate resin).
Interior applications:  Installation over surfaces such as ceramic / clay, marble or granite tiles, etc. Installation using glue that is already pre-applied at the bottom of the product and covered by a plastic protection film.

Tactile pad ME-222Tactile pad ME-222Tactile pad ME-222Tactile pad ME-222

Tactile pad ME-222Tactile pad ME-222

Tactile pad ME-222

Tactile pad ME-222











































Available colour combinations with order numbers:

ME-2221-S   Tactile pad 600×300 mm white/white studs
ME-2222-S   Tactile pad 600×300 mm white/black studs
ME-2223-S   Tactile pad 600×300 mm white/yellow studs
ME-2224-S   Tactile pad 600×300 mm white/grey studs
ME-2225-S   Tactile pad 600×300 mm yellow/white studs
ME-2226-S   Tactile pad 600×300 mm yellow/black studs
ME-2227-S   Tactile pad 600×300 mm yellow/yellow studs
ME-2228-S   Tactile pad 600×300 mm yellow/grey studs
ME-2229-S   Tactile pad 600×300 mm black/white studs
ME-2230-S   Tactile pad 600×300 mm black/black studs
