Guiding strips ST-30 plain


Stainless steel guiding strips with plain surface — type ST-30

Surface mounted tactile guiding strips L=280 mm made of stainless steel AISI 316, in accordance with the international norm ISO 23599/2012 and/or german norm DIN 32984 in various versions, suitable (as a tactile orientation system for blind and visually impaired people) for indoor or also for outdoor applications (version with pins).
The top surface is plain (without pattern/relief).
Plain stainless steel guiding strips are available in 3 versions:
— with pins (for fixation into pre-drilled holes in floors)
— without pins (for fixation using additional glue like MAMUT or similar)
— self-adhesive with high-quality AFT adhesive tape — for indoor use only

Order numbers of all versions are mentioned below the following photos of stainless steel guiding lines.

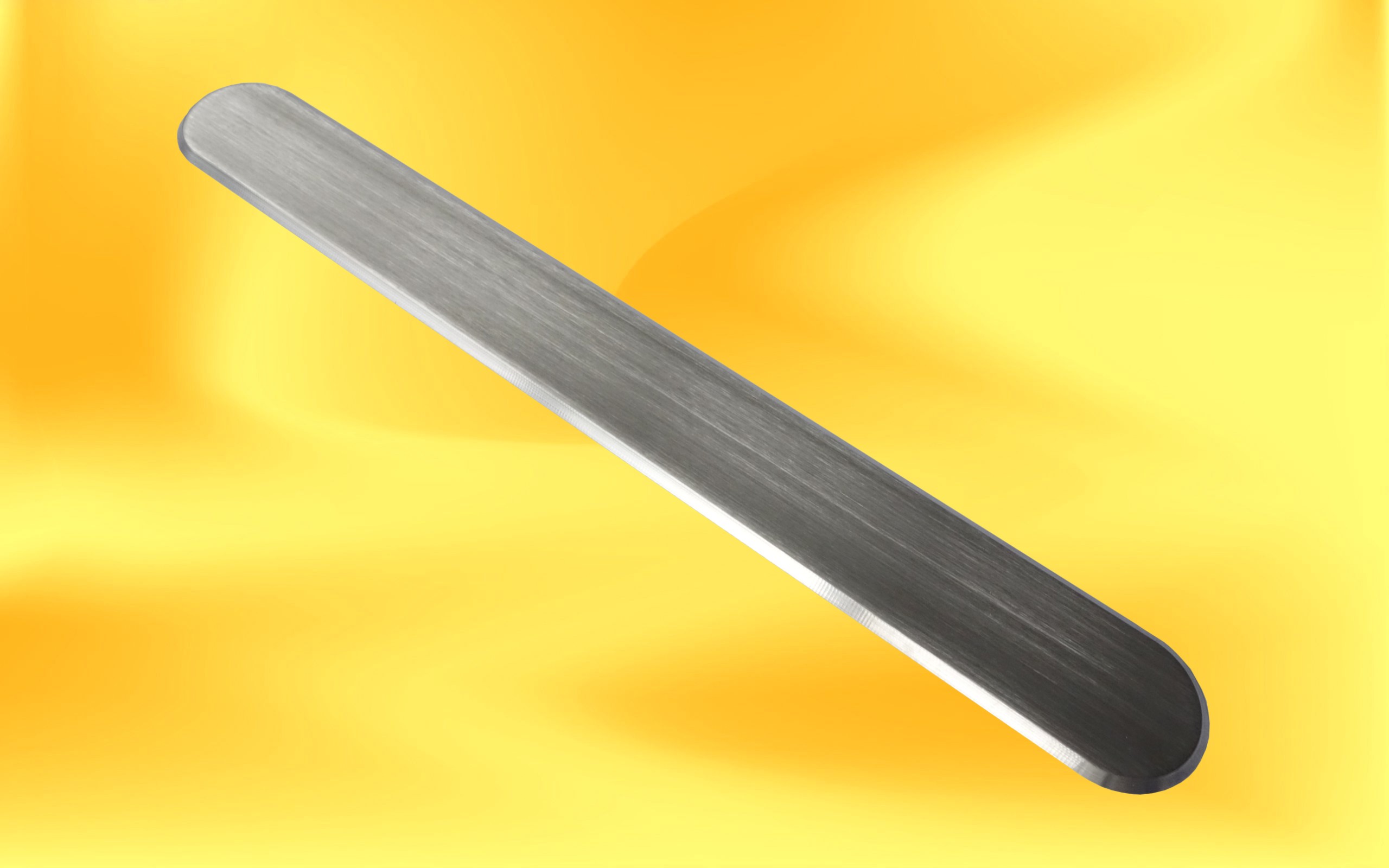

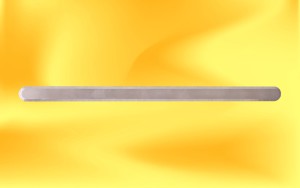

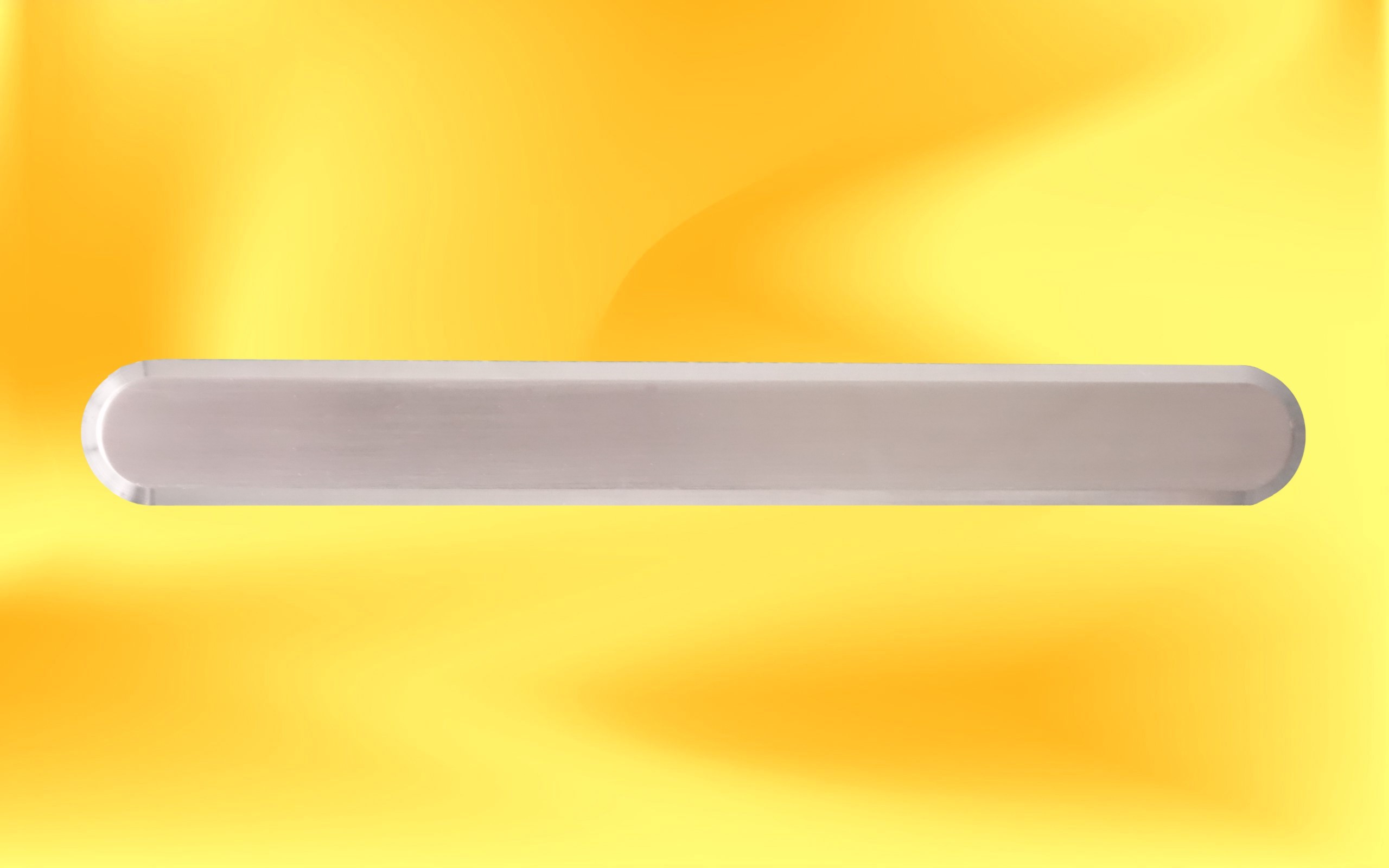

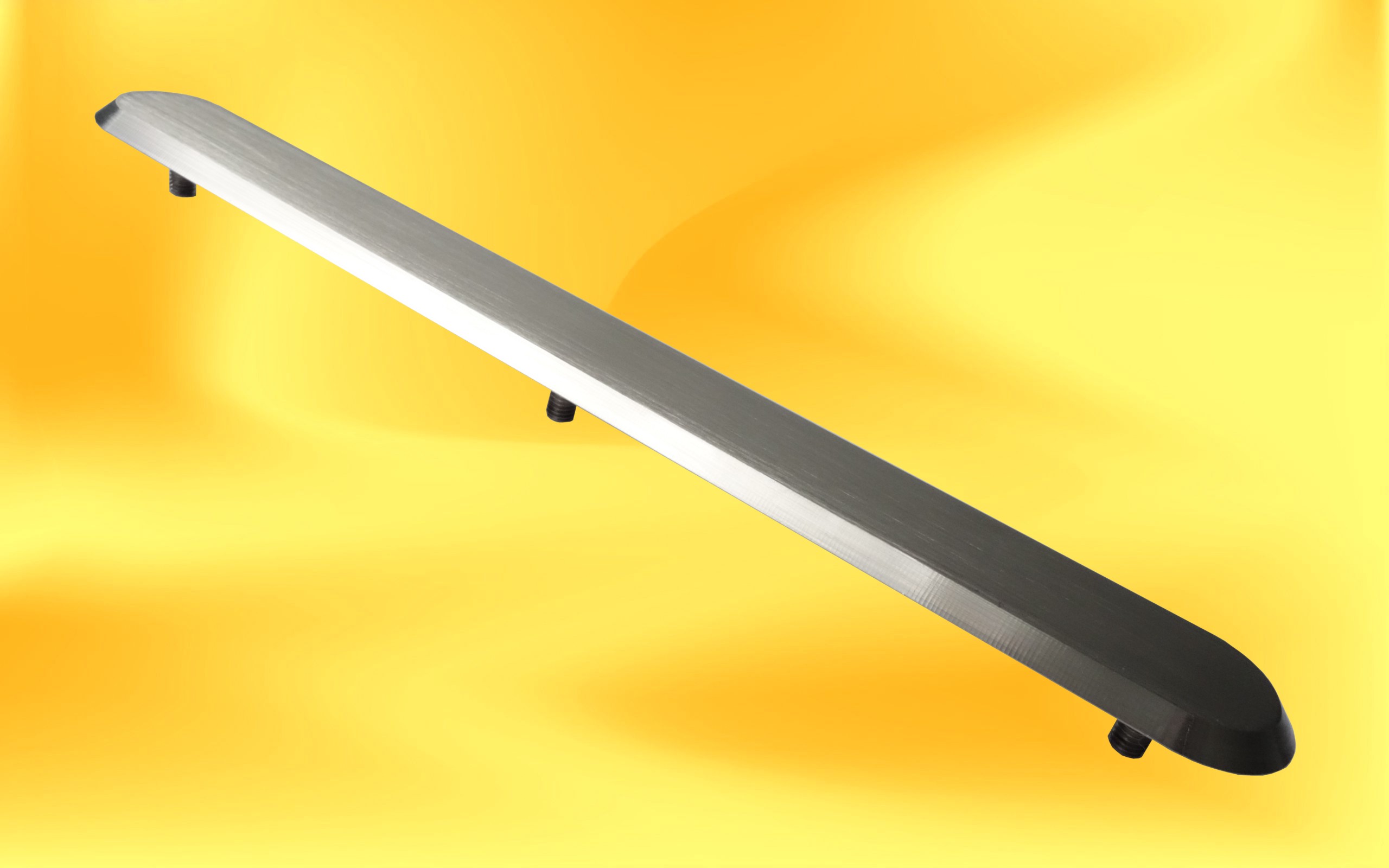

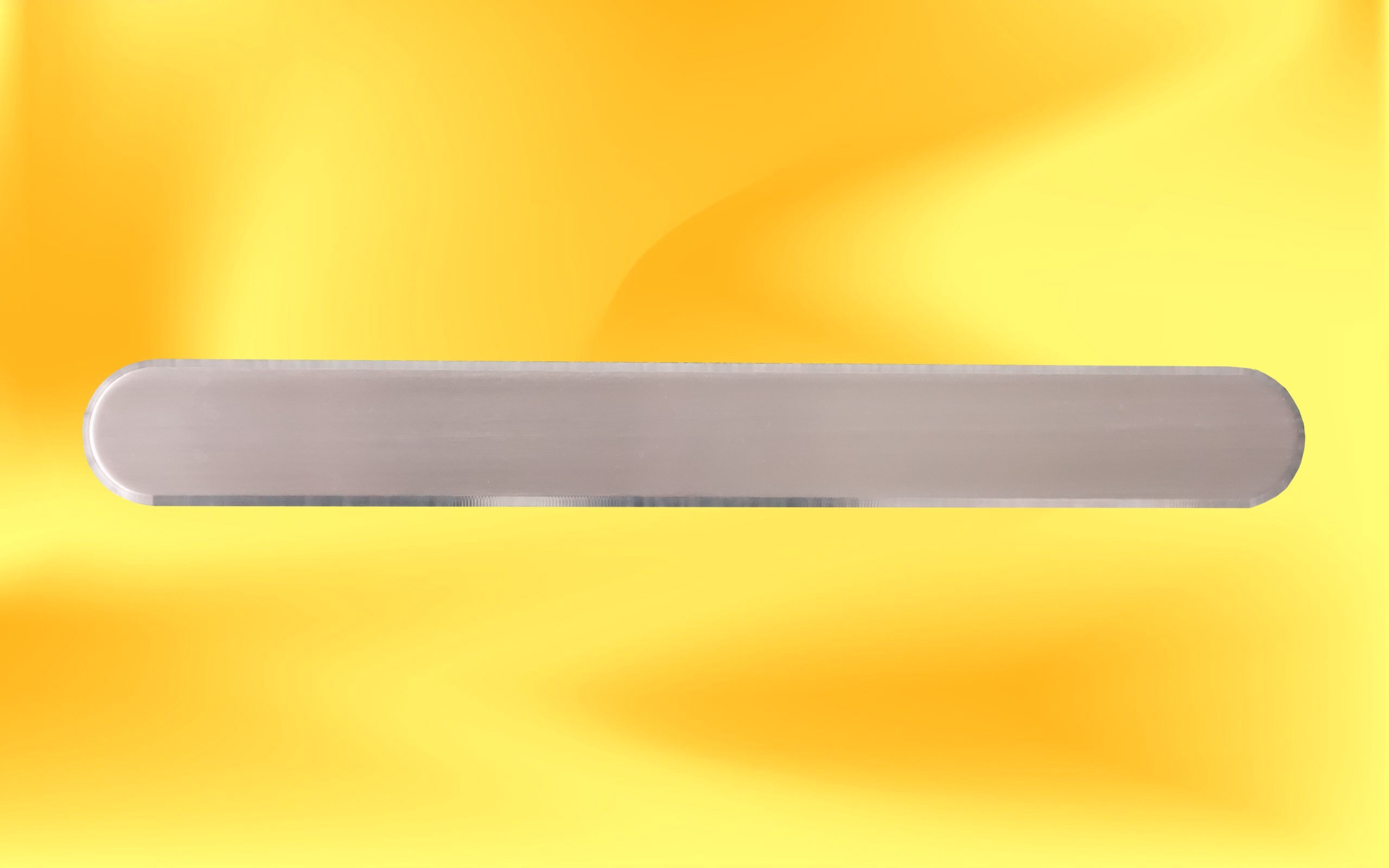

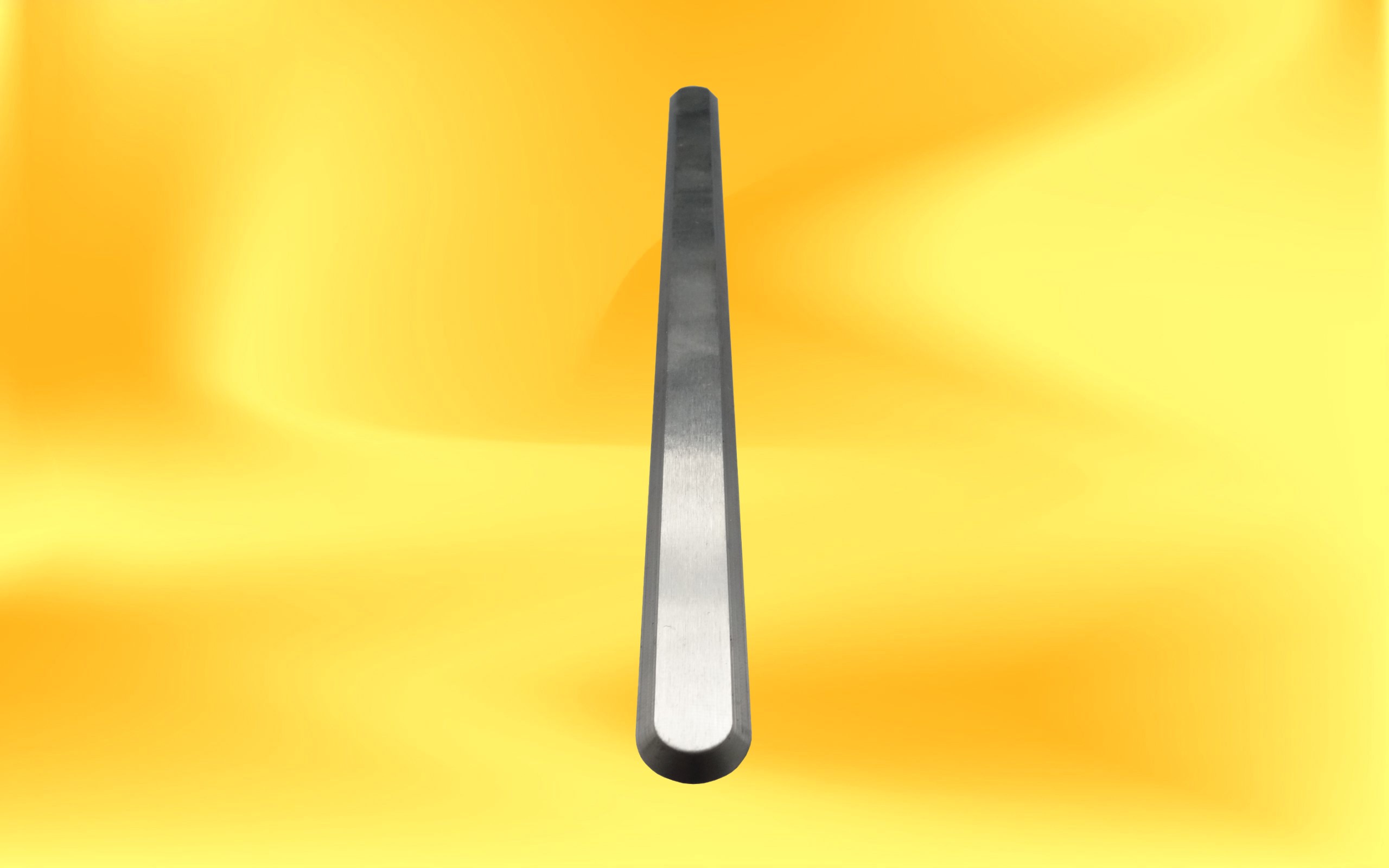

Guiding strips ST-30 plainGuiding strips ST-30 plainGuiding strips ST-30 plain

Guiding strips ST-30 plainGuiding strips ST-30 plainGuiding strips ST-30 plain

Available versions with order numbers:

ST-3001      Guiding strip 280x34x5 mm (AISI 316) plain surface MILLED, non-polished, without pins
ST-3001-P  Guiding strip 280x34x5 mm (AISI 316) plain surface MILLED, non-polished, with pins
ST-3001-S  Guiding strip 280x34x5,5 mm (AISI 316) plain surface MILLED, non-polished, self-adhesive (AFT tape)
ST-3002      Guiding strip 280x34x3 mm (AISI 316) plain surface MILLED, non-polished, without pins
ST-3002-P  Guiding strip 280x34x3 mm (AISI 316) plain surface MILLED, non-polished, with pins
ST-3002-S  Guiding strip 280x34x3,5 mm (AISI 316) plain surface MILLED, non-polished, self-adhesive (AFT tape)

ST-3011      Guiding strip 280x16x5 mm (AISI 316) plain surface MILLED, non-polished, without pins
ST-3011-P  Guiding strip 280x16x5 mm (AISI 316) plain surface MILLED, non-polished, with pins
ST-3011-S  Guiding strip 280x16x5,5 mm (AISI 316) plain surface MILLED, non-polished, self-adhesive (AFT tape)
ST-3012      Guiding strip 280x16x3 mm (AISI 316) plain surface MILLED, non-polished, without pins
ST-3012-P  Guiding strip 280x16x3 mm (AISI 316) plain surface MILLED, non-polished, with pins
ST-3012-S  Guiding strip 280x16x3,5 mm (AISI 316) plain surface MILLED, non-polished, self-adhesive (AFT tape)
