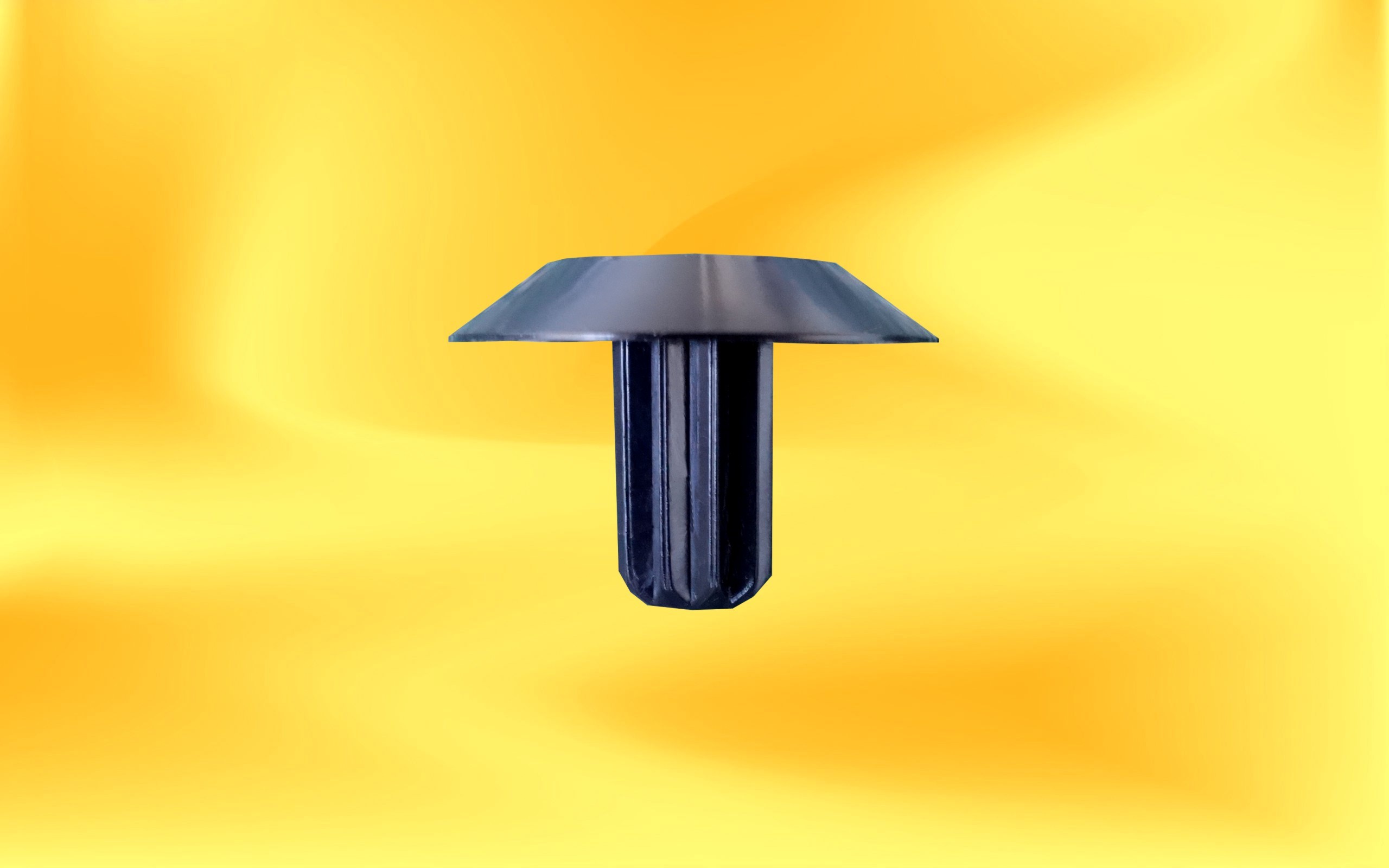

Tactile stud PL-24 with pin


Plastic tactile paving studs with pins – type PL-24

Surface mounted plastic warning studs Ø25/15×4 mm made in accordance with the international norm ISO 23599/2012 in various versions and colours, suitable (as a tactile orientation system for blind and visually impaired people) for indoor or potentially also for outdoor applications.
Tactile studs (tactile truncated domes) are made of polyurethane/desmopan and are available in 2 versions:
– with pin (for fixation into pre-drilled holes in floors)
– without pin (for fixation using additional glue like MAMUT or similar)
Possible colours:  white, black, yellow, grey, red, silver with marble effect, bronze/brass with marble effect
Order numbers of all versions and colours are mentioned below the following photos of plastic tactile studs.

Tactile stud PL-24 with pinTactile stud PL-24 with pinTactile stud PL-24 with pin

Possible colour versions with order numbers:

PL-2401      Tactile stud Ø25/15×4 mm without pin – white
PL-2401-P  Tactile stud Ø25/15×4 mm with pin – white
PL-2402      Tactile stud Ø25/15×4 mm without pin – black
PL-2402-P  Tactile stud Ø25/15×4 mm with pin – black
PL-2403      Tactile stud Ø25/15×4 mm without pin – yellow
PL-2403-P  Tactile stud Ø25/15×4 mm with pin – yellow
PL-2404      Tactile stud Ø25/15×4 mm without pin – grey
PL-2204-P  Tactile stud Ø25/15×4 mm with pin – grey
PL-2405      Tactile stud Ø25/15×4 mm without pin – red
PL-2405-P  Tactile stud Ø25/15×4 mm with pin – red
PL-2406      Tactile stud Ø25/15×4 mm without pin – silver with marble effect
PL-2406-P  Tactile stud Ø25/15×4 mm with pin – silver with marble effect
PL-2407      Tactile stud Ø25/15×4 mm without pin – bronze/brass with marble effect
PL-2407-P  Tactile stud Ø25/15×4 mm with pin – bronze/brass with marble effect
