Guiding line ME-12


Guiding line (directional tactile pad) type ME-12

Standard:  In accordance with Austrian norm ÖNORM V 2102-1.
Dimensions:  600 x 476 mm
Material:  Made of elastomer (belt) and two-component cold plastic (strips).
Colour:  Various colour combinations of guiding lines (see below)
Application:  Used as surface mounted tactile paving (directional lines) for outdoor as well as indoor applications. To be placed over the existing paving, which makes the installation simple, quick and cost effective (it eliminates excavation and the footpath can be re-opened within a few hours).
Exterior:  Suitable for the application on matured bitumen and concrete surfaces. Installation by gluing using two-component cold plastic (methacrylate resin).
Interior:  Installation over surfaces such as ceramic / clay, marble or granite tiles, etc. by using glue that is already pre-applied at the bottom of the product and covered by a plastic protection film.

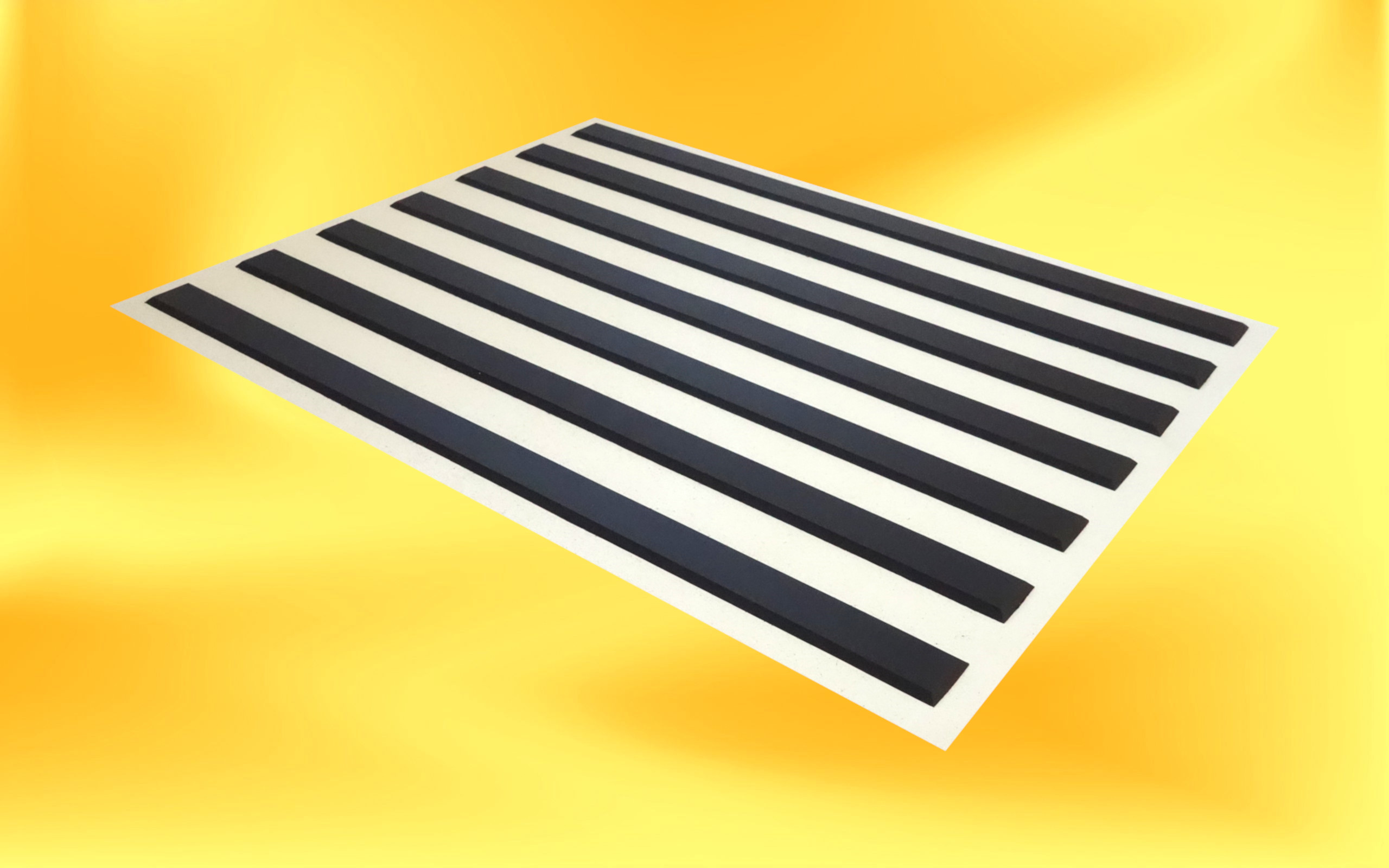

White guiding line with black strips

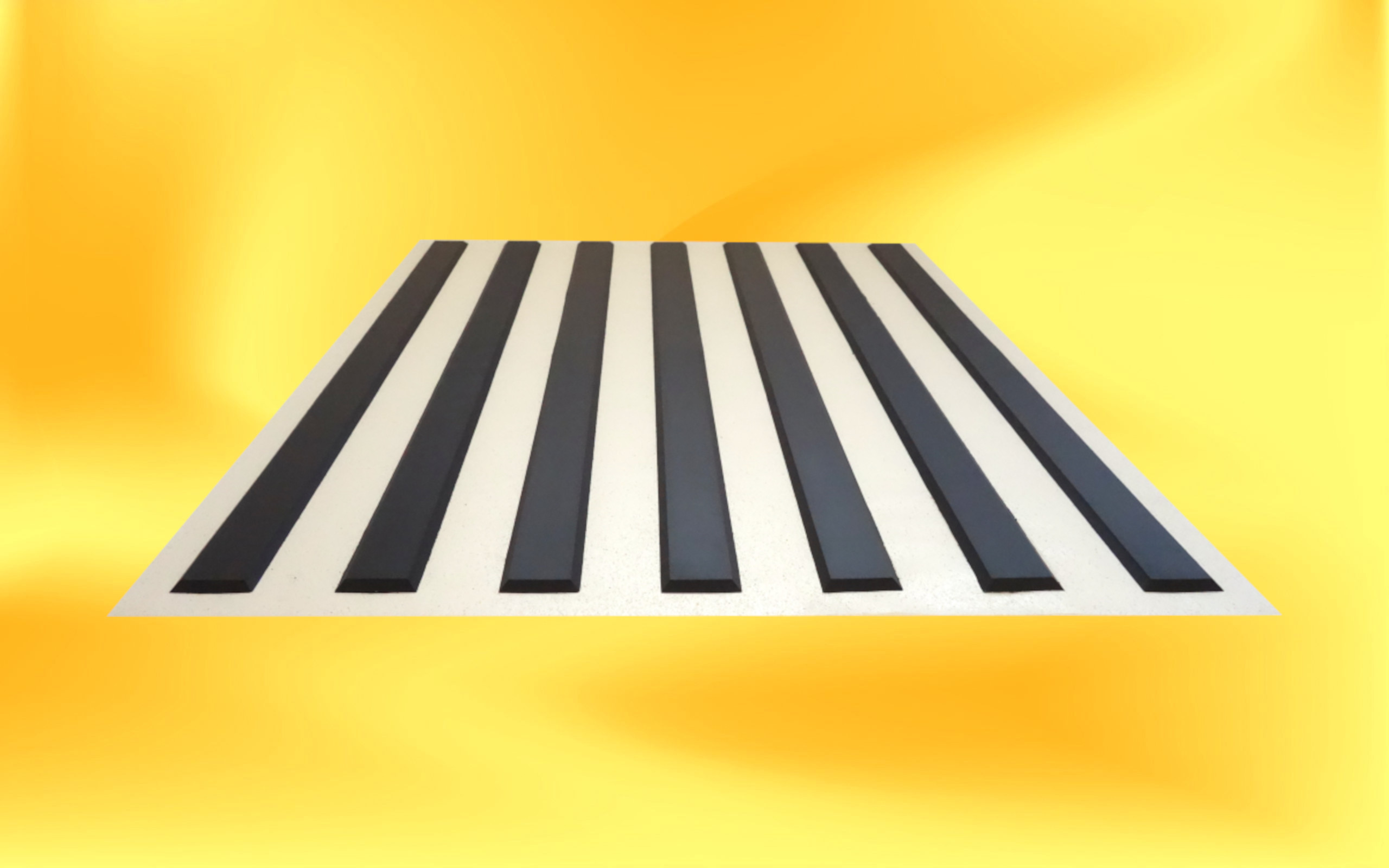

White guiding line with black strips

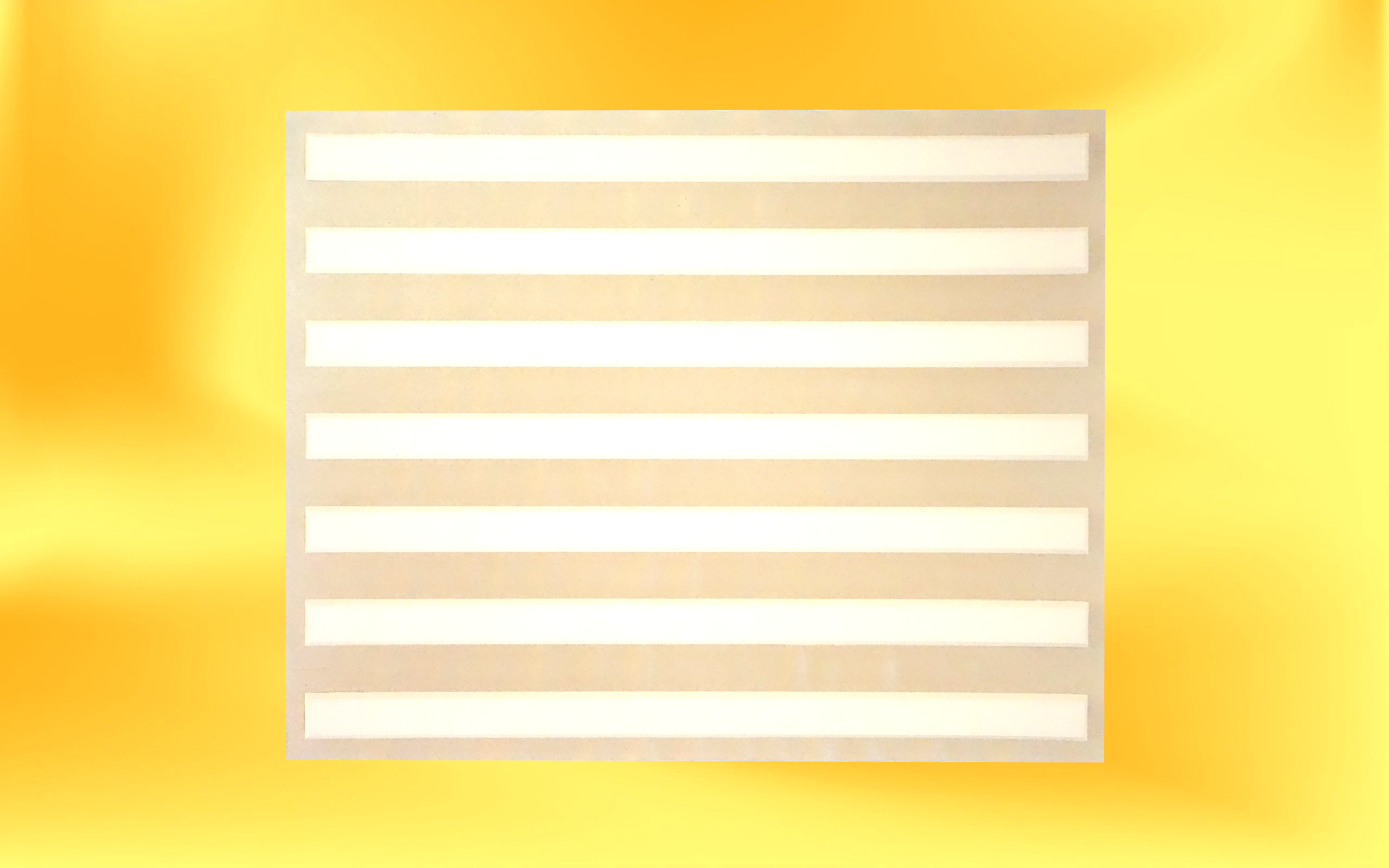

White guiding line with white strips

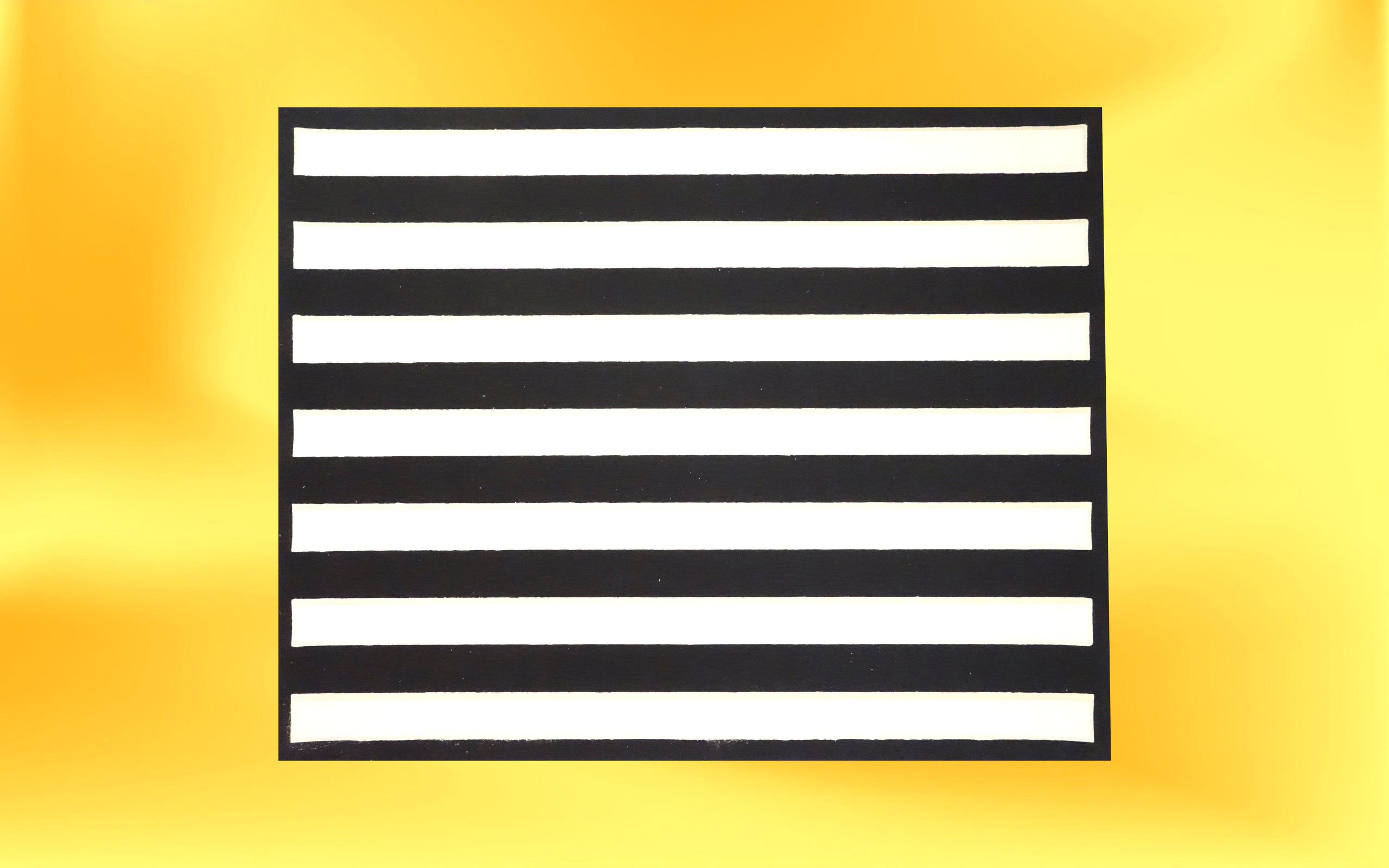

Black guiding line with white strips

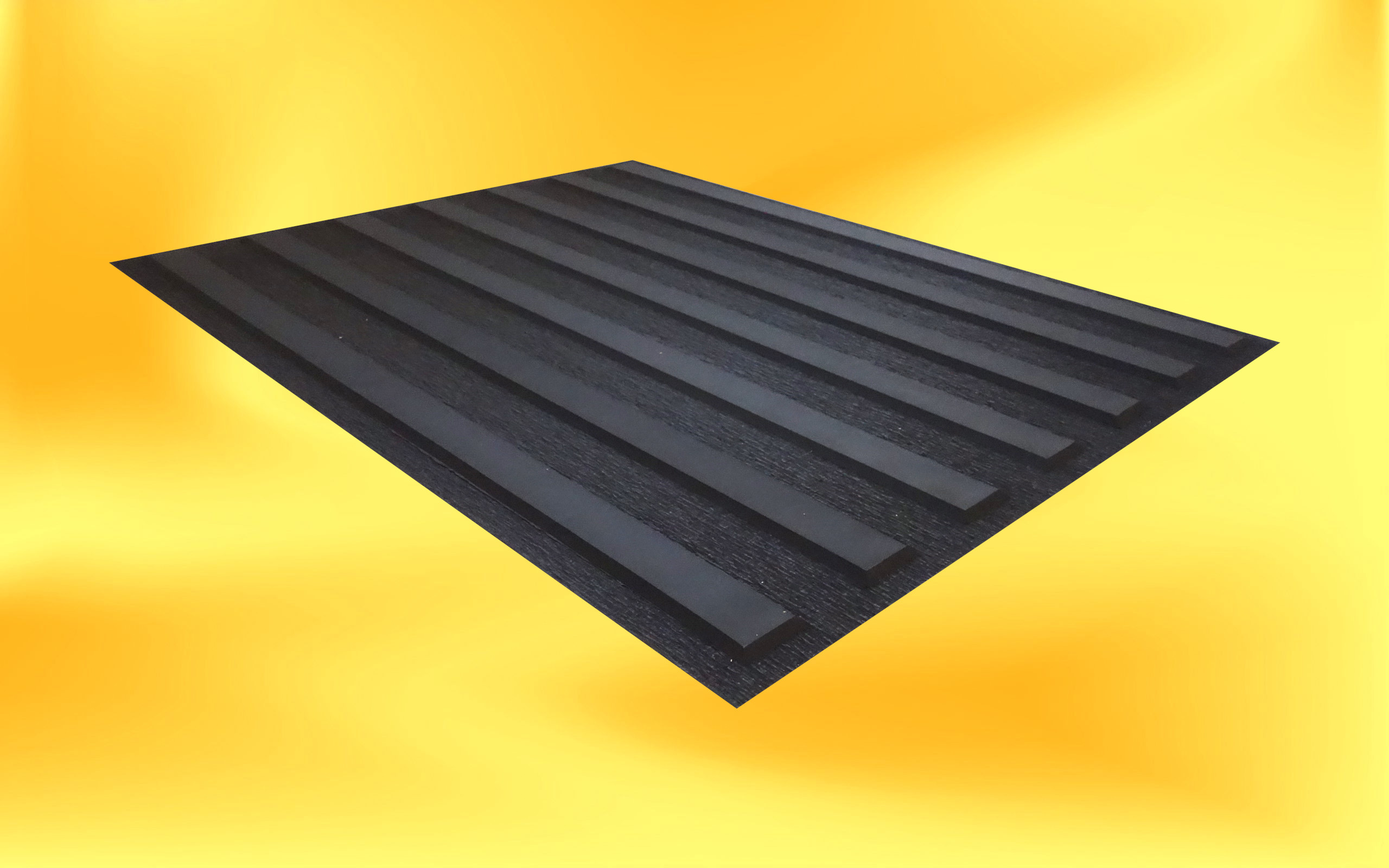

Black guiding line with black strips

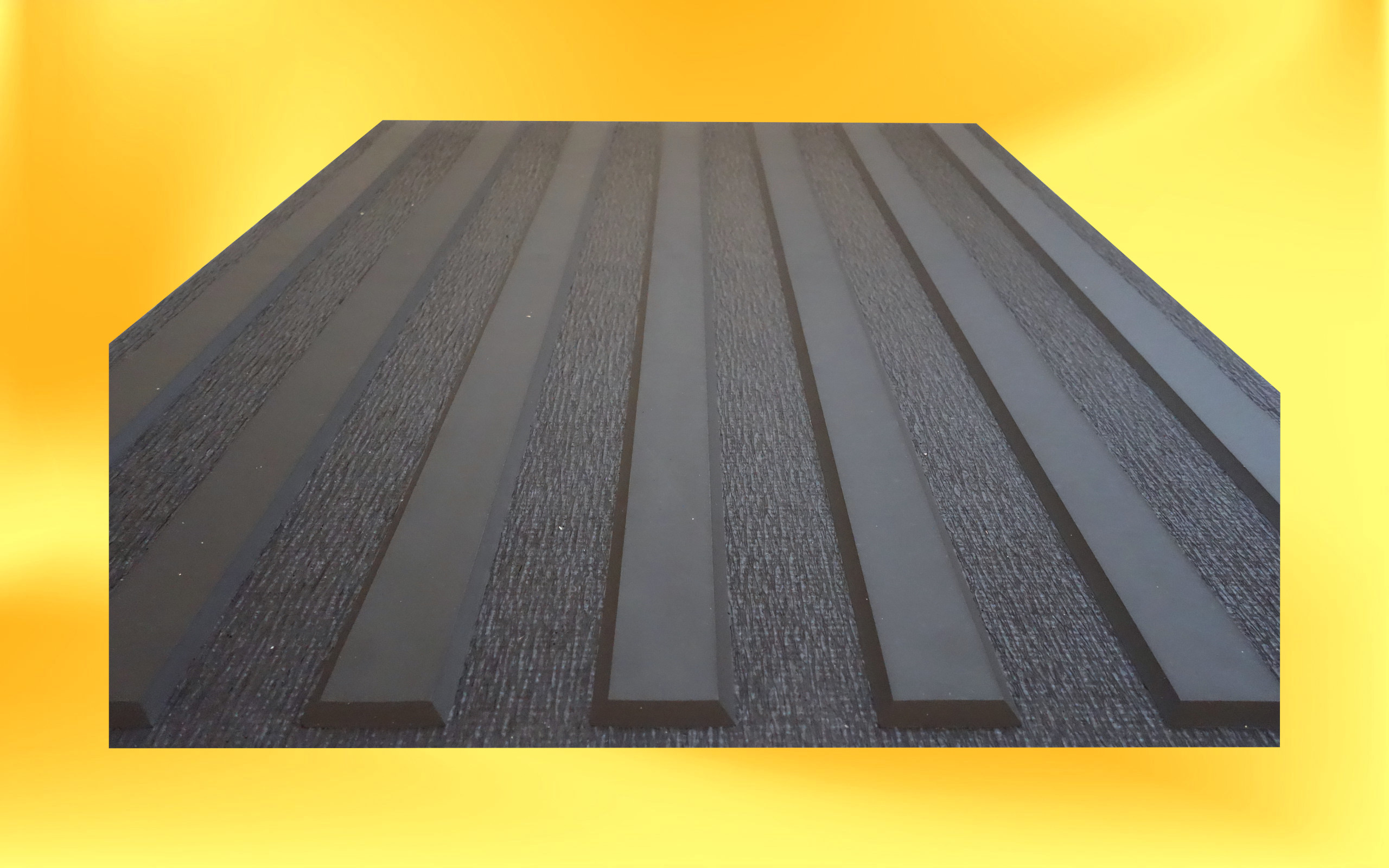

Black guiding line with black strips

Available colour combinations with order numbers:

ME-1201-S   Guiding line 600×476 mm white/white strips, self-adhesive
ME-1202-S   Guiding line 600×476 mm white/black strips, self-adhesive
ME-1203-S   Guiding line 600×476 mm white/yellow strips, self-adhesive
ME-1204-S   Guiding line 600×476 mm white/grey strips, self-adhesive
ME-1205       Guiding line 600×476 mm yellow/white strips
ME-1205-S   Guiding line 600×476 mm yellow/white strips, self-adhesive
ME-1206       Guiding line 600×476 mm yellow/black strips
ME-1206-S   Guiding line 600×476 mm yellow/black strips, self-adhesive
ME-1207       Guiding line 600×476 mm yellow/yellow strips
ME-1207-S   Guiding line 600×476 mm yellow/yellow strips, self-adhesive
ME-1208       Guiding line 600×476 mm yellow/grey strips
ME-1208-S   Guiding line 600×476 mm yellow/grey strips, self-adhesive
ME-1209       Guiding line 600×476 mm black/white strips
ME-1209-S   Guiding line 600×476 mm black/white strips, self-adhesive
ME-1210       Guiding line 600×476 mm black/black strips
ME-1210-S   Guiding line 600×476 mm black/black strips, self-adhesive
