Guiding strips AL-10 grooves


Aluminium guiding strips with grooves – type AL-10

Standard:  In accordance with the international norm ISO 23599/2012.
Dimensions:  280×35 mm or 280×30 mm, either 3+3 grooves (size 280×35 mm) or 2+2 grooves (size 280×30 mm) on the top of the strips.
Material:  AlMgSi, anodized (eloxal coat), polished
Application:  Aluminium guiding strips are made of anodized aluminium (eloxal coat) are produced in various versions, suitable (as a tactile orientation system for blind and visually impaired people) for indoor applications.
Guiding strips with eloxal coat are available in 3 versions:
– with pins (for fixation into pre-drilled holes in floors)
– without pins (for fixation using additional glue like MAMUT or similar)
– self-adhesive with high-quality AFT adhesive tape

Order numbers of all versions are mentioned below the following photos of aluminium guiding lines.

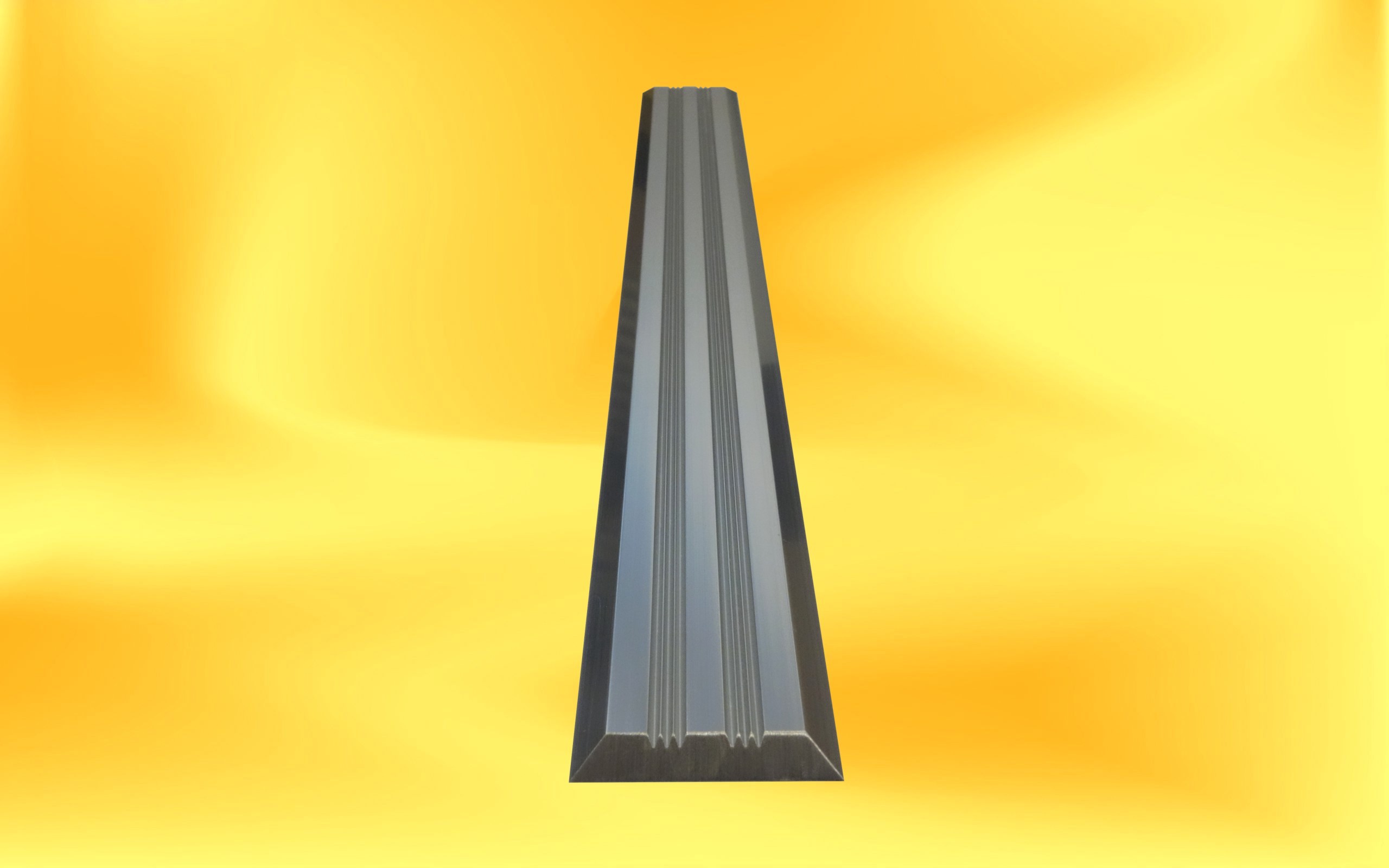

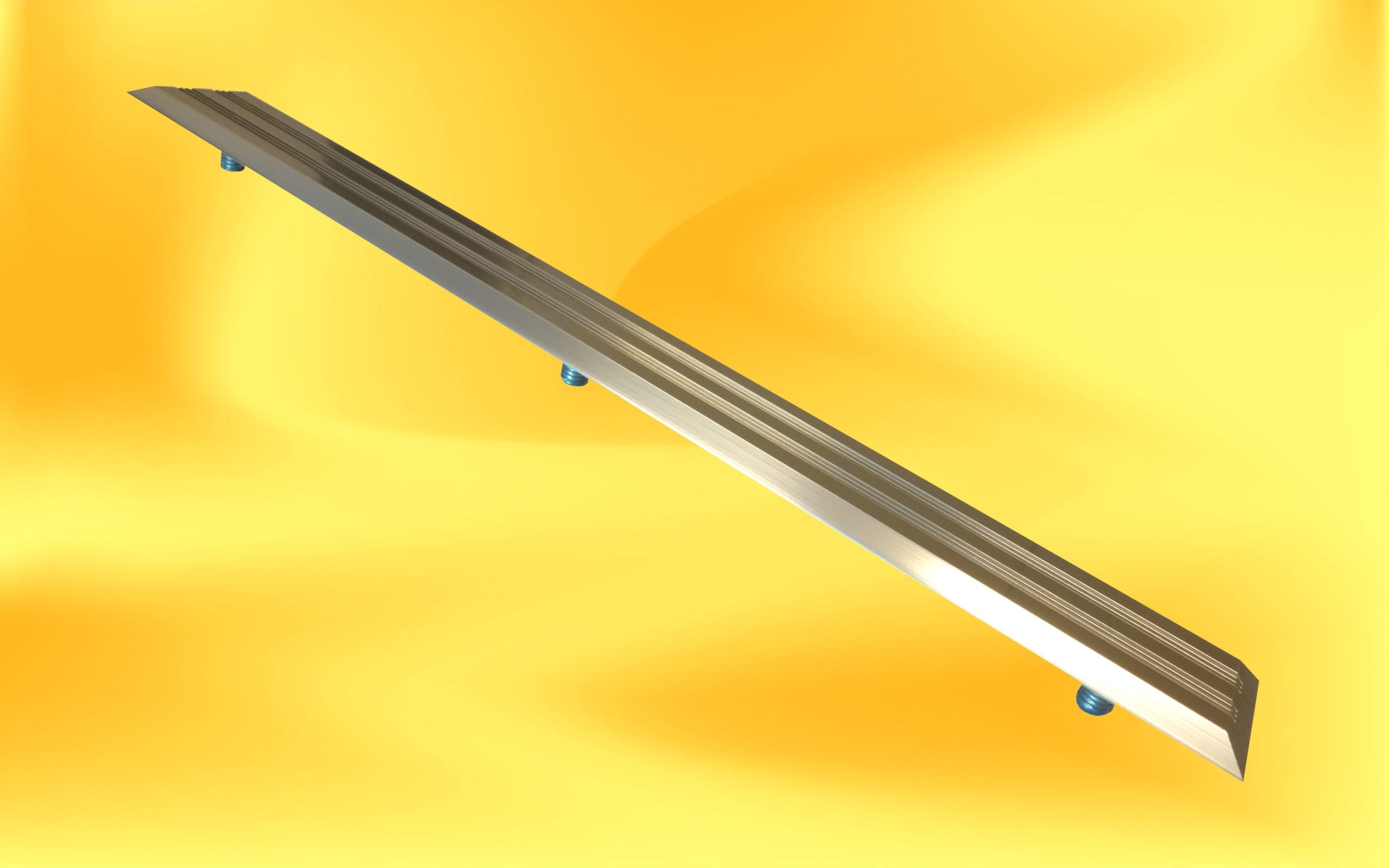

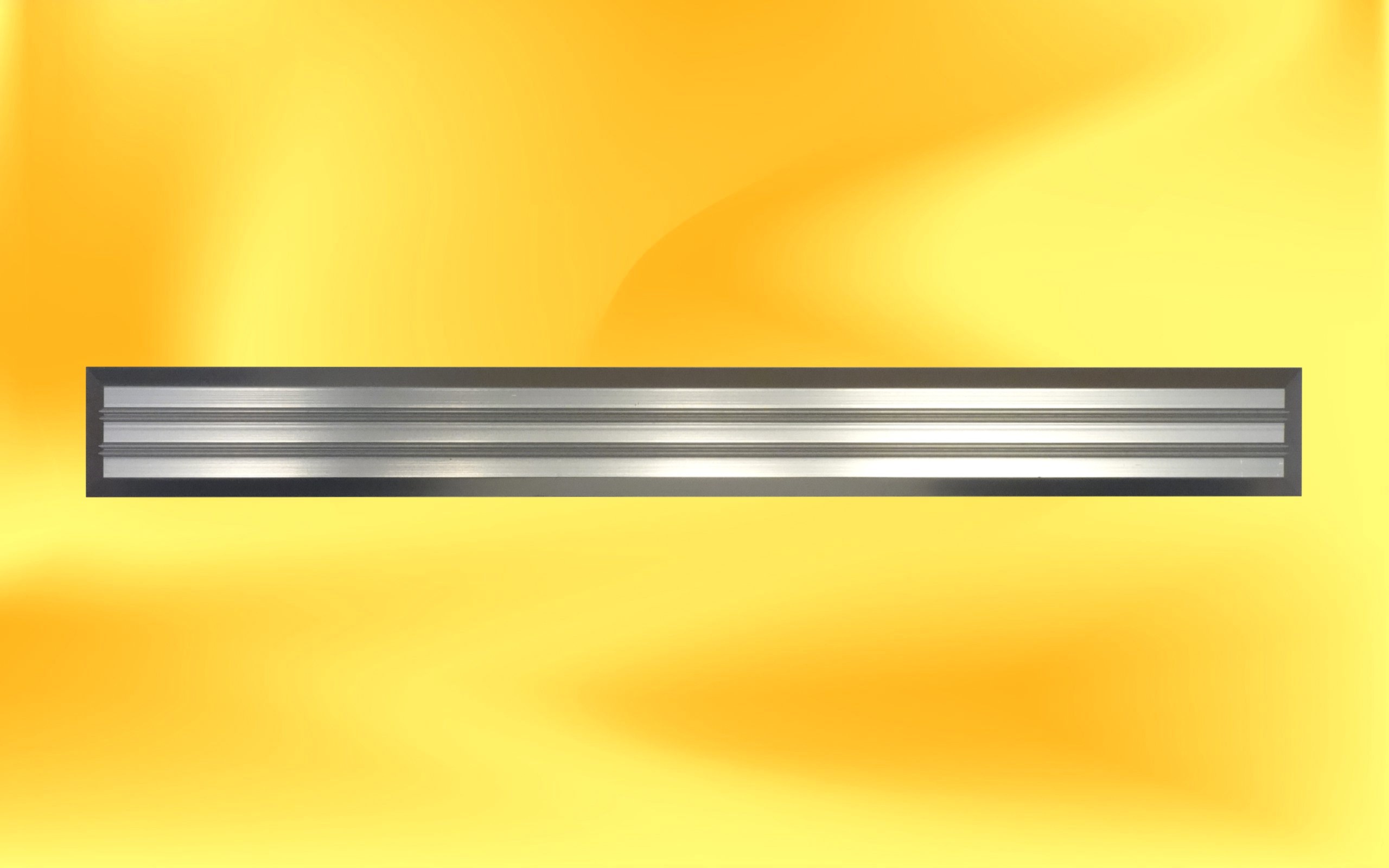

Aluminium guiding stripAluminium guiding strip in detailAluminium guiding strip

Available versions with order numbers:

AL-1001      Guiding strip 280x35x4 mm grooves, with eloxal coat, without pins
AL-1001-P  Guiding strip 280x35x4 mm grooves, with eloxal coat, with pins
AL-1001-S  Guiding strip 280x35x4,5 mm grooves, with eloxal coat, self-adhesive (AFT tape)
AL-1011      Guiding strip 280x30x4 mm grooves, with eloxal coat, without pins
AL-1011-P  Guiding strip 280x30x4 mm grooves, with eloxal coat, with pins
AL-1011-S  Guiding strip 280x30x4,5 mm grooves, with eloxal coat, self-adhesive (AFT tape)
