Guiding strips PL-30


Plastic guiding strips – type PL-30

Surface mounted tactile guiding strips 295×35 mm made in accordance with the international norm ISO 23599/2012 in various versions and colours, suitable (as a tactile orientation system for blind and visually impaired people) for indoor or potentially also for outdoor applications (with pins).
Guiding strips are made of polyurethane/desmopan and are available in 4 versions:
– with pins (for fixation into pre-drilled holes in floors)
– without pins (for fixation using additional glue like MAMUT or similar)
– self-adhesive with thin adhesive tape (suitable for flat and smooth surfaces – linoleum, smooth tiles, carpets)
– self-adhesive with high-quality AFT adhesive tape (suitable for more difficult and frequented surfaces e.g. with some kind of structure, etc.)
Possible colours:  white, black, yellow, grey, red or blue
Order numbers of all versions and colours are mentioned below the following photos of plastic guiding lines.

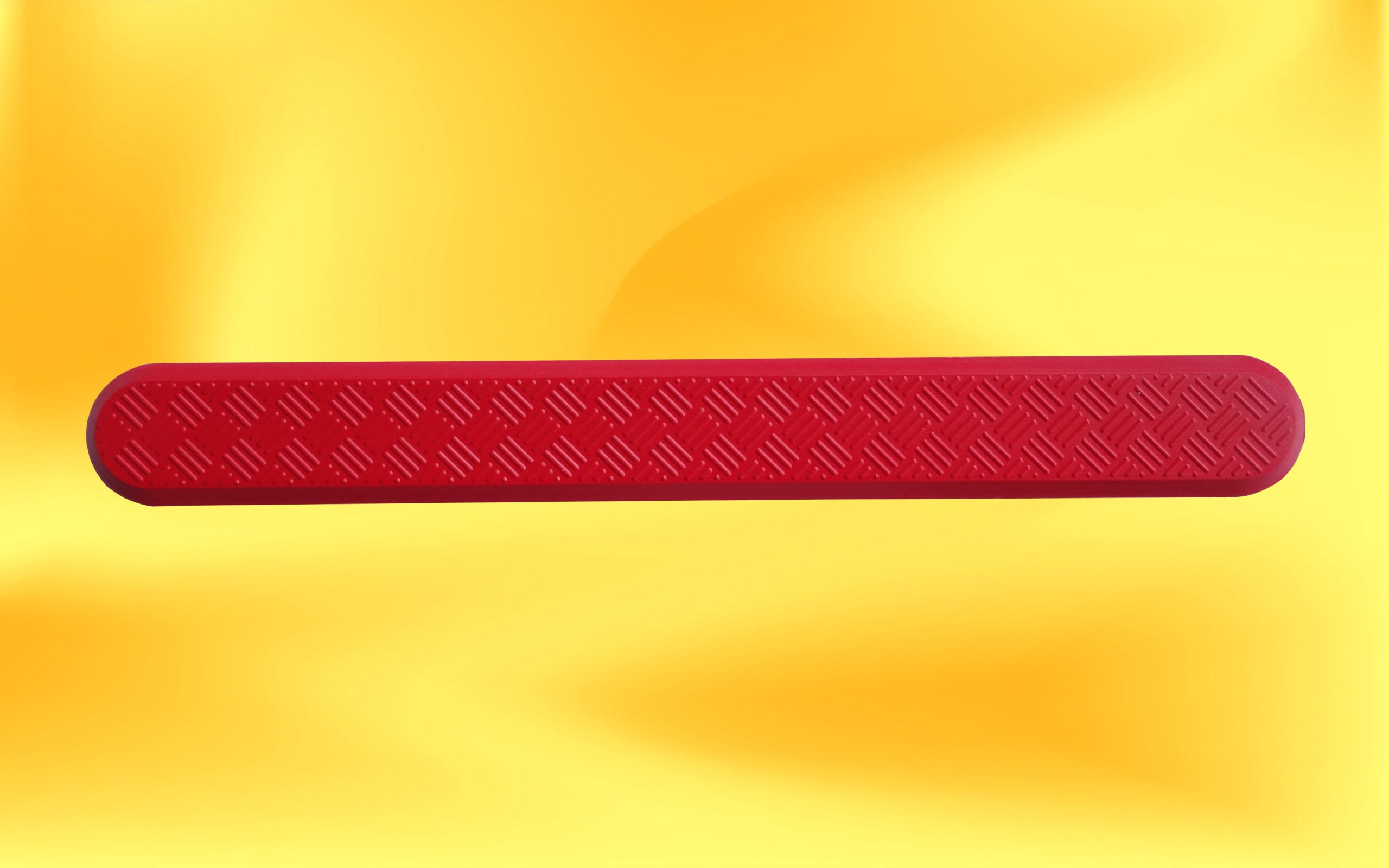

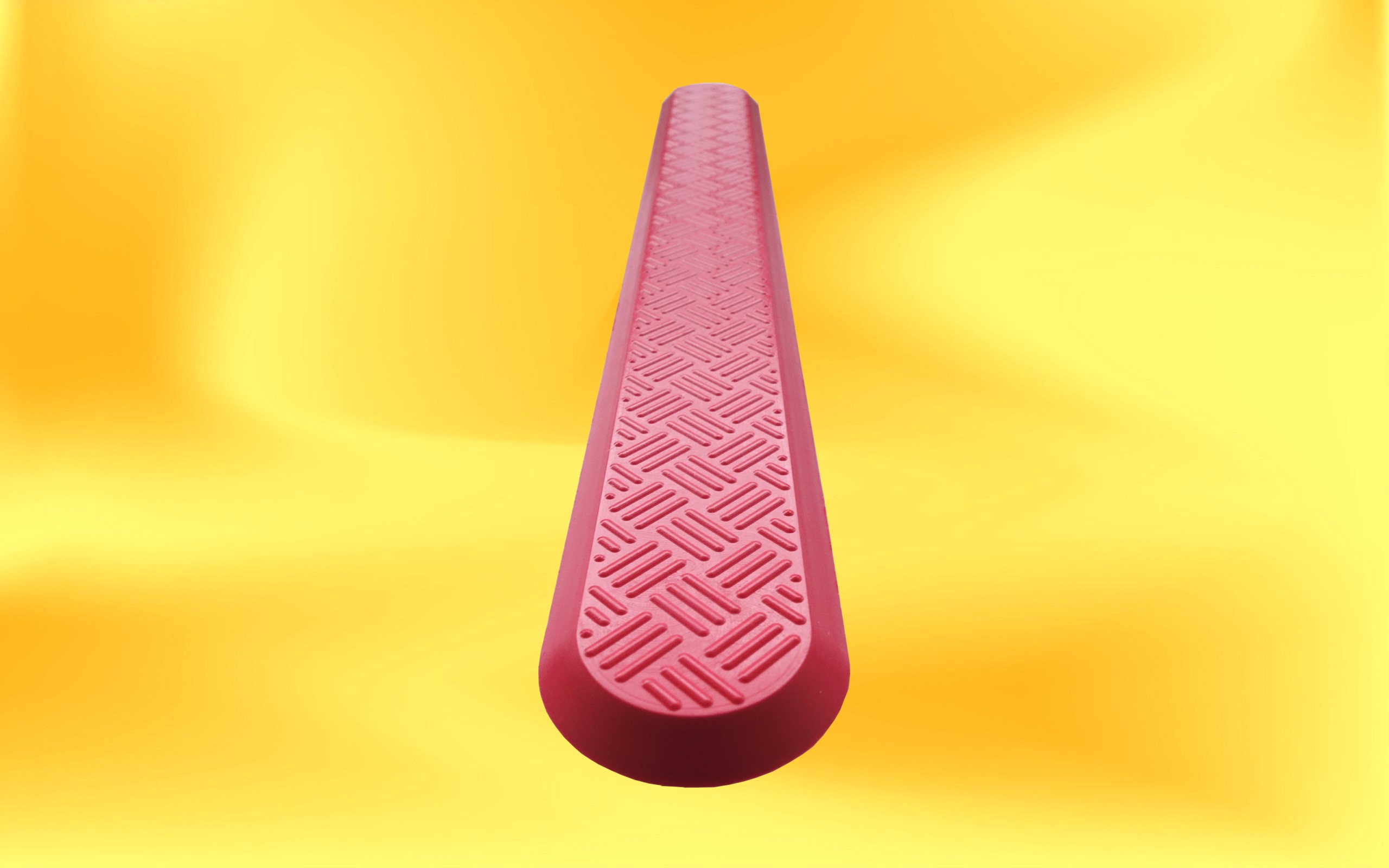

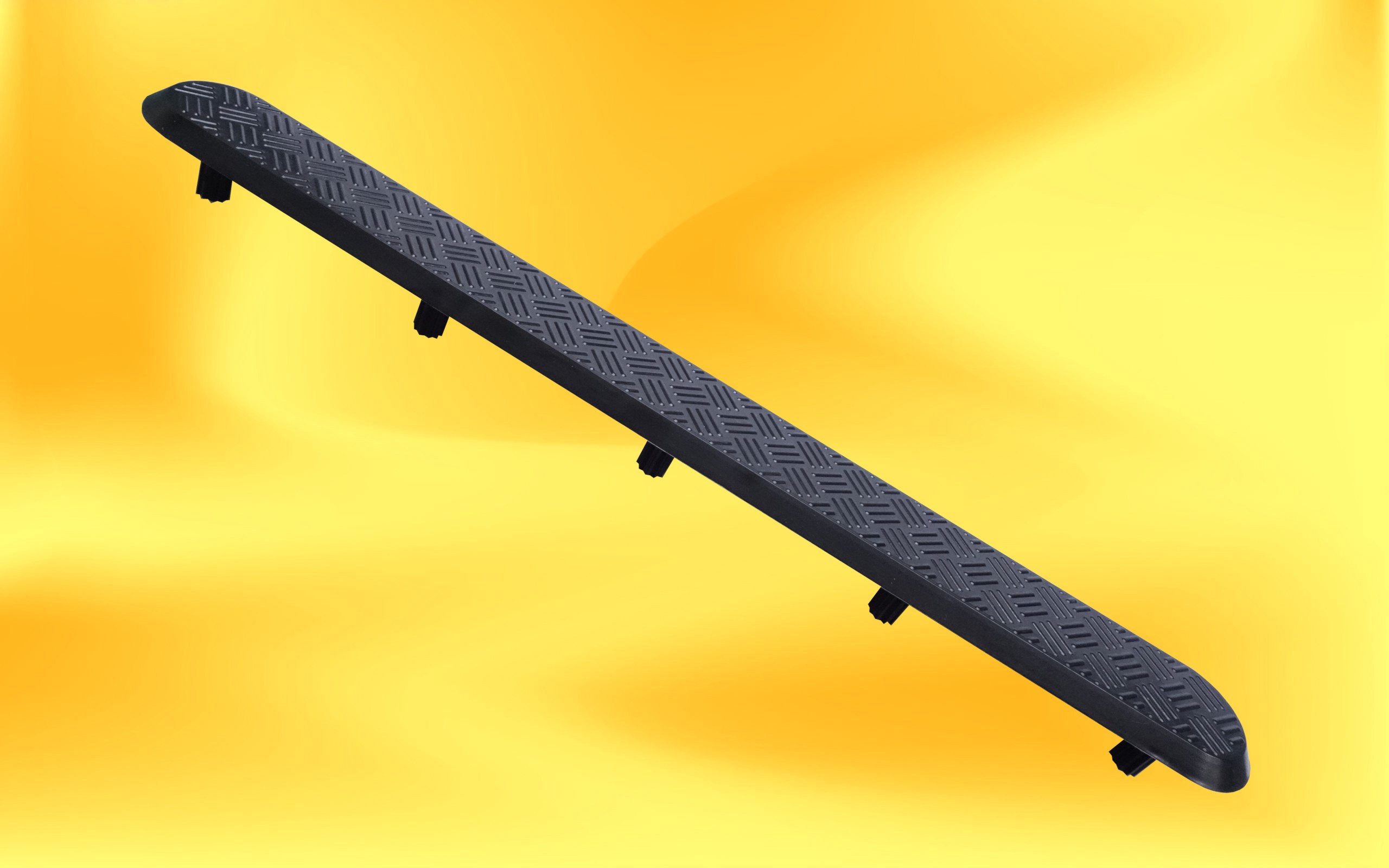

Plastic guiding strips PL-30Plastic guiding strips PL-30Plastic guiding strips PL-30

Possible colour versions with order numbers:

PL-3001         Guiding strip 295x35x5 mm without pins – white
PL-3001-P    Guiding strip 295x35x5 mm with pins – white
PL-3001-S1  Guiding strip 295x35x5,2 mm self-adhesive (thin tape) – white
PL-3001-S2  Guiding strip 295x35x5,5 mm self-adhesive (AFT tape) – white
PL-3002         Guiding strip 295x35x5 mm without pins – black
PL-3002-P    Guiding strip 295x35x5 mm with pins – black
PL-3002-S1  Guiding strip 295x35x5,2 mm self-adhesive (thin tape) – black
PL-3002-S2  Guiding strip 295x35x5,5 mm self-adhesive (AFT tape) – black
PL-3003         Guiding strip 295x35x5 mm without pins – yellow
PL-3003-P    Guiding strip 295x35x5 mm with pins – yellow
PL-3003-S1  Guiding strip 295x35x5,2 mm self-adhesive (thin tape) – yellow
PL-3003-S2  Guiding strip 295x35x5,5 mm self-adhesive (AFT tape) – yellow
PL-3004         Guiding strip 295x35x5 mm without pins – grey
PL-3004-P    Guiding strip 295x35x5 mm with pins – grey
PL-3004-S1  Guiding strip 295x35x5,2 mm self-adhesive (thin tape) – grey
PL-3004-S2  Guiding strip 295x35x5,5 mm self-adhesive (AFT tape) – grey
PL-3005         Guiding strip 295x35x5 mm without pins – red
PL-3005-P    Guiding strip 295x35x5 mm with pins – red
PL-3005-S1  Guiding strip 295x35x5,2 mm self-adhesive (thin tape) – red
PL-3005-S2  Guiding strip 295x35x5,5 mm self-adhesive (AFT tape) – red
PL-3006         Guiding strip 295x35x5 mm without pins – blue
PL-3006-P    Guiding strip 295x35x5 mm with pins – blue
PL-3006-S1  Guiding strip 295x35x5,2 mm self-adhesive (thin tape) – blue
PL-3006-S2  Guiding strip 295x35x5,5 mm self-adhesive (AFT tape) – blue
