Tactile studs ST-71 diamond


Stainless steel tactile paving studs with diamond pattern (MILLED) – type ST-71

Surface mounted warning studs made of stainless steel AISI 316 are produced in format Ø35/25 mm.
They are made in accordance with the international norm ISO 23599/2012 in various versions and are suitable (as a tactile orientation system for blind and visually impaired people) for indoor or also for outdoor applications (version with pins).
The top surface has diamond pattern (milled).
Diamond tactile studs (tactile truncated domes) are available in 3 versions:
– with pin (for fixation into pre-drilled holes in floors)
– without pin (for fixation using additional glue like MAMUT or similar)
– self-adhesive with high-quality AFT adhesive tape (for indoor use only)

Order numbers of all versions are mentioned below the following photos of stainless steel tactile studs.

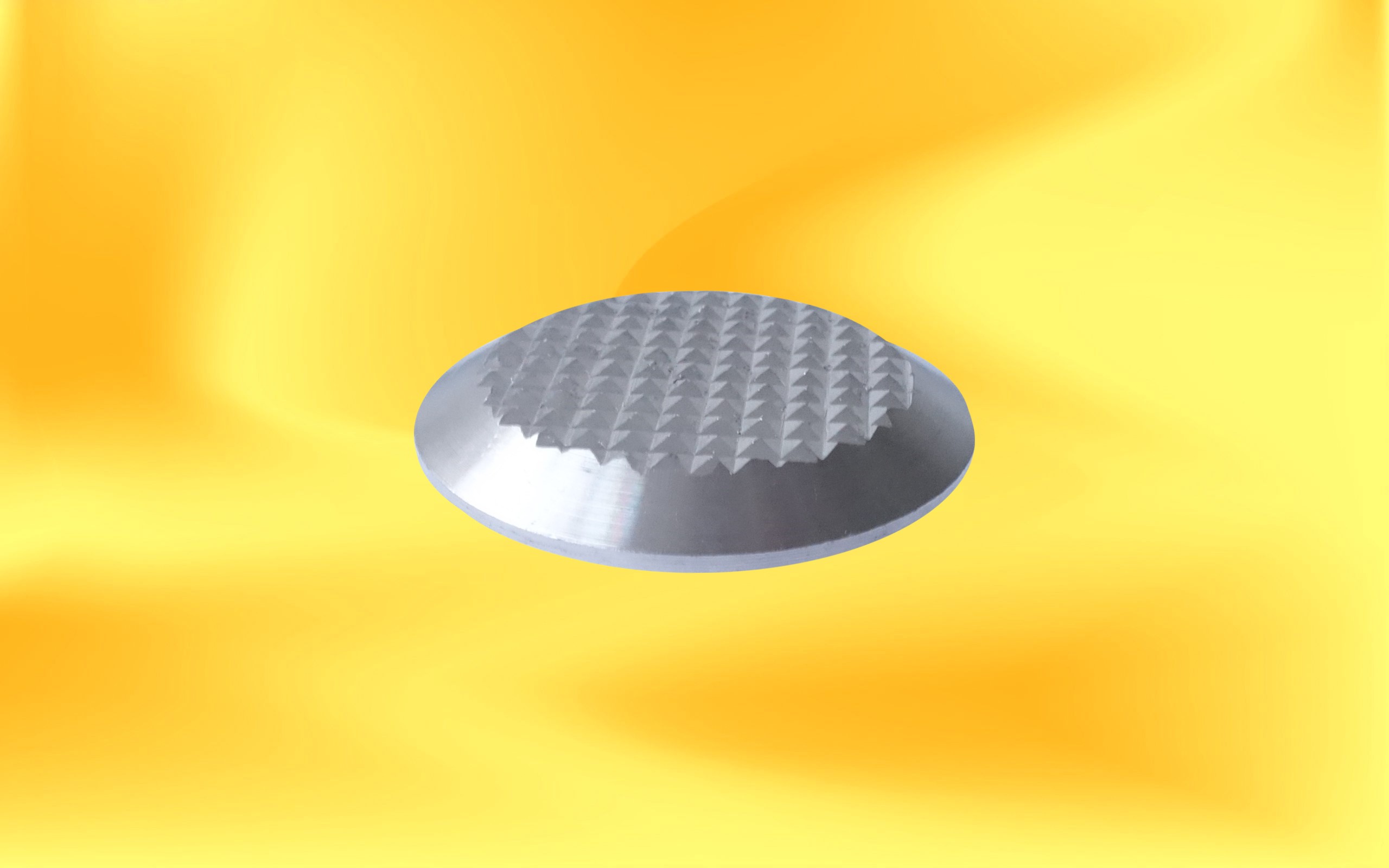

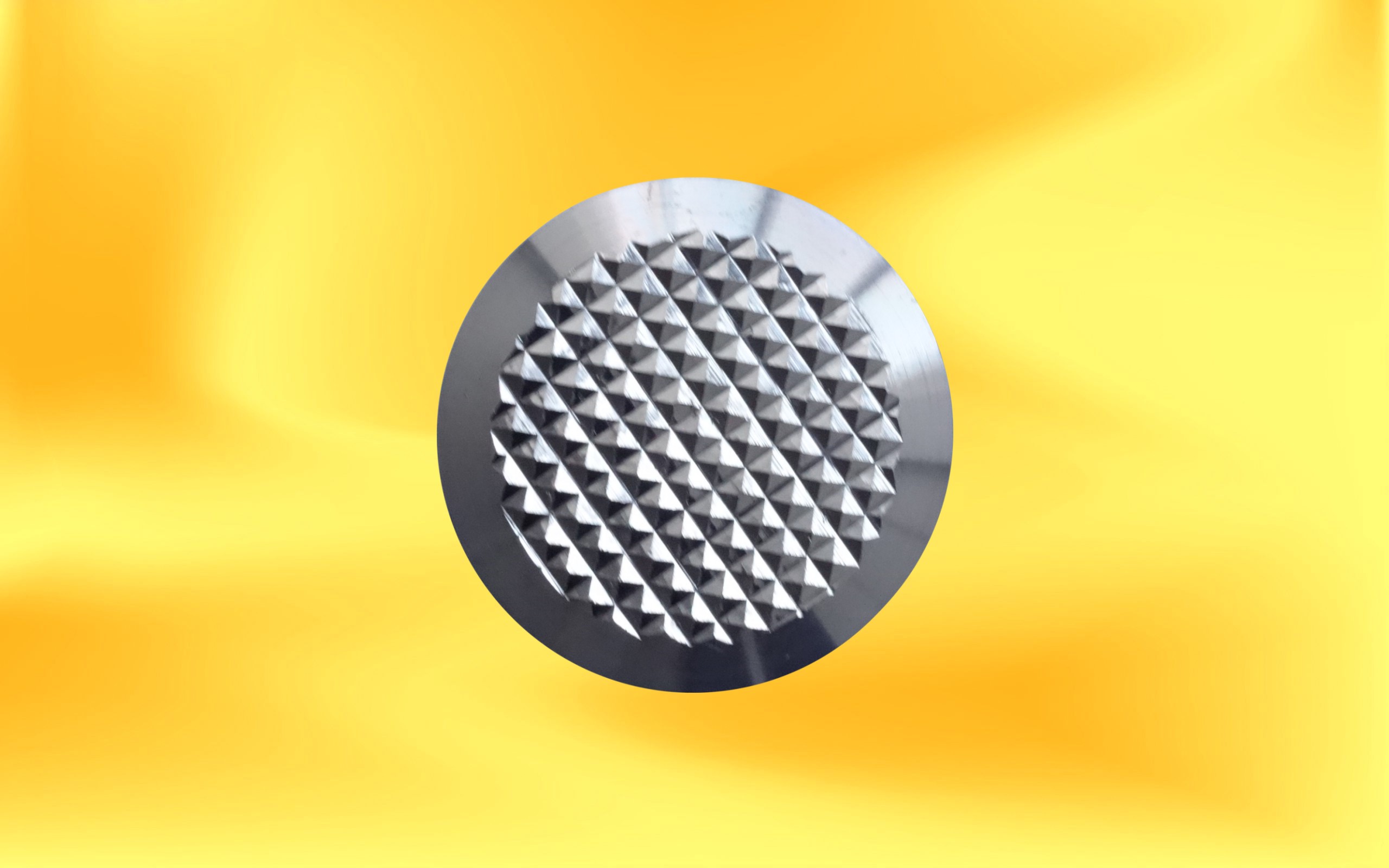

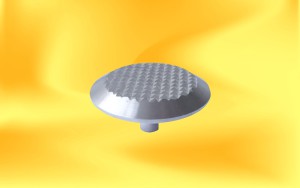

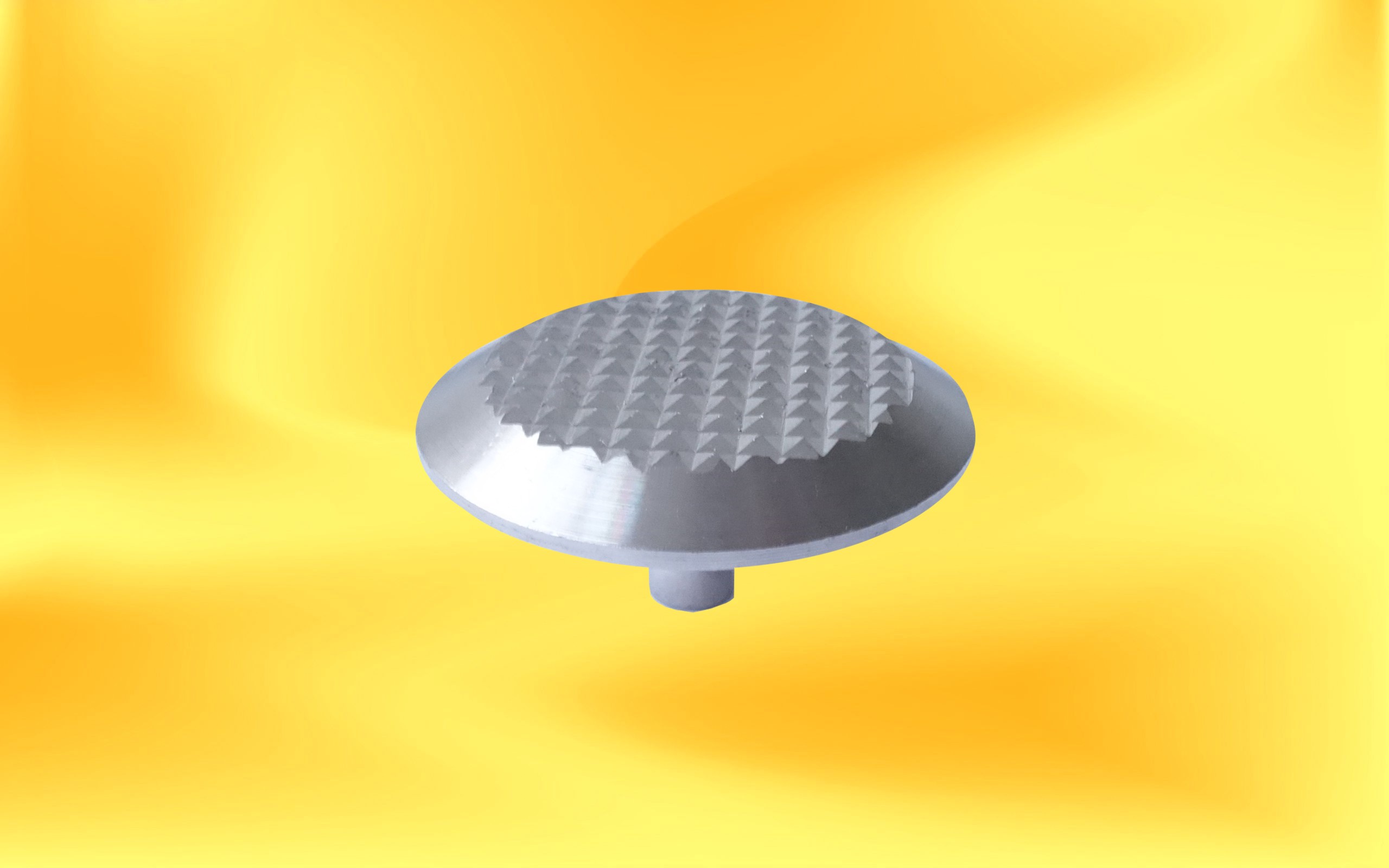

Tactile studs ST-71 diamondTactile studs ST-71 diamondTactile studs ST-71 diamond

Available versions with order numbers:

ST-7101      Tactile stud Ø35/25×5 mm (AISI 316) diamond surface, MILLED, without pin
ST-7101-P  Tactile stud Ø35/25×5 mm (AISI 316) diamond surface, MILLED, with pin
ST-7101-S  Tactile stud Ø35/25×5,5 mm (AISI 316) diamond surface, MILLED, self-adhesive (AFT tape)
