Tactile studs ST-52 circular


Stainless steel tactile paving studs with circular pattern — type ST-52

Surface mounted warning studs made of stainless steel are produced in two formats:  Ø35 mm or Ø25 mm
They are made in accordance with the international norm ISO 23599/2012 and/or the German norm DIN 32984 in various versions and are suitable (as a tactile orientation system for blind and visually impaired people) for indoor or also for outdoor applications (studs made of stainless steel AISI 316 with pins).

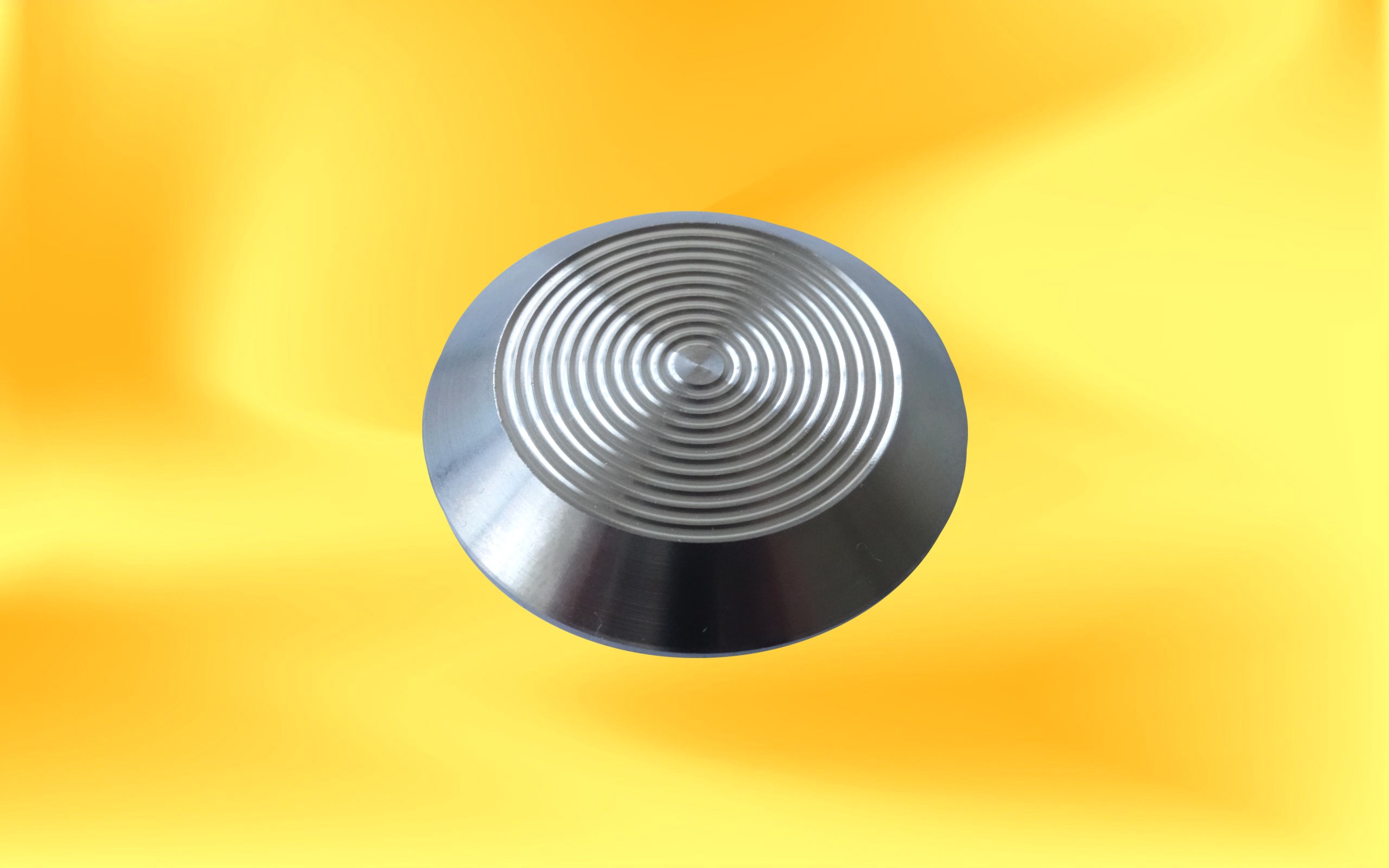

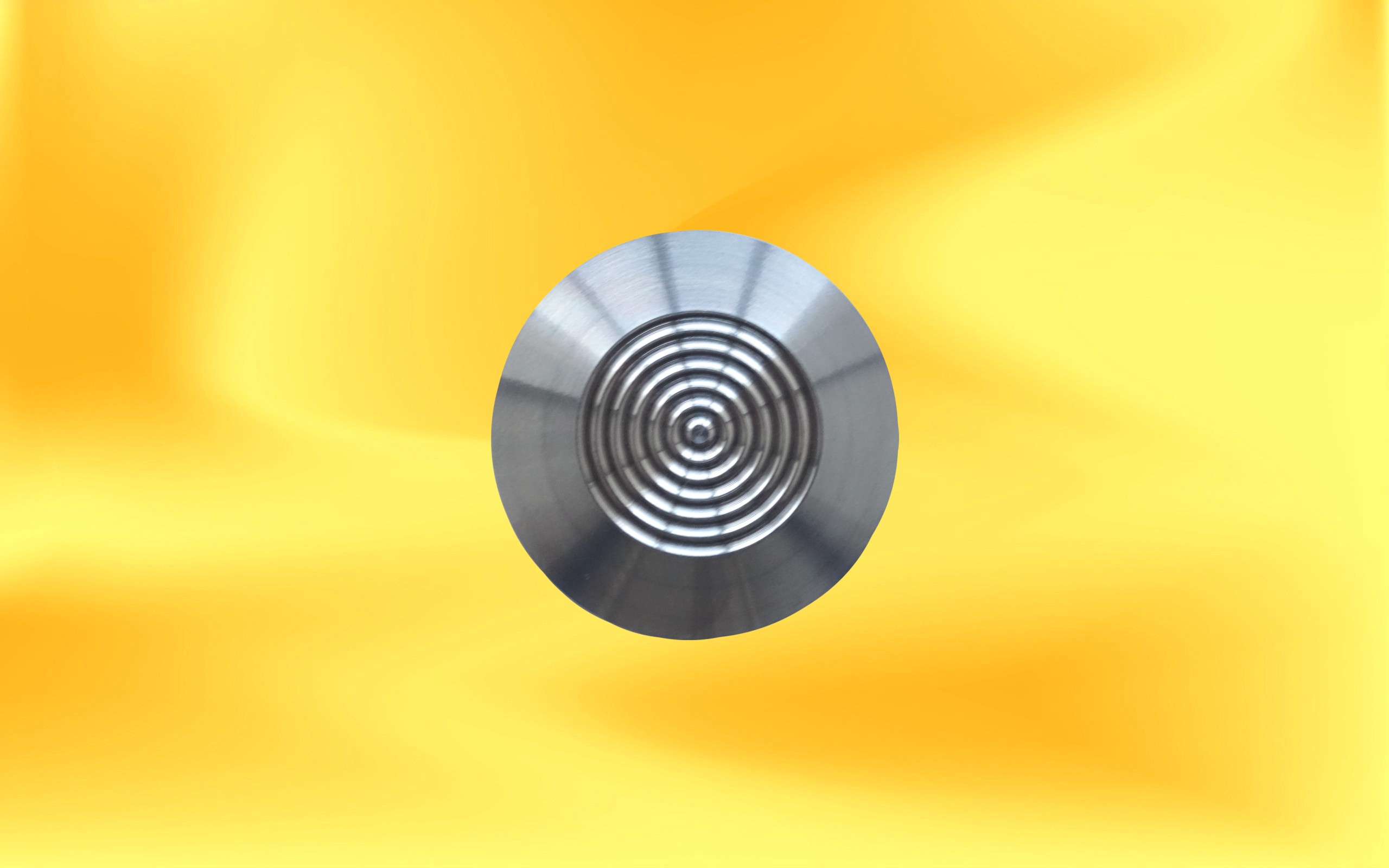

The top surface has circular pattern. There are two material options:
……AISI 304 stainless steel (1.4301) — for indoor use
……AISI 316 stainless steel (1.4401) — for indoor and outdoor use
Tactile studs (tactile truncated domes) are available in 3 versions:

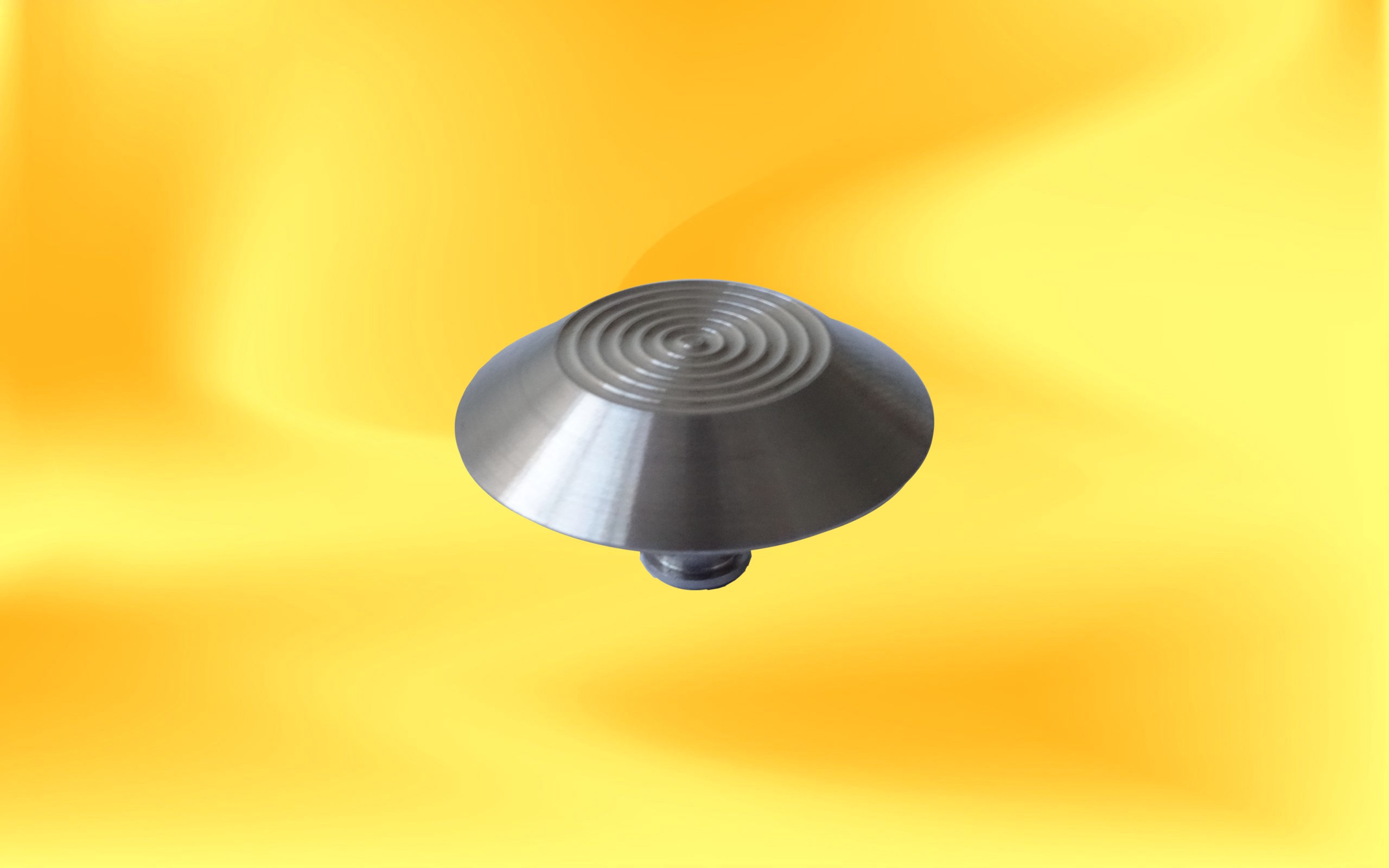

— with pin (for fixation into pre-drilled holes in floors)
— without pin (for fixation using additional glue like MAMUT or similar)
— self-adhesive with high-quality AFT adhesive tape (for indoor use only)

Order numbers of all versions are mentioned below the following photos of stainless steel tactile studs.















Available versions with order numbers:

ST-5201      Tactile stud Ø35/25×4 mm (AISI 304) circular surface MILLED, without pin
ST-5201-P  Tactile stud Ø35/25×4 mm (AISI 304) circular surface MILLED, with pin
ST-5201-S  Tactile stud Ø35/25×4,5 mm (AISI 304) circular surface MILLED, self-adhesive (AFT tape)
ST-5202      Tactile stud Ø25/15×4 mm (AISI 304) circular surface MILLED, without pin
ST-5202-P  Tactile stud Ø25/15×4 mm (AISI 304) circular surface MILLED, with pin
ST-5202-S  Tactile stud Ø25/15×4,5 mm (AISI 304) circular surface MILLED, self-adhesive (AFT tape)

ST-5251      Tactile stud Ø35/25×4 mm (AISI 316) circular surface MILLED, without pin
ST-5251-P  Tactile stud Ø35/25×4 mm (AISI 316) circular surface MILLED, with pin
ST-5251-S  Tactile stud Ø35/25×4,5 mm (AISI 316) circular surface MILLED, self-adhesive (AFT tape)
ST-5252      Tactile stud Ø25/15×4 mm (AISI 316) circular surface MILLED, without pin
ST-5252-P Tactile stud Ø25/15×4 mm (AISI 316) circular surface MILLED, with pin
ST-5252-S Tactile stud Ø25/15×4,5 mm (AISI 316) circular surface MILLED, self-adhesive (AFT tape)
