Strips PL-11 self-adhesive


Self-adhesive plastic guiding strips (plastic tactile bars) – type PL-11

Surface mounted tactile guiding strips 280×30 mm made in accordance with the international norm ISO 23599/2012 in various versions and colours, suitable (as a tactile orientation system for blind and visually impaired people) for indoor applications.
Guiding strips are made of polyurethane/desmopan and are available in 2 versions:
– self-adhesive with thin adhesive tape (suitable for flat and smooth surfaces – linoleum, smooth tiles, carpets)
– self-adhesive with high-quality AFT adhesive tape (suitable for more difficult and frequented surfaces e.g. with some kind of structure, etc.)
Possible colours:  white, black, yellow, grey or red
Order numbers of all versions and colours are mentioned below the following photos of plastic guiding lines.

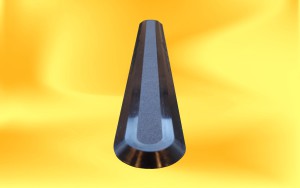

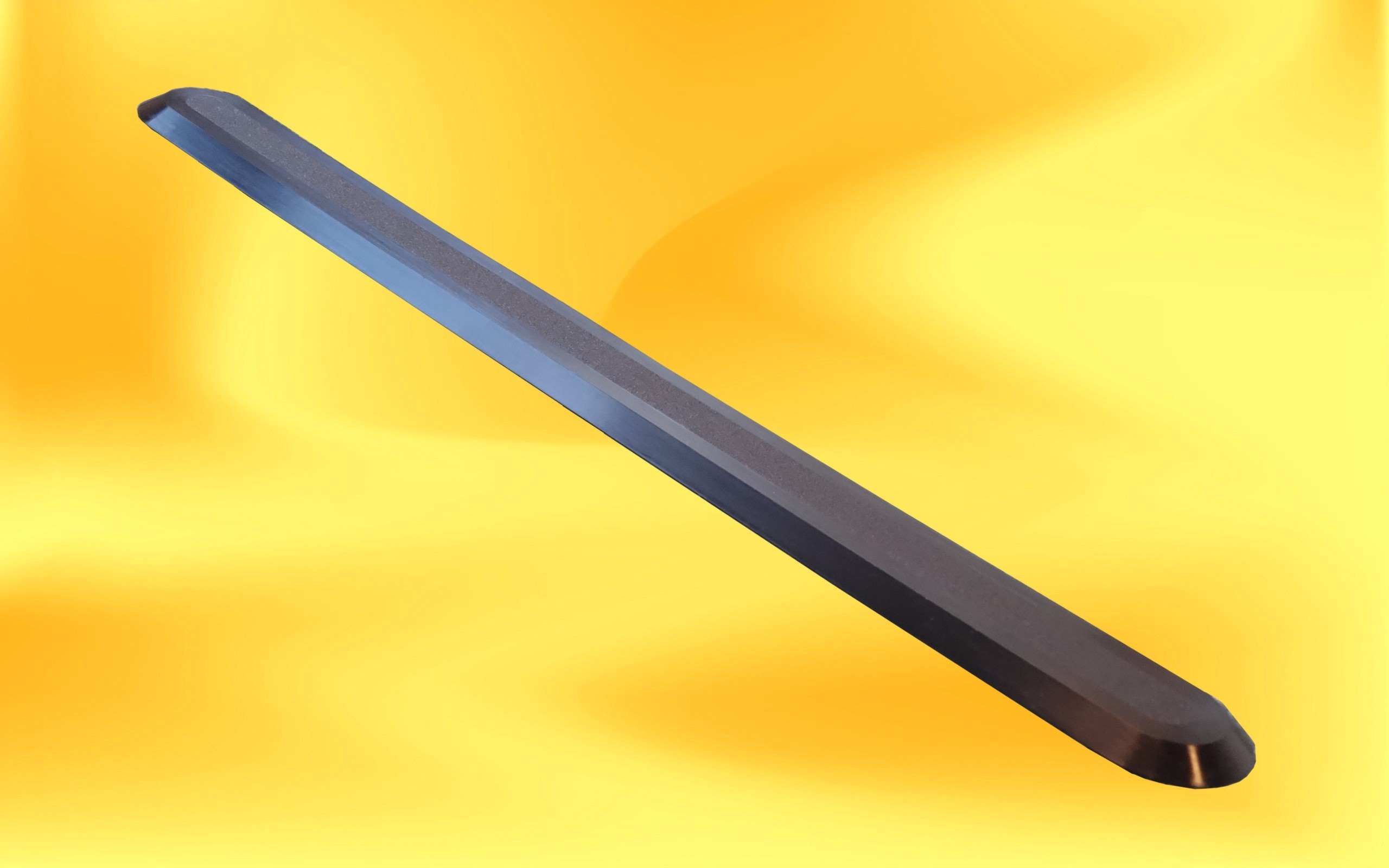

Tactile barsTactile BarsPlast linie 30 - 05















Possible colour versions with order numbers:

PL-1101-S  Guiding strip 280x30x4,2 mm self-adhesive (thin tape) – white
PL-1102-S  Guiding strip 280x30x4,2 mm self-adhesive (thin tape) – black
PL-1103-S  Guiding strip 280x30x4,2 mm self-adhesive (thin tape) – yellow
PL-1104-S  Guiding strip 280x30x4,2 mm self-adhesive (thin tape) – grey
PL-1105-S  Guiding strip 280x30x4,2 mm self-adhesive (thin tape) – red

PL-1151-S  Guiding strip 280x30x4,5 mm self-adhesive (AFT tape) – white
PL-1152-S  Guiding strip 280x30x4,5 mm self-adhesive (AFT tape) – black
PL-1153-S  Guiding strip 280x30x4,5 mm self-adhesive (AFT tape) – yellow
PL-1154-S  Guiding strip 280x30x4,5 mm self-adhesive (AFT tape) – grey
PL-1155-S  Guiding strip 280x30x4,5 mm self-adhesive (AFT tape) – red
