Tactile studs AL-22


Aluminium tactile paving studs with INTEGRATED anti-slip tape — type AL-22

Surface mounted warning studs made of aluminium are produced in two formats:  Ø35 mm or Ø25 mm
They are made in accordance with the international norm ISO 23599/2012 and/or the German norm DIN 32984 in various versions and are suitable (as a tactile orientation system for blind and visually impaired people) for indoor applications.
There is non-abrasive slip-resistant tape (colour options) integrated in the top part of the studs, mainly for decorative purposes.
Tactile studs (tactile truncated domes) are made of AlMgSi and are available in 3 versions:
— with pin (for fixation into pre-drilled holes in floors)
— without pin (for fixation using additional glue like MAMUT or similar)
— self-adhesive with high-quality AFT adhesive tape

Order numbers of all versions are mentioned below the following photos of aluminium tactile studs.

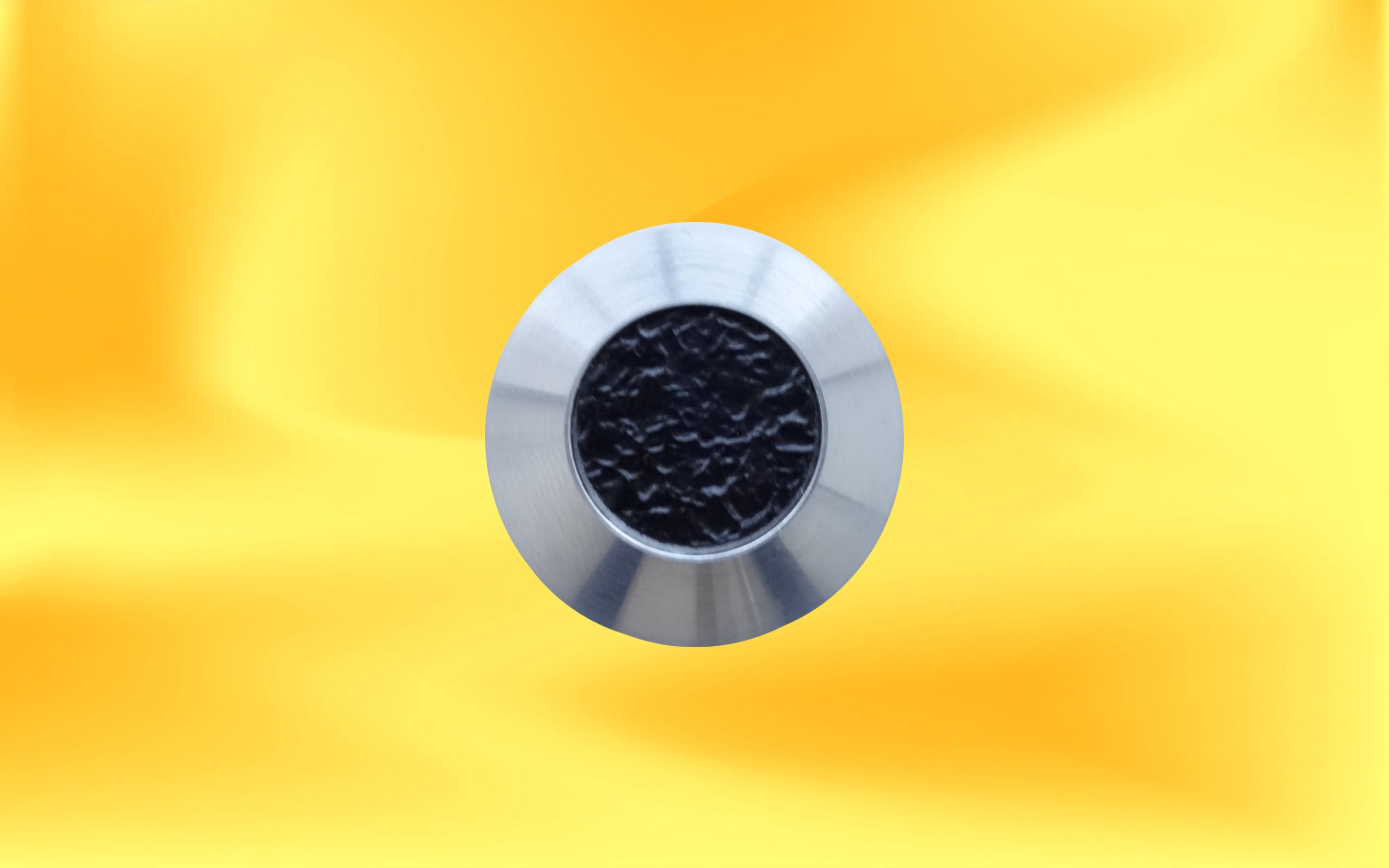

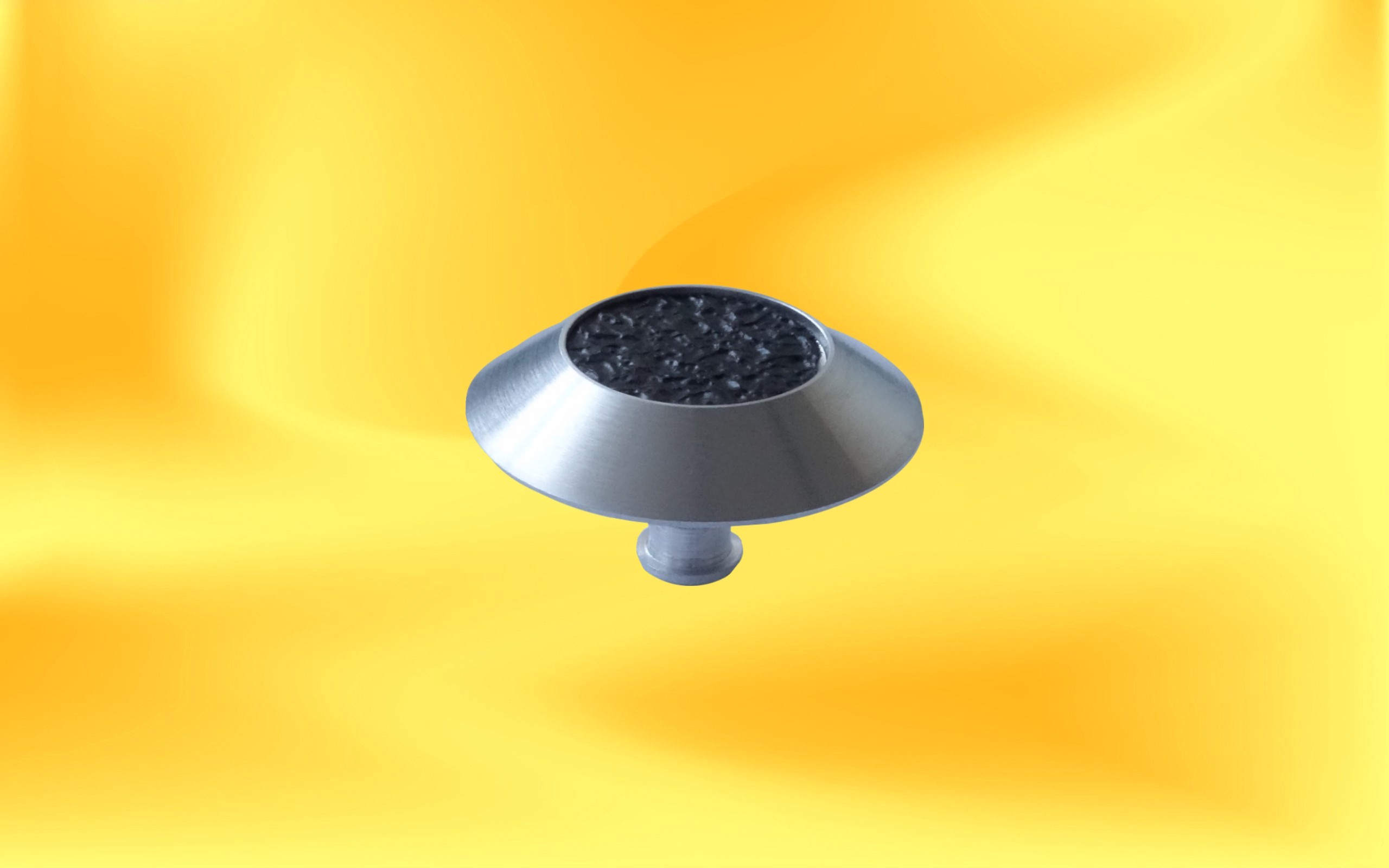

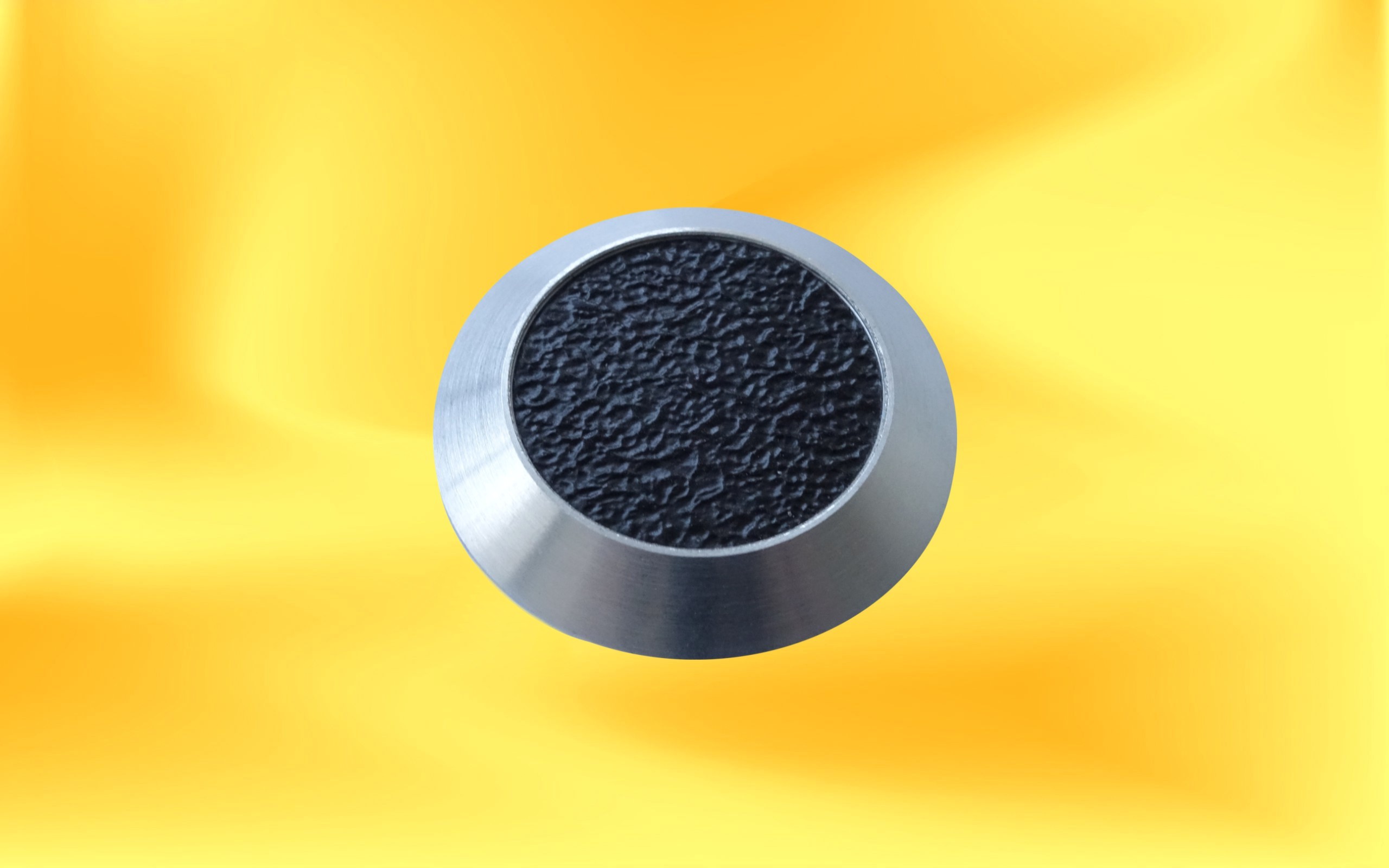

Tactile studs AL-22Tactile studs AL-22Tactile studs AL-22

Available versions with order numbers:

AL-2201      Tactile stud Ø35/25×4 mm with anti-slip tape (integrated), without pin
AL-2201-P  Tactile stud Ø35/25×4 mm with anti-slip tape (integrated), with pin
AL-2201-S  Tactile stud Ø35/25×4,5 mm with anti-slip tape (integrated), self-adhesive (AFT tape)
AL-2211      Tactile stud Ø25/15×4 mm with anti-slip tape (integrated), without pin
AL-2211-P  Tactile stud Ø25/15×4 mm with anti-slip tape (integrated), with pin
AL-2211-S  Tactile stud Ø25/15×4,5 mm with anti-slip tape (integrated), self-adhesive (AFT tape)
