Hendi FriendlyOrientation systems for the blind
and visually impaired

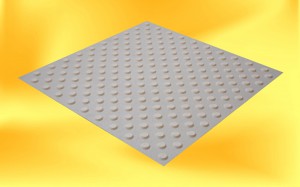

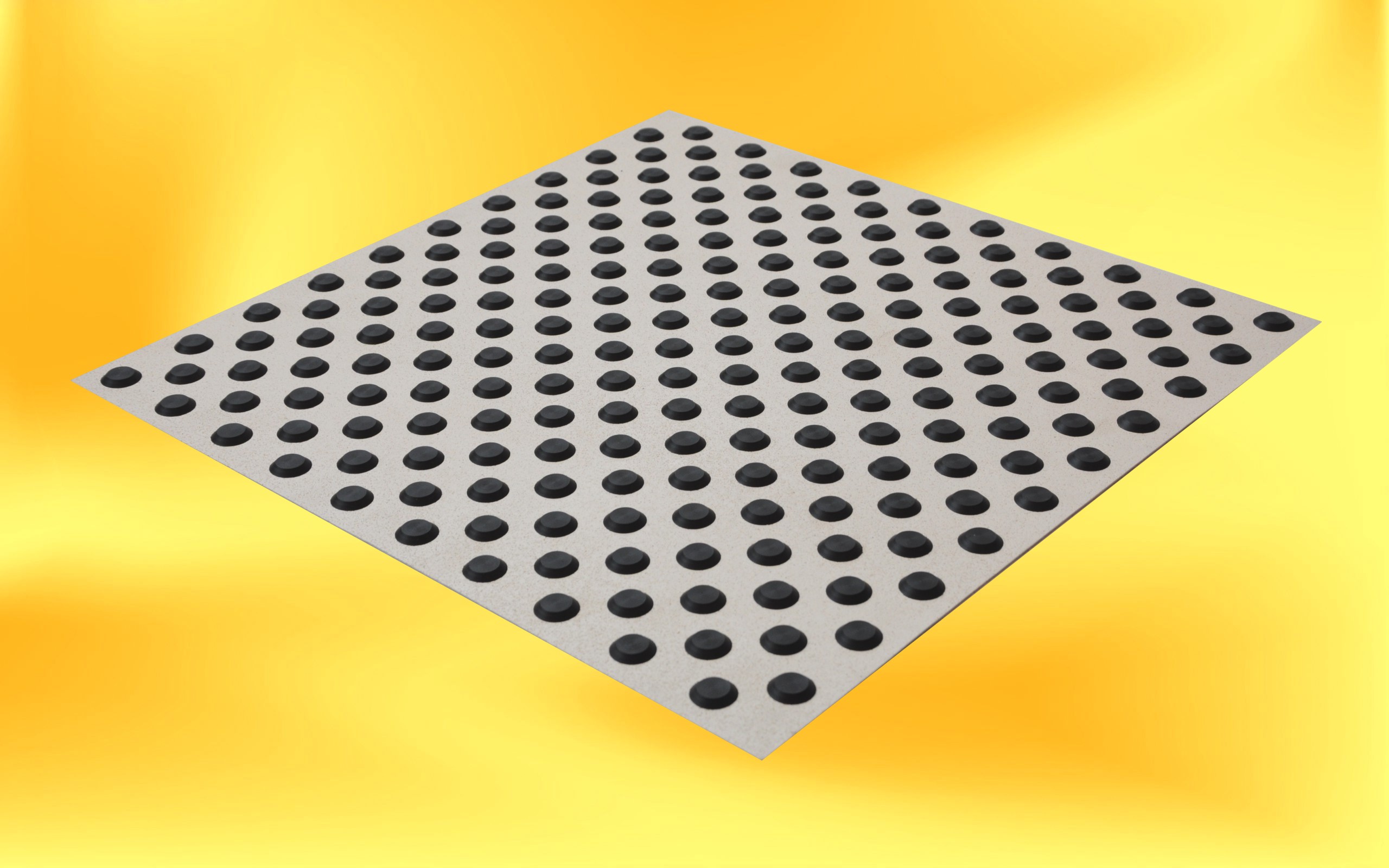

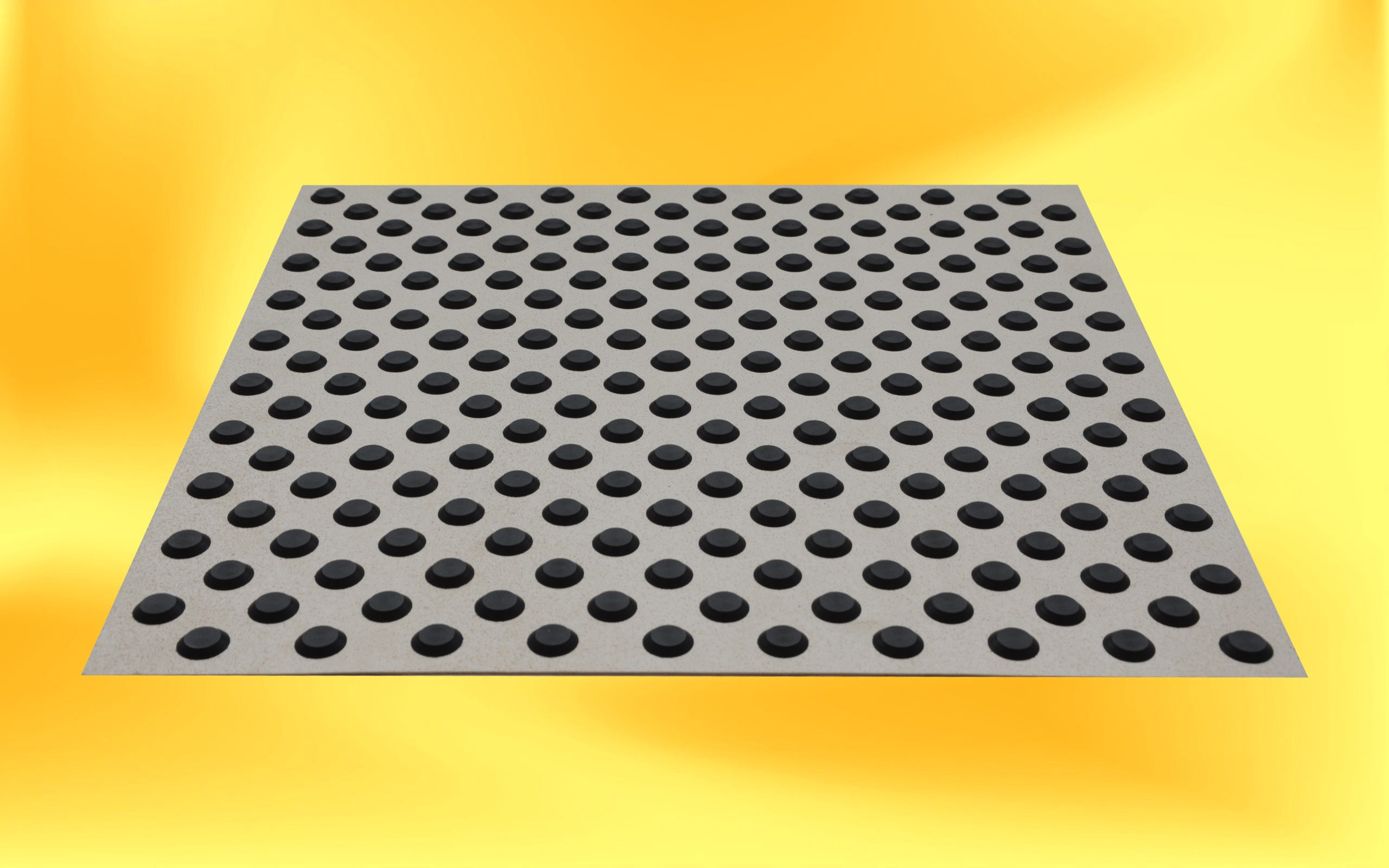

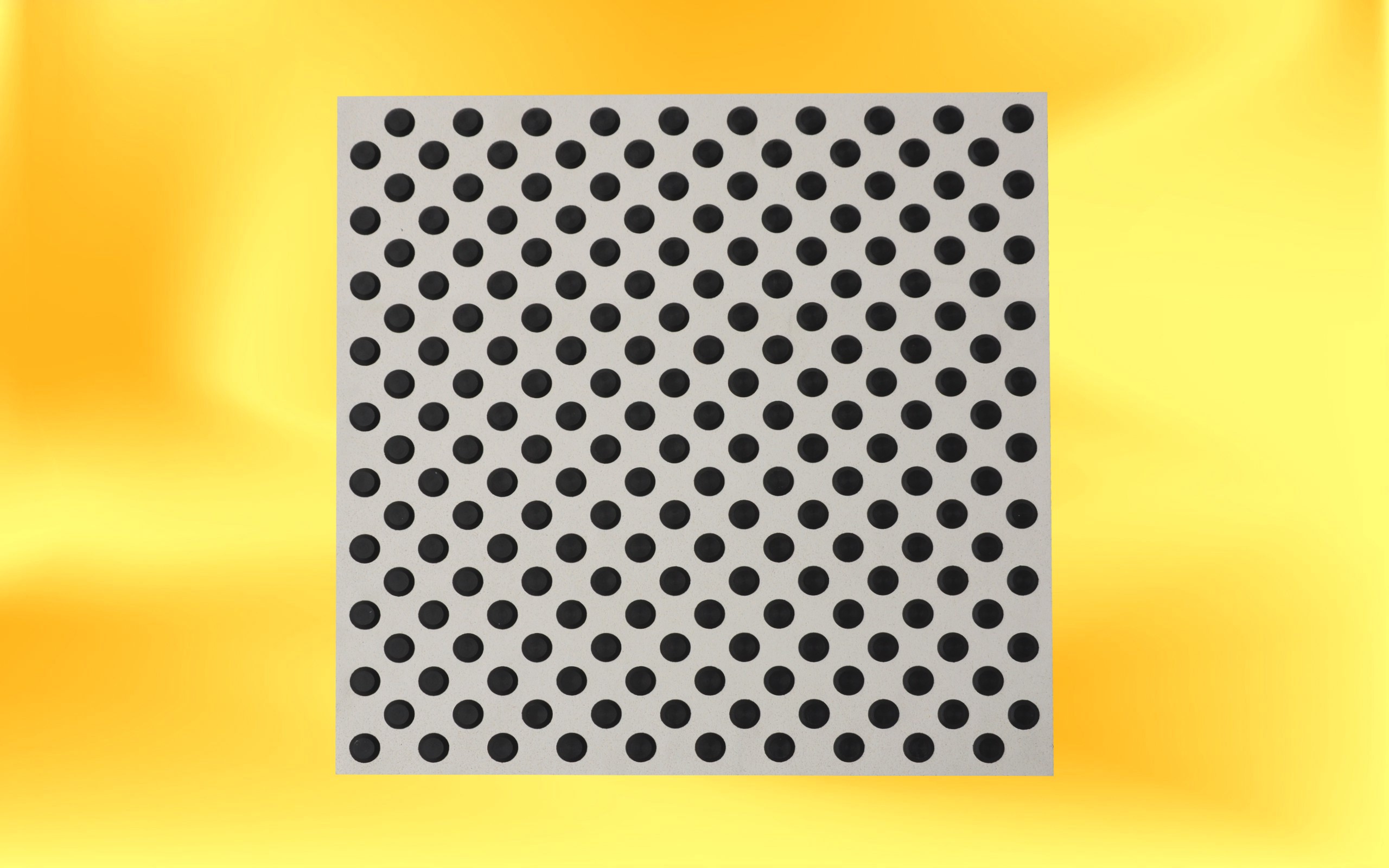

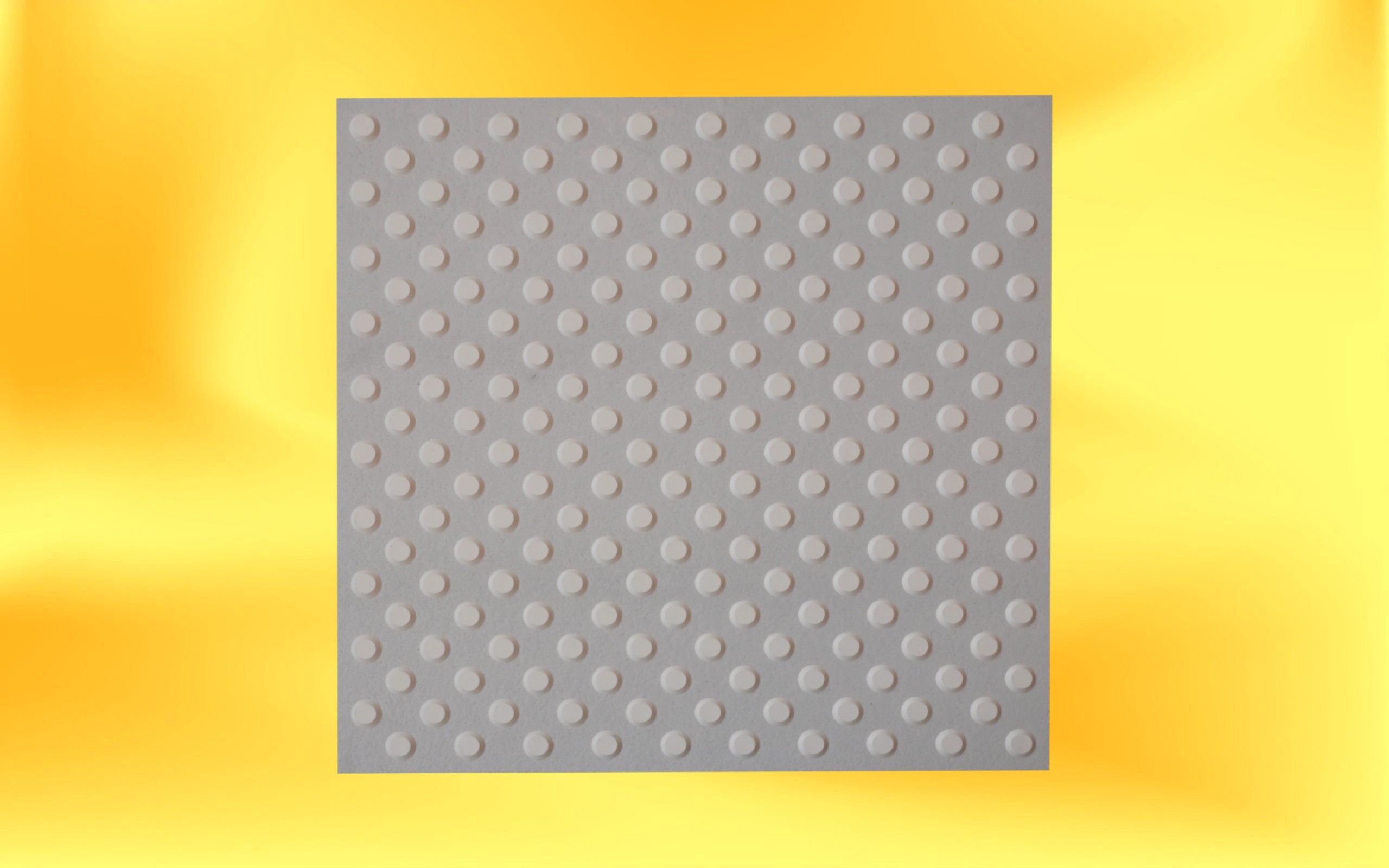

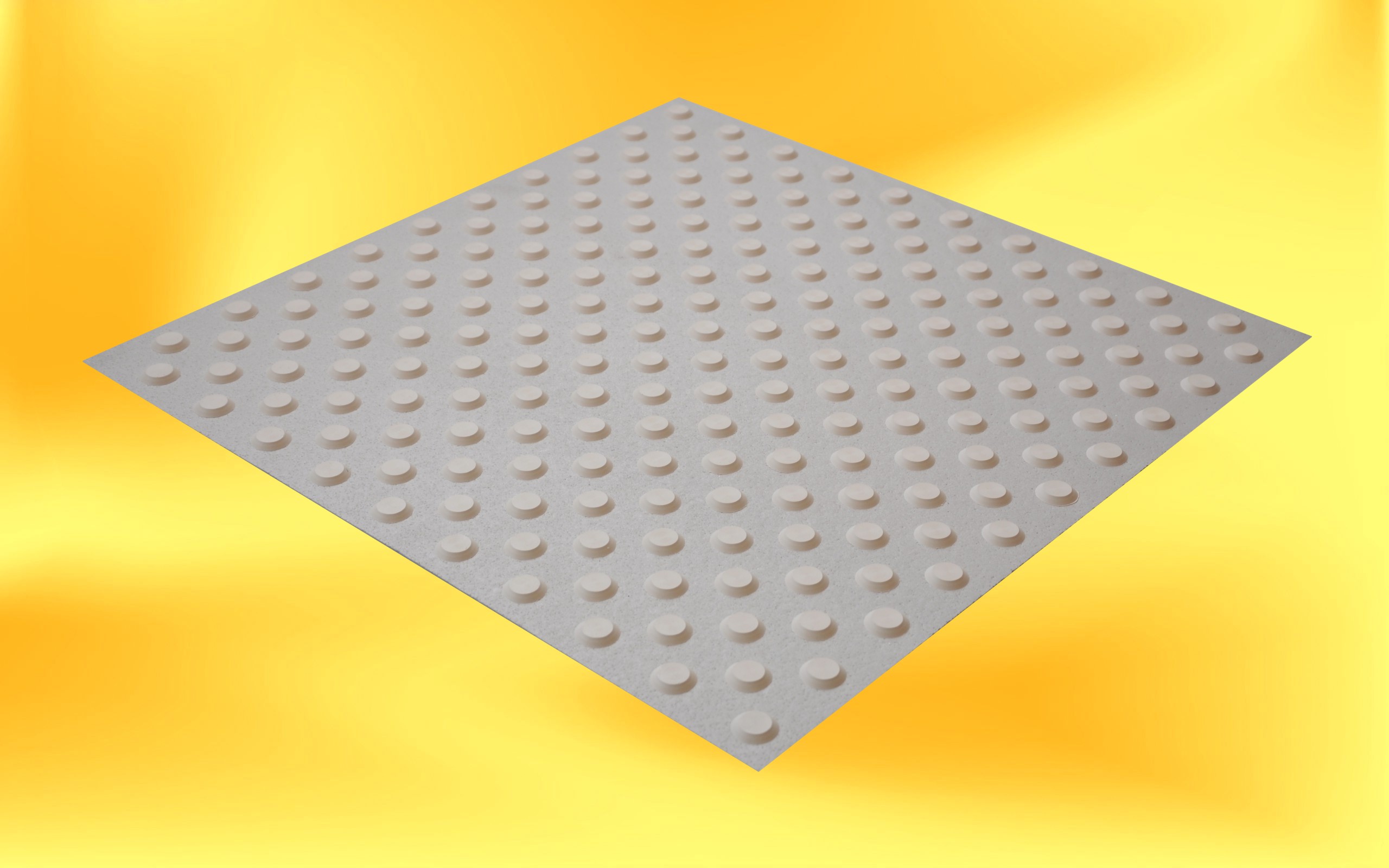

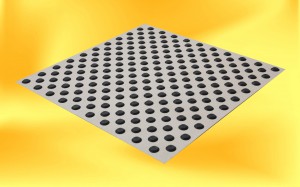

Tactile pad ME-226


Tactile pad type ME-226 (non-connectable type – to be used as a single piece)

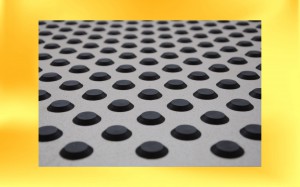

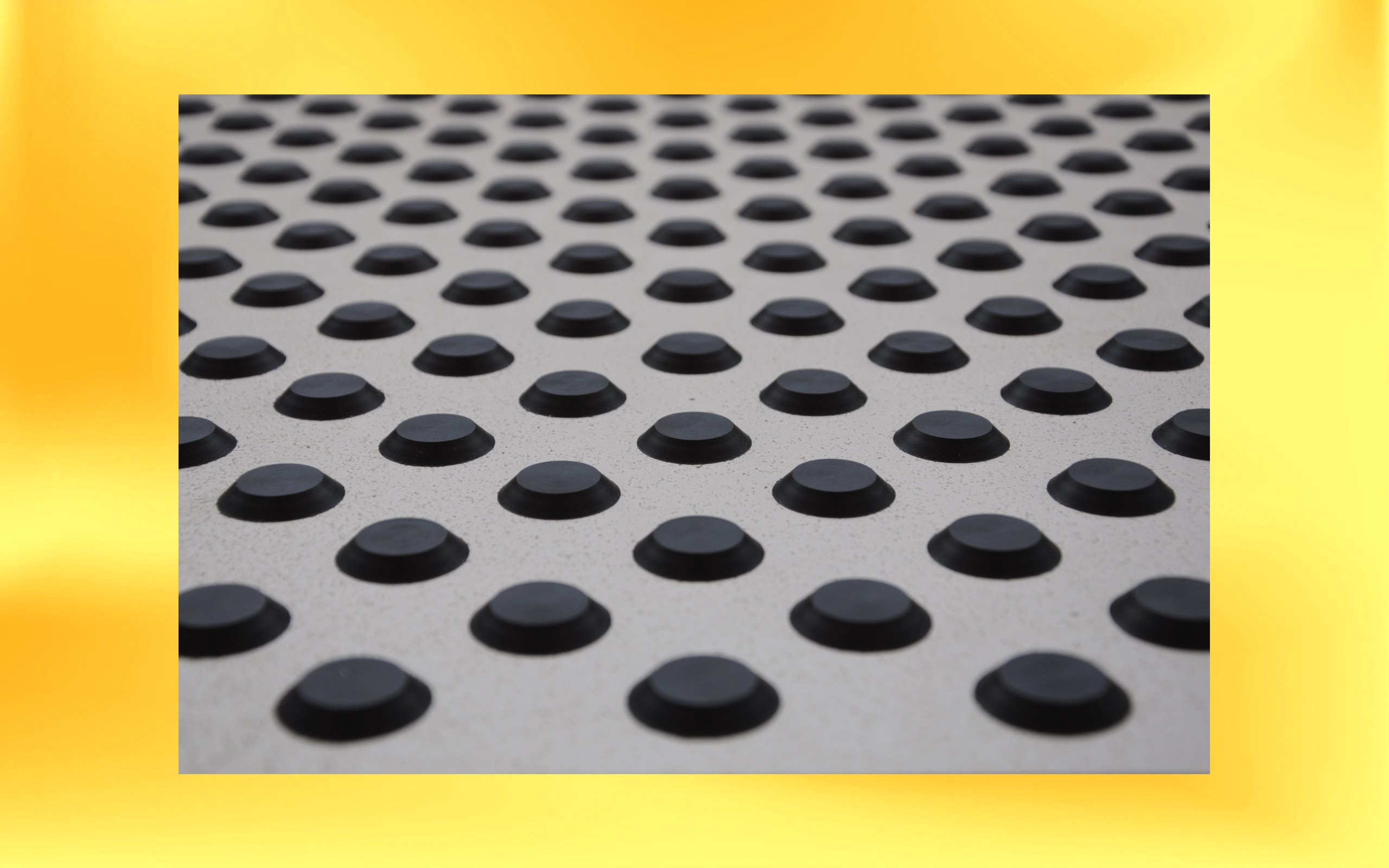

…studs ∅25 mm in form of truncated cones – with flat top

In accordance with DIN 32984 norm.
Dimensions:  601 x 601 mm
Made of elastomer (belt) and two-component cold plastic (studs).
Colour:  Various colour combinations (see below)
Used as surface mounted tactile paving (warning and signal tactile indicators) for outdoor as well as indoor applications. To be placed over the existing paving, which makes the installation simple, quick and cost effective (it eliminates excavation and the footpath can be re-opened within a few hours).
Exterior applications:  Suitable for the application on matured bitumen and concrete surfaces. Installation by gluing using two-component cold plastic (methacrylate resin).
Interior applications:  Installation over surfaces such as ceramic / clay, marble or granite tiles, etc. Installation using glue that is already pre-applied at the bottom of the product and covered by a plastic protection film.

Tactile pad ME-226Tactile pad ME-226Tactile pad ME-226Tactile pad ME-226

Tactile pad ME-226Tactile pad ME-226



Available colour combinations with order numbers:

ME-2261-S   Tactile pad 601×601 mm white/white studs
ME-2262-S   Tactile pad 601×601 mm white/black studs
ME-2263-S   Tactile pad 601×601 mm white/yellow studs
ME-2264-S   Tactile pad 601×601 mm white/grey studs
ME-2265-S   Tactile pad 601×601 mm yellow/white studs
ME-2266-S   Tactile pad 601×601 mm yellow/black studs
ME-2267-S   Tactile pad 601×601 mm yellow/yellow studs
ME-2268-S   Tactile pad 601×601 mm yellow/grey studs
