Guiding strips ST-33 diamond


Stainless steel guiding strips with diamond pattern (MILLED) – type ST-33

Surface mounted tactile guiding strips L=280 mm made of stainless steel AISI 316, in accordance with the international norm ISO 23599/2012, suitable (as a tactile orientation system for blind and visually impaired people) for indoor or also for outdoor applications (version with pins).
The top surface has diamond pattern (milled).
Diamond stainless steel guiding strips are available in 3 versions:
– with pins (for fixation into pre-drilled holes in floors)
– without pins (for fixation using additional glue like MAMUT or similar)
– self-adhesive with high-quality AFT adhesive tape – for indoor use only

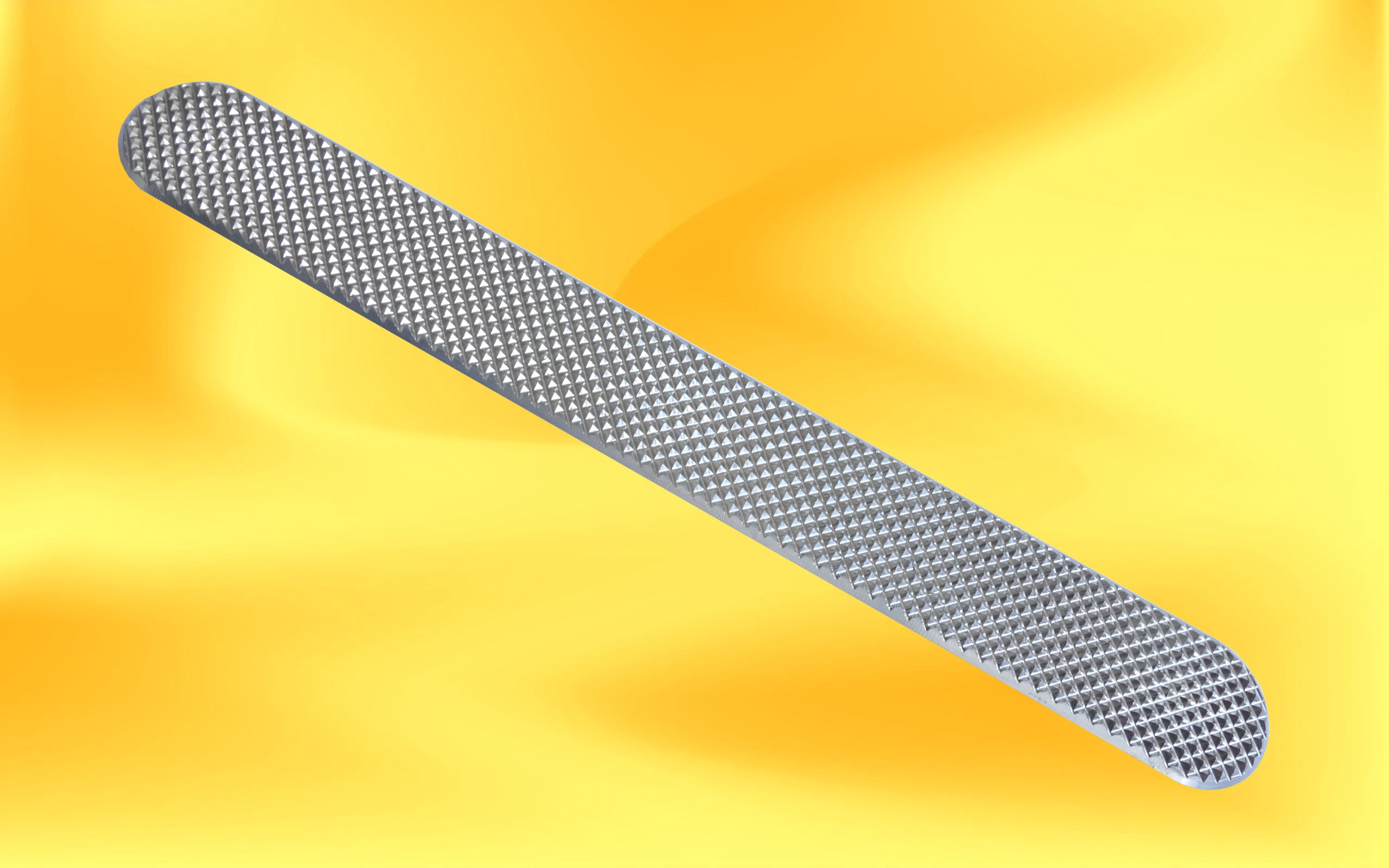

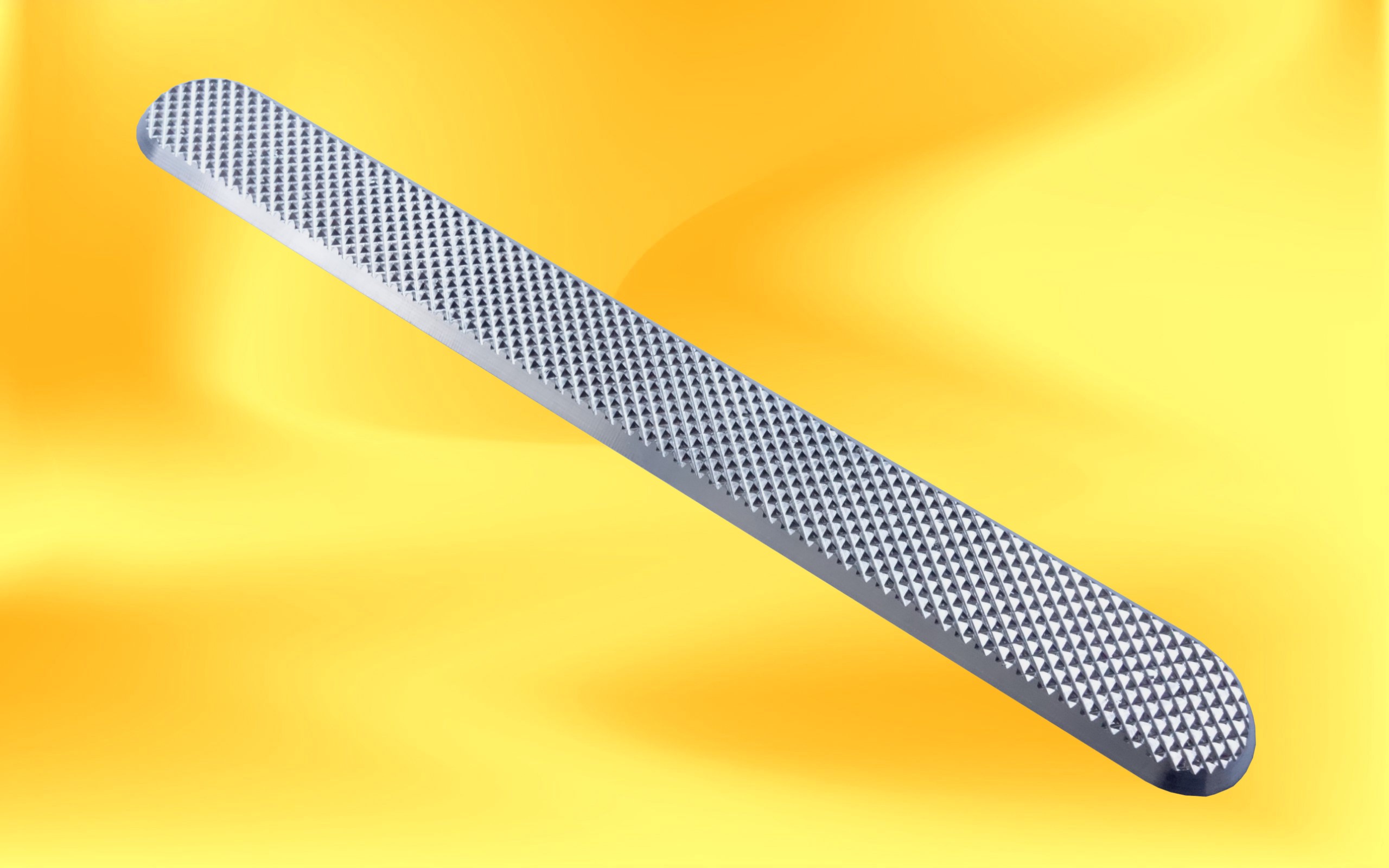

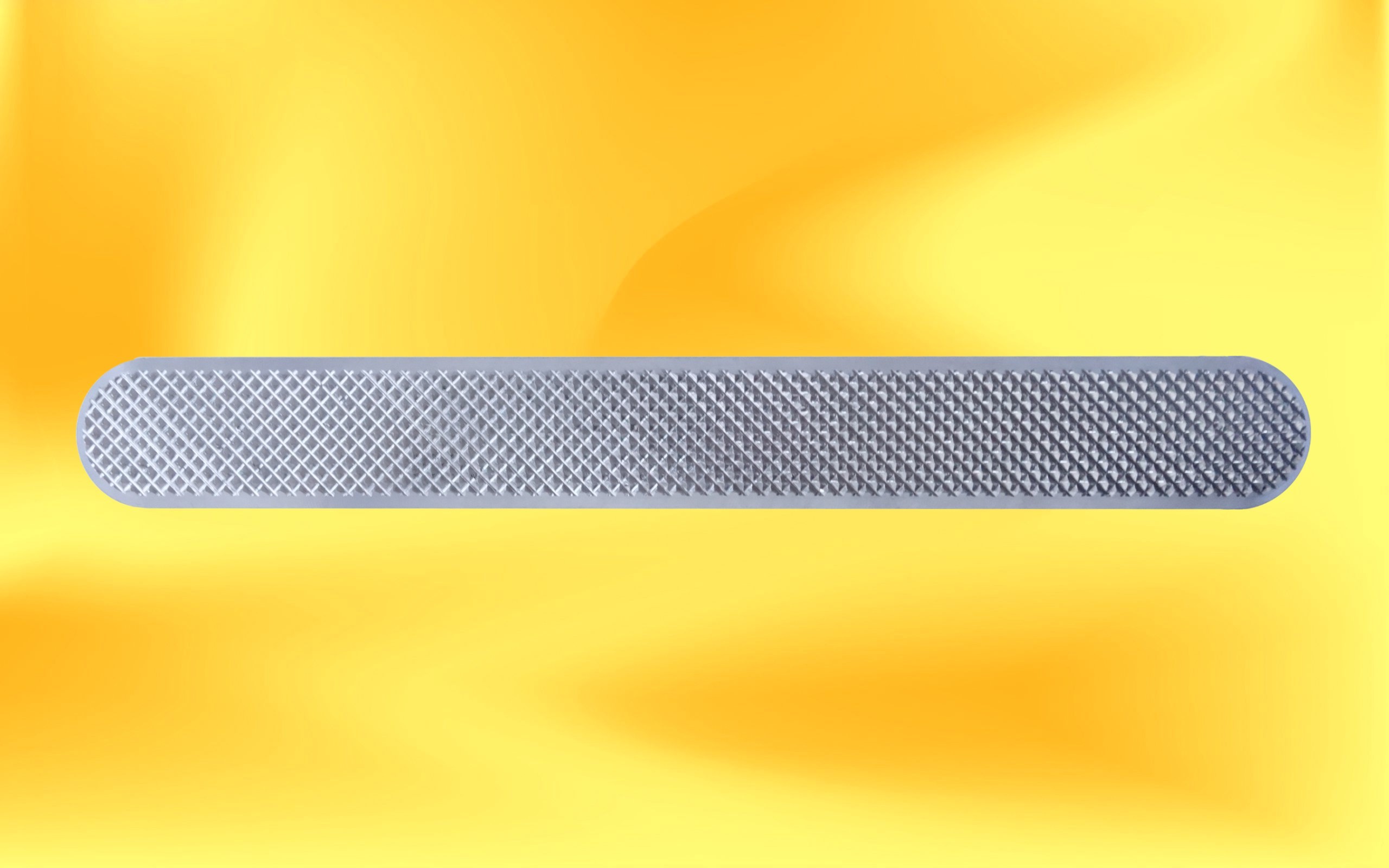

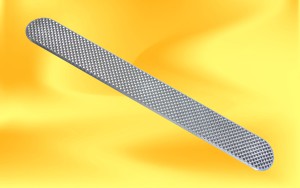

Order numbers of all versions are mentioned below the following photos of stainless steel guiding lines.















Available versions with order numbers:

ST-3301      Guiding strip 280x34x5 mm (AISI 316) diamond MILLED, non-polished, without pins
ST-3301-P  Guiding strip 280x34x5 mm (AISI 316) diamond MILLED, non-polished, with pins
ST-3301-S  Guiding strip 280x34x5,5 mm (AISI 316) diamond MILLED, non-polished, self-adhesive (AFT tape)

ST-3302      Guiding strip 280x34x3 mm (AISI 316) diamond MILLED, non-polished, without pins
ST-3302-P  Guiding strip 280x34x3 mm (AISI 316) diamond MILLED, non-polished, with pins
ST-3302-S  Guiding strip 280x34x3,5 mm (AISI 316) diamond MILLED, non-polished, self-adhesive (AFT tape)
