Guiding strips ST-31 grooves


Stainless steel guiding strips with grooves – type ST-31

Surface mounted tactile guiding strips L=280 mm made of stainless steel AISI 316, in accordance with the international norm ISO 23599/2012 and/or german norm DIN 32984 in various versions, suitable (as a tactile orientation system for blind and visually impaired people) for indoor or also for outdoor applications (version with pins).
The top surface has grooved pattern.
Stainless steel guiding strips with grooves are available in 3 versions:

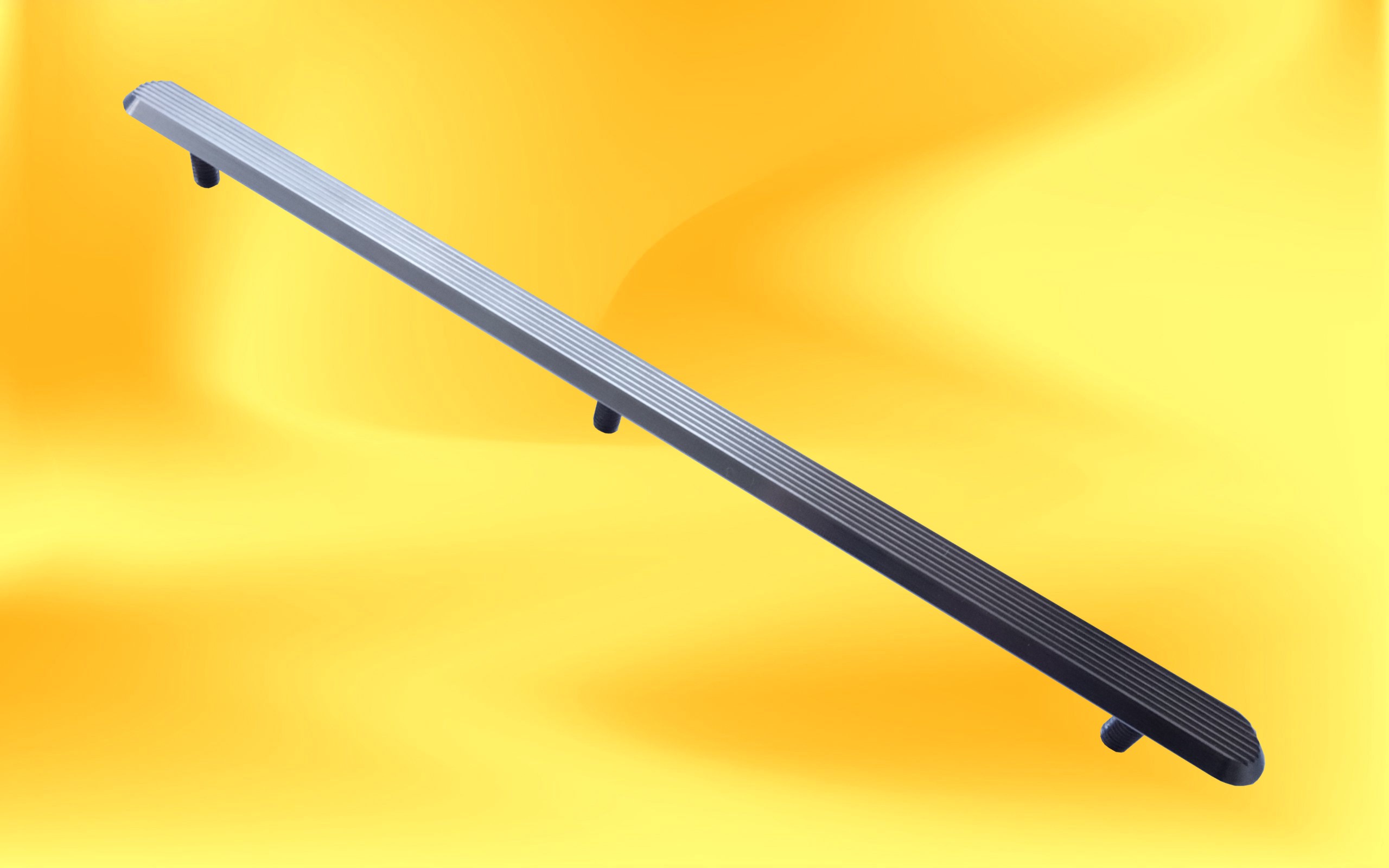

– with pins (for fixation into pre-drilled holes in floors)
– without pins (for fixation using additional glue like MAMUT or similar)
– self-adhesive with high-quality AFT adhesive tape – for indoor use only

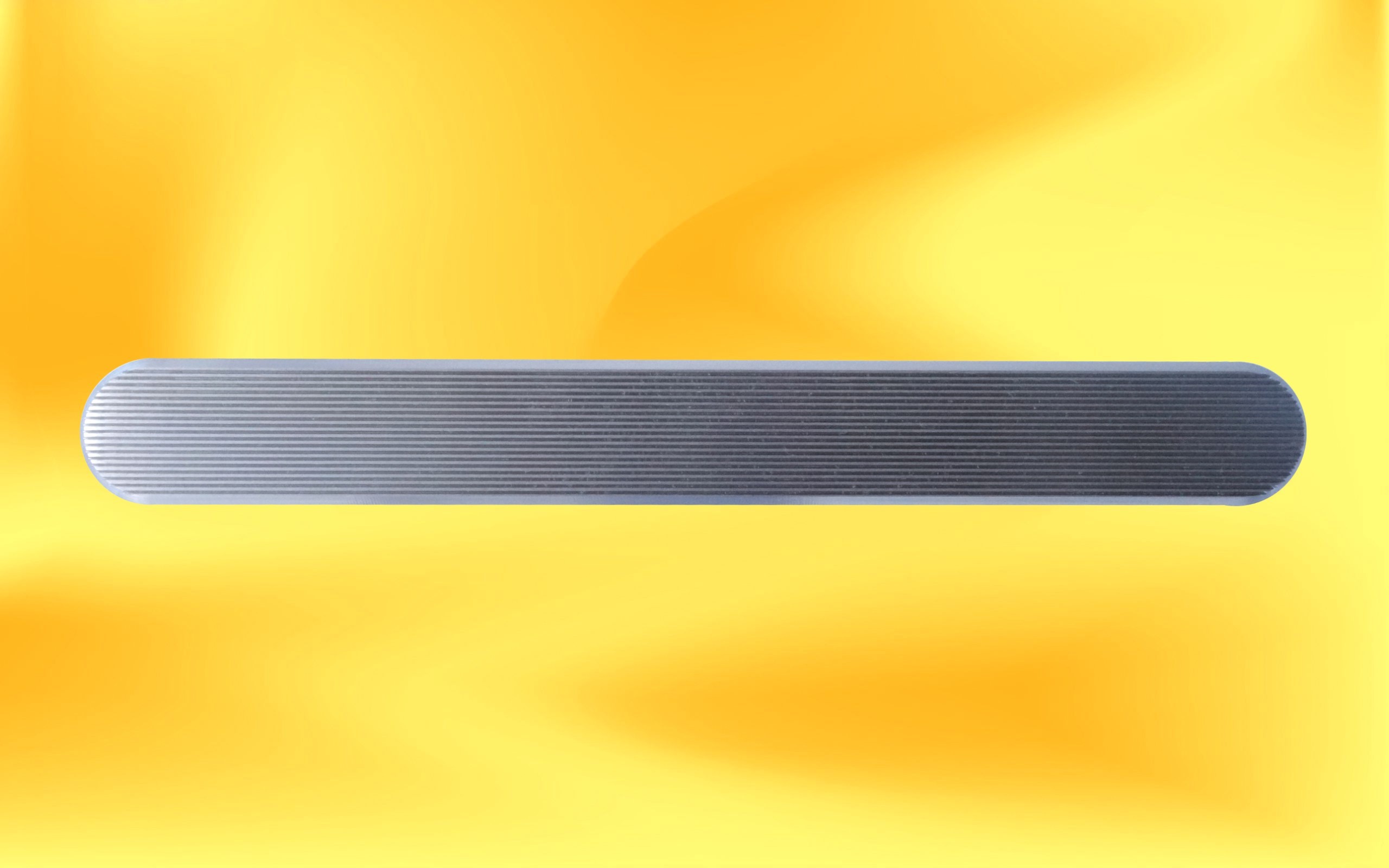

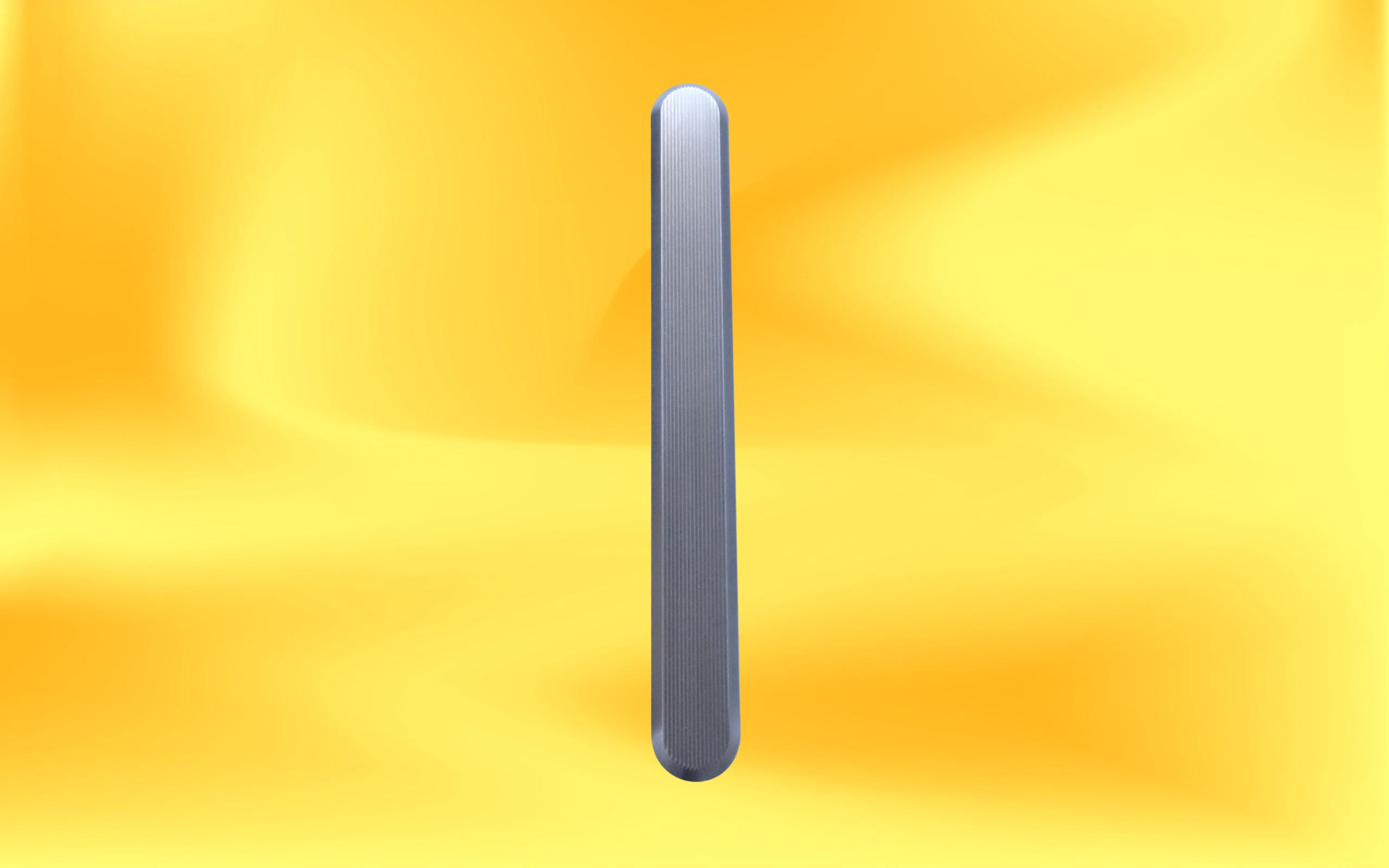

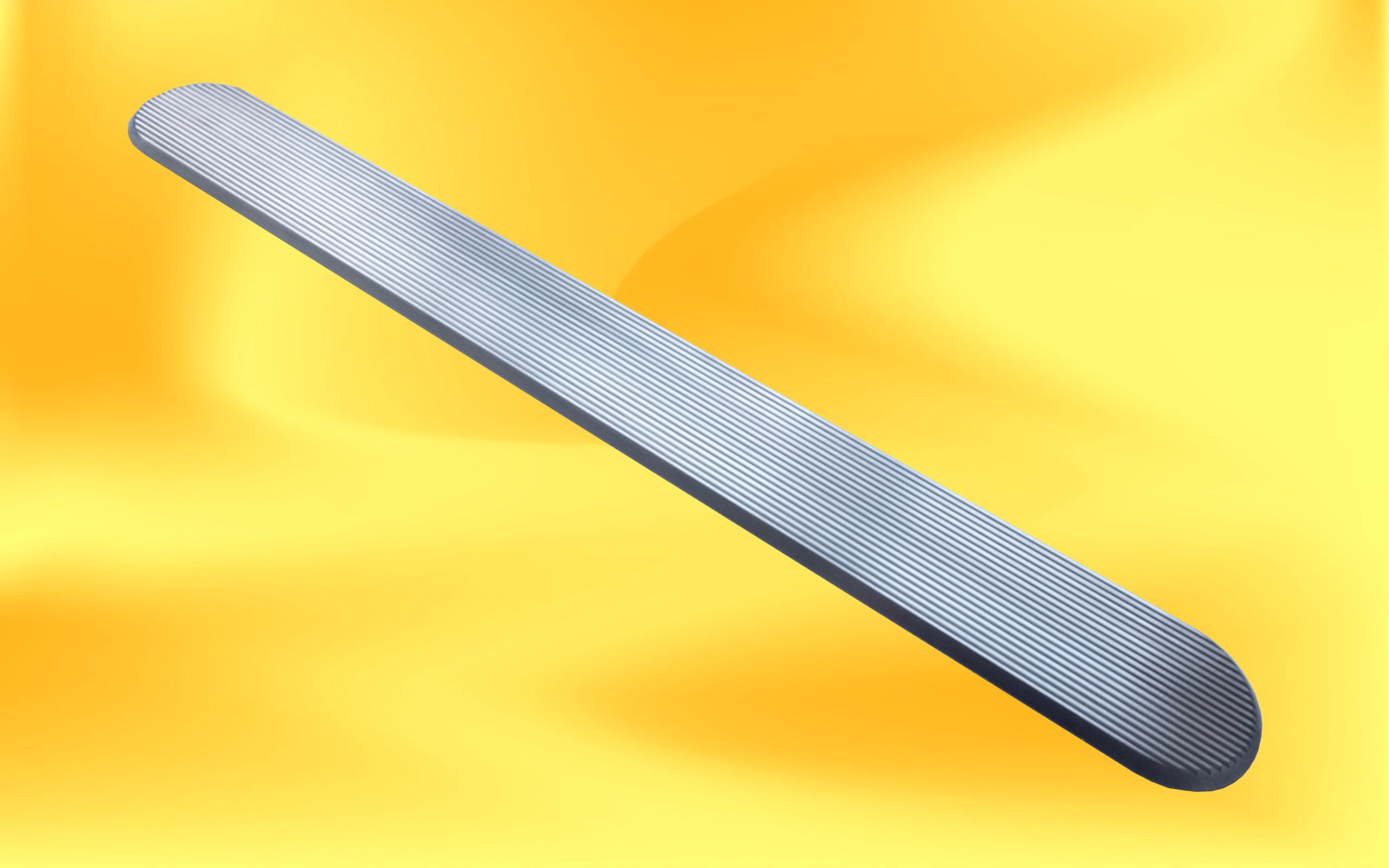

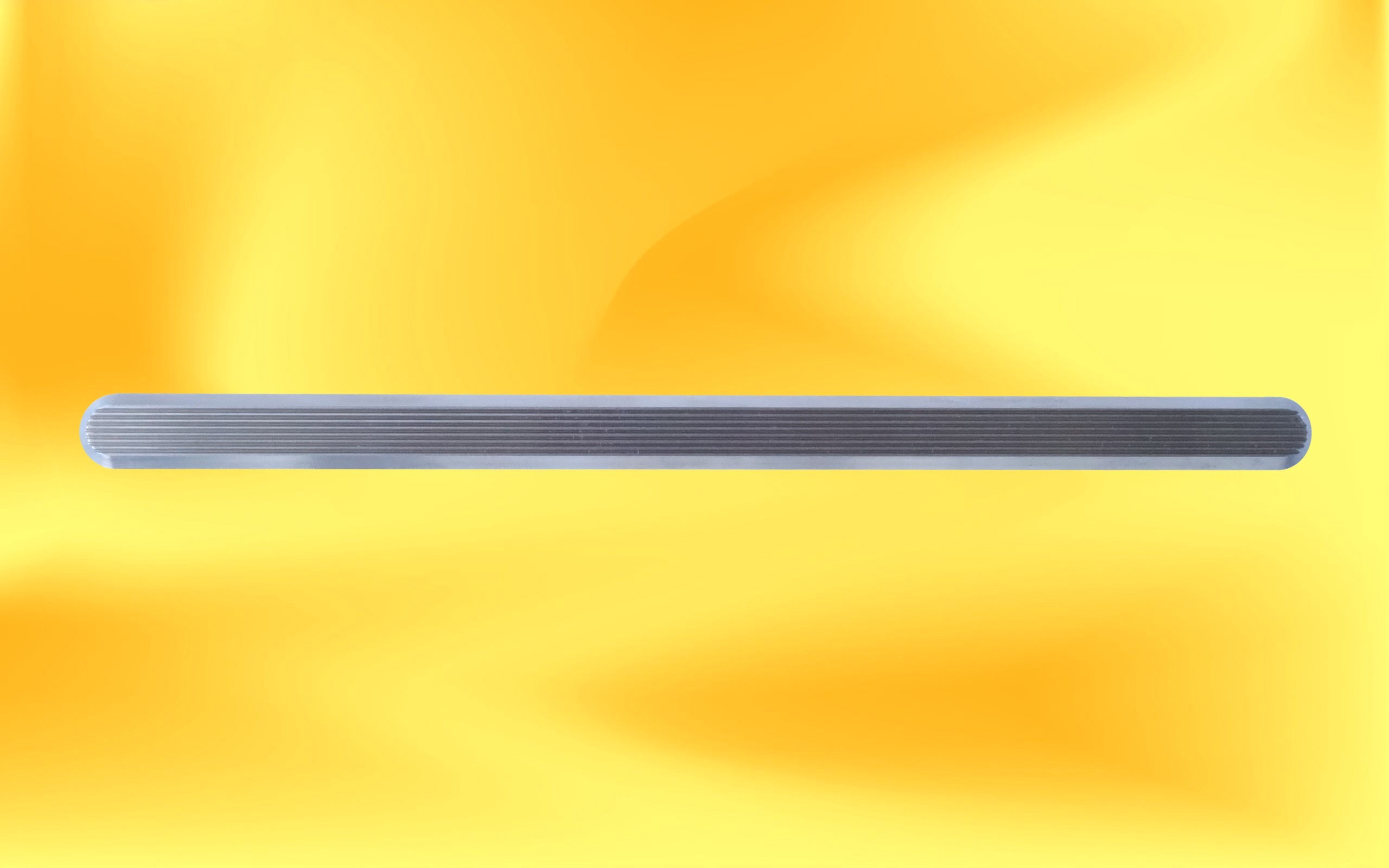

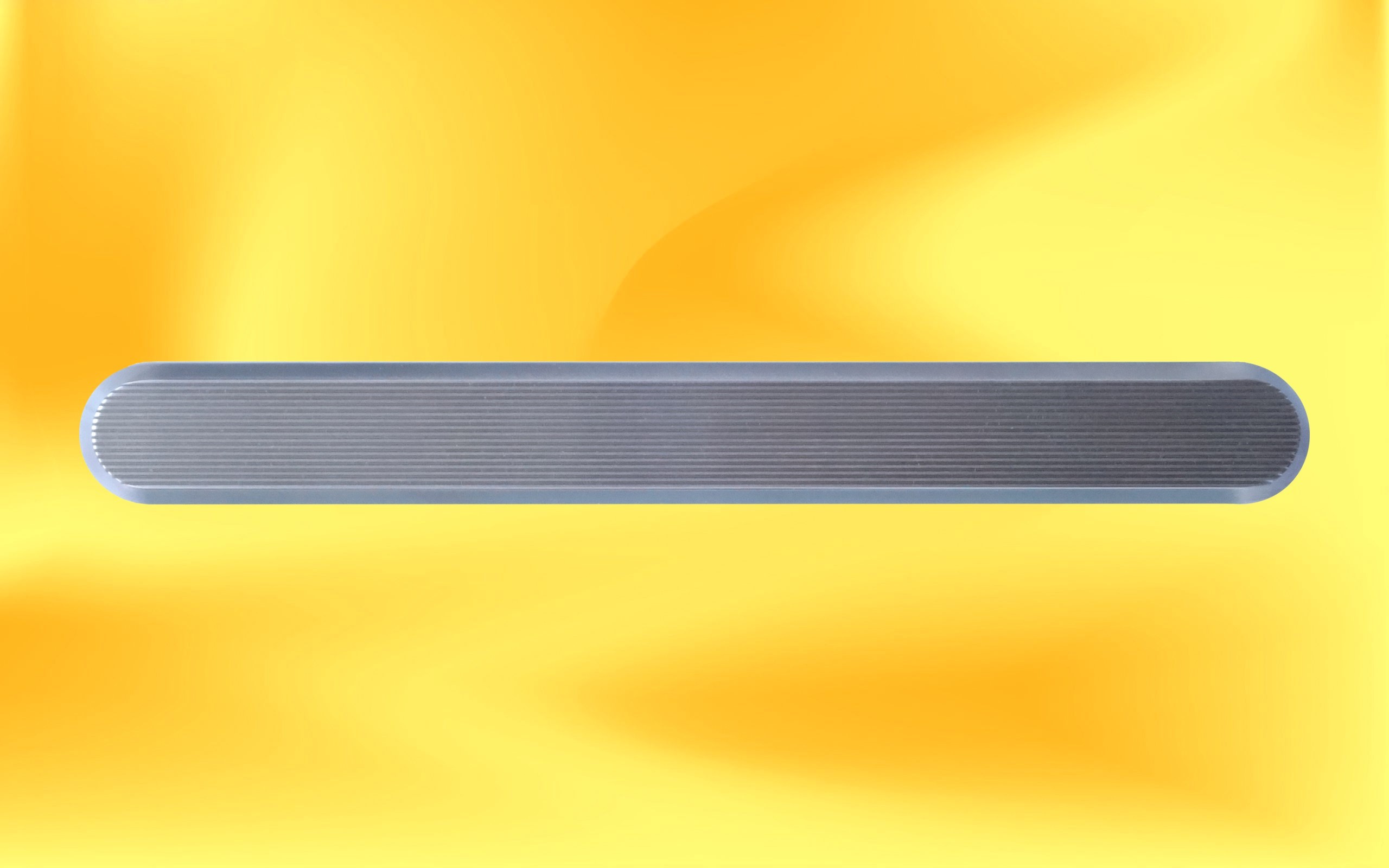

Order numbers of all versions are mentioned below the following photos of stainless steel guiding lines.





























Available versions with order numbers:

ST-3101      Guiding strip 280x34x5 mm (AISI 316) with grooves MILLED, non-polished, without pins
ST-3101-P  Guiding strip 280x34x5 mm (AISI 316) with grooves MILLED, non-polished, with pins
ST-3101-S  Guiding strip 280x34x5,5 mm (AISI 316) with grooves MILLED, non-polished, self-adhesive (AFT tape)
ST-3102      Guiding strip 280x34x3 mm (AISI 316) with grooves MILLED, non-polished, without pins
ST-3102-P  Guiding strip 280x34x3 mm (AISI 316) with grooves MILLED, non-polished, with pins
ST-3102-S  Guiding strip 280x34x3,5 mm (AISI 316) with grooves MILLED, non-polished, self-adhesive (AFT tape)

ST-3111      Guiding strip 280x16x5 mm (AISI 316) with grooves MILLED, non-polished, without pins
ST-3111-P  Guiding strip 280x16x5 mm (AISI 316) with grooves MILLED, non-polished, with pins
ST-3111-S  Guiding strip 280x16x5,5 mm (AISI 316) with grooves MILLED, non-polished, self-adhesive (AFT tape)
ST-3112      Guiding strip 280x16x3 mm (AISI 316) with grooves MILLED, non-polished, without pins
ST-3112-P  Guiding strip 280x16x3 mm (AISI 316) with grooves MILLED, non-polished, with pins
ST-3112-S  Guiding strip 280x16x3,5 mm (AISI 316) with grooves MILLED, non-polished, self-adhesive (AFT tape)
