Tactile studs PL-40


Plastic tactile paving studs – type PL-40

Surface mounted plastic warning studs Ø35/25 mm made in accordance with the international norm ISO 23599/2012 in various versions and colours, suitable (as a tactile orientation system for blind and visually impaired people) for indoor or potentially also for outdoor applications (with pins).
Tactile studs (tactile truncated domes) are made of polyurethane/desmopan and are available in 4 versions:
– with pins (for fixation into pre-drilled holes in floors)
– without pins (for fixation using additional glue like MAMUT or similar)
– self-adhesive with thin adhesive tape (suitable for flat and smooth surfaces – linoleum, smooth tiles, carpets)
– self-adhesive with high-quality AFT adhesive tape (suitable for more difficult and frequented surfaces e.g. with some kind of structure, etc.)
Possible colours:  white, black, yellow, grey, red or blue
Order numbers of all versions and colours are mentioned below the following photos of plastic tactile studs.

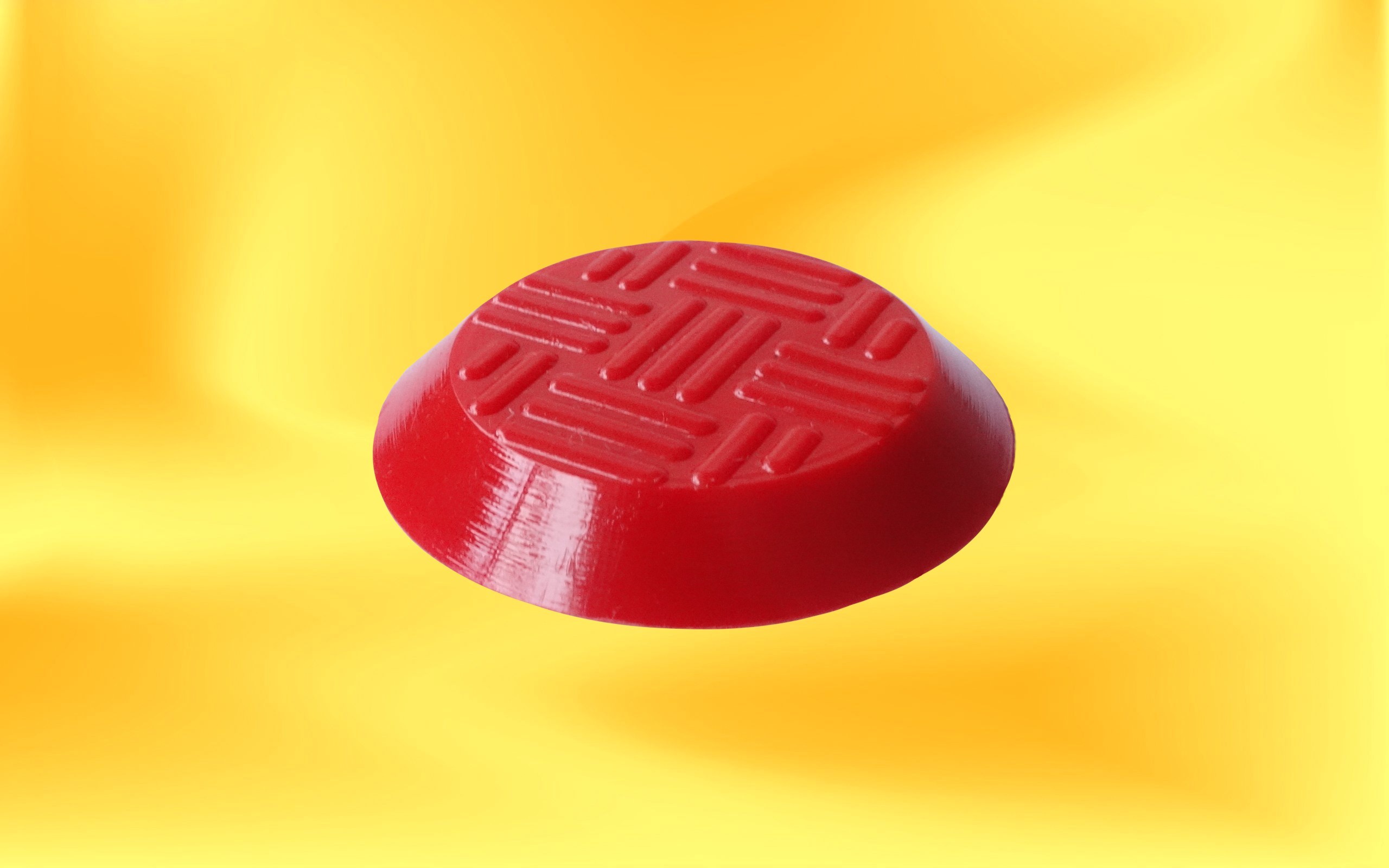

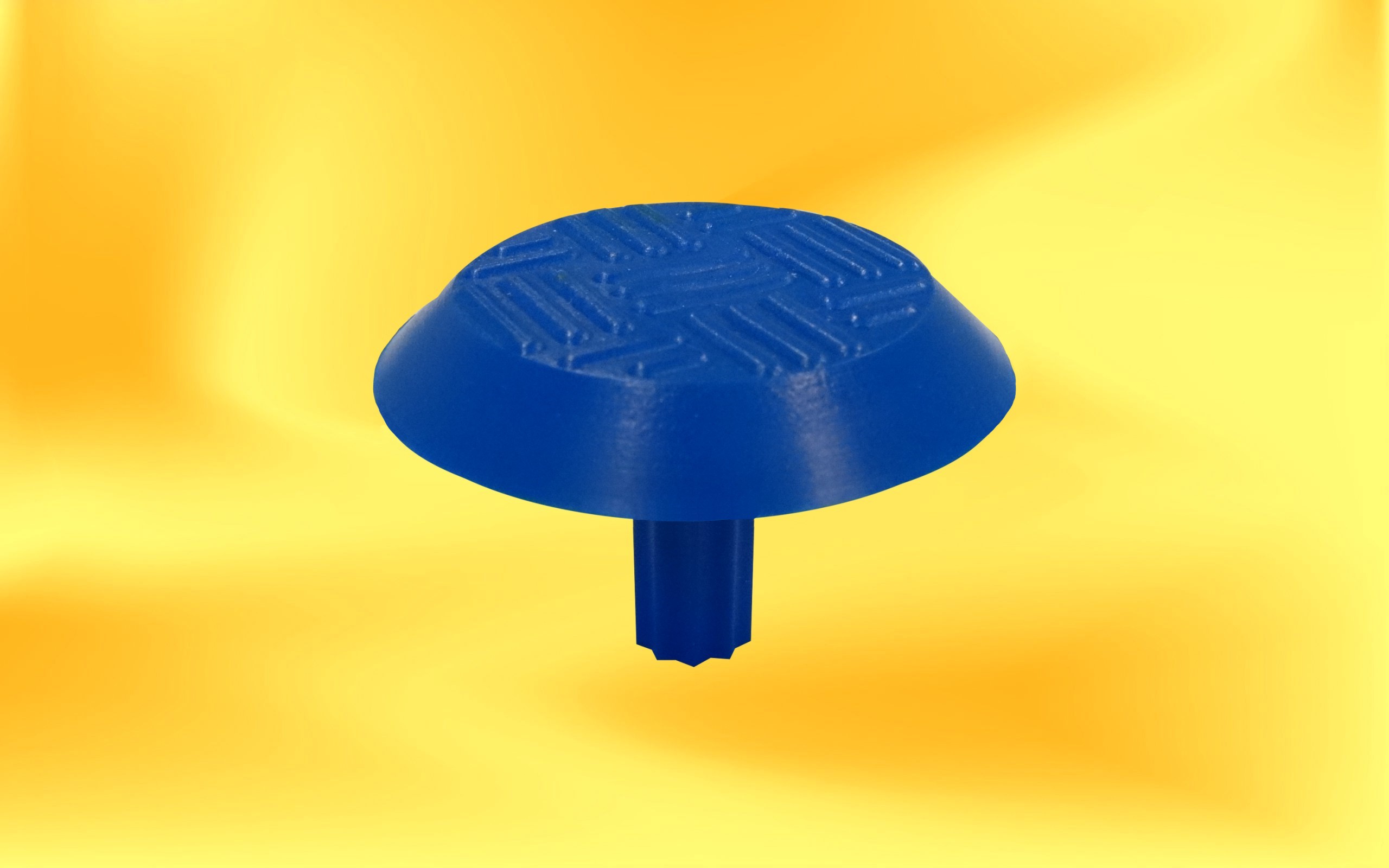

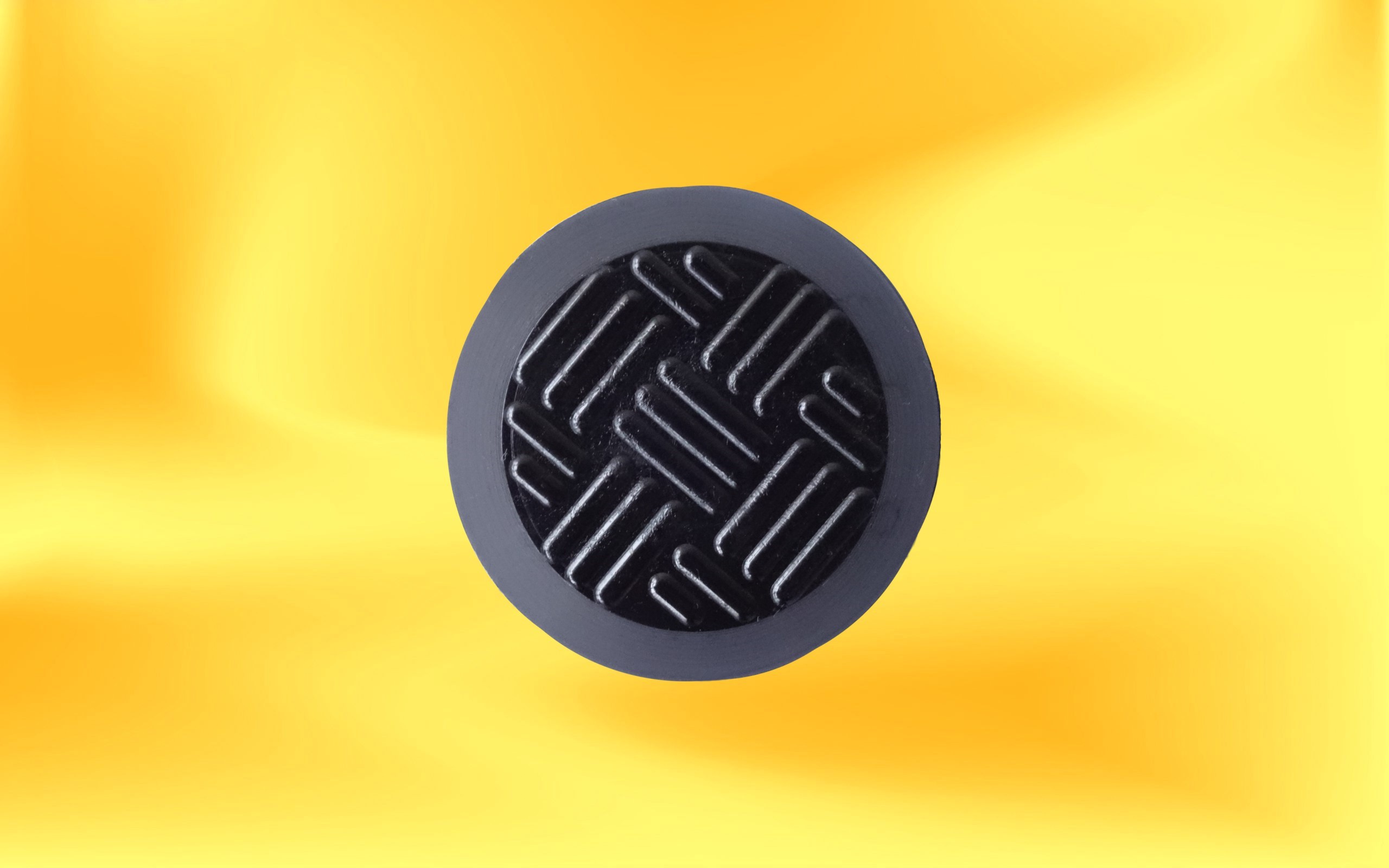

Plastic tactile studs PL-40Plastic tactile studs PL-40Plastic tactile studs PL-40

Possible colour versions with order numbers:

PL-4001         Tactile stud Ø35/25×5 mm without pin – white
PL-4001-P    Tactile stud Ø35/25×5 mm with pin – white
PL-4001-S1  Tactile stud Ø35/25×5,2 mm self-adhesive (thin tape) – white
PL-4001-S2  Tactile stud Ø35/25×5,5 mm self-adhesive (AFT tape) – white
PL-4002         Tactile stud Ø35/25×5 mm without pin – black
PL-4002-P    Tactile stud Ø35/25×5 mm with pin – black
PL-4002-S1  Tactile stud Ø35/25×5,2 mm self-adhesive (thin tape) – black
PL-4002-S2  Tactile stud Ø35/25×5,5 mm self-adhesive (AFT tape) – black
PL-4003         Tactile stud Ø35/25×5 mm without pin – yellow
PL-4003-P    Tactile stud Ø35/25×5 mm with pin – yellow
PL-4003-S1  Tactile stud Ø35/25×5,2 mm self-adhesive (thin tape) – yellow
PL-4003-S2  Tactile stud Ø35/25×5,5 mm self-adhesive (AFT tape) – yellow
PL-4004         Tactile stud Ø35/25×5 mm without pin – grey
PL-4004-P    Tactile stud Ø35/25×5 mm with pin – grey
PL-4004-S1  Tactile stud Ø35/25×5,2 mm self-adhesive (thin tape) – grey
PL-4004-S2  Tactile stud Ø35/25×5,5 mm self-adhesive (AFT tape) – grey
PL-4005         Tactile stud Ø35/25×5 mm without pin – red
PL-4005-P    Tactile stud Ø35/25×5 mm with pin – red
PL-4005-S1  Tactile stud Ø35/25×5,2 mm self-adhesive (thin tape) – red
PL-4005-S2  Tactile stud Ø35/25×5,5 mm self-adhesive (AFT tape) – red
PL-4006         Tactile stud Ø35/25×5 mm without pin – blue
PL-4006-P    Tactile stud Ø35/25×5 mm with pin – blue
PL-4006-S1  Tactile stud Ø35/25×5,2 mm self-adhesive (thin tape) – blue
PL-4006-S2  Tactile stud Ø35/25×5,5 mm self-adhesive (AFT tape) – blue
