Tactile stud PL-22 with pin


Plastic tactile paving studs with pins — type PL-22

Surface mounted plastic warning studs Ø25/18×3,65 mm made in accordance with the German norm DIN 32984 in various versions and colours, suitable (as a tactile orientation system for blind and visually impaired people) for indoor or potentially also for outdoor applications.
Tactile studs (tactile truncated domes) are made of polyurethane/desmopan and are available in 2 versions:
— with pin (for fixation into pre-drilled holes in floors)
— without pin (for fixation using additional glue like MAMUT or similar)
Possible colours:  white, black, yellow, grey, red, silver with marble effect, bronze/brass with marble effect
Order numbers of all versions and colours are mentioned below the following photos of plastic tactile studs.

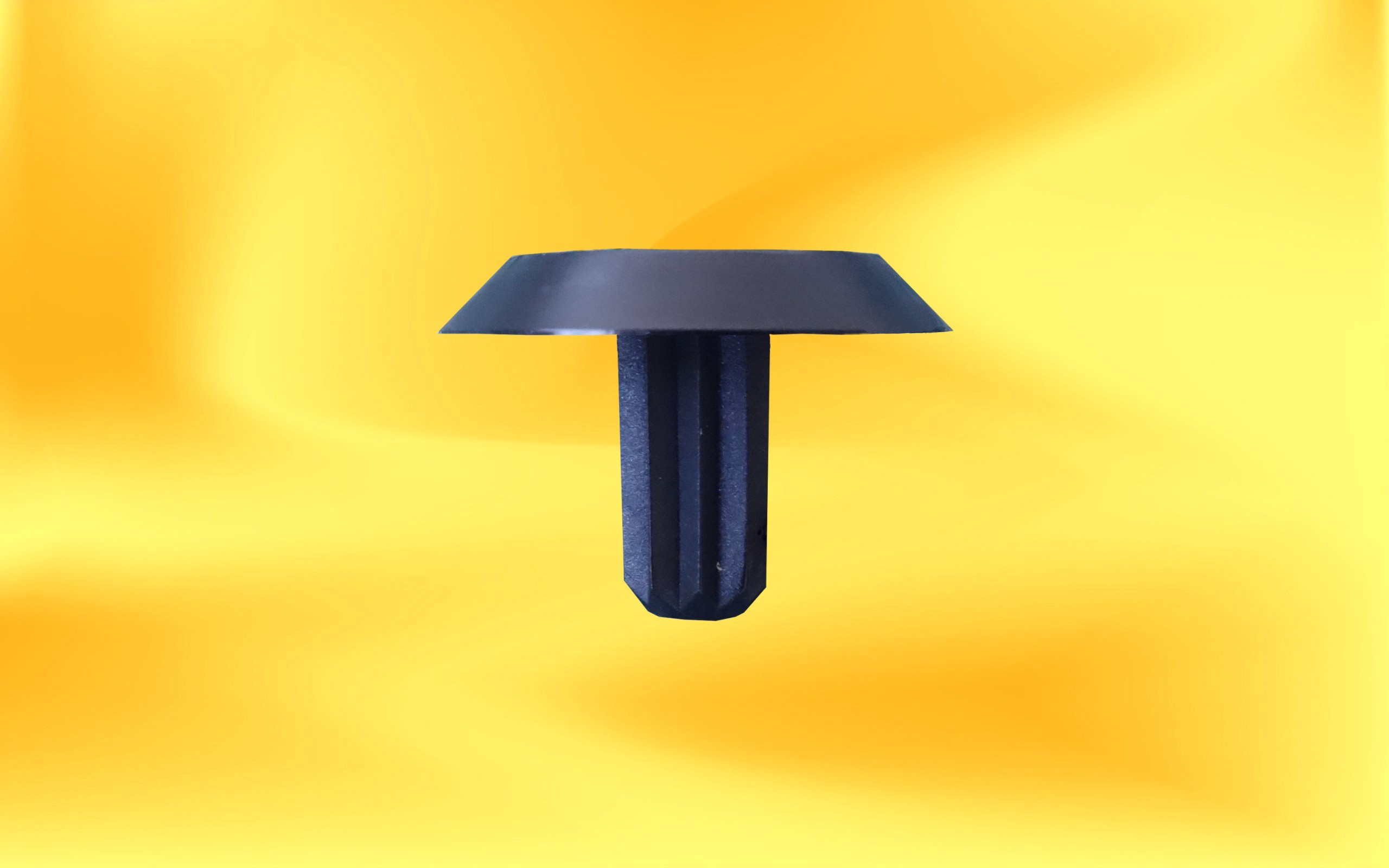

Tactile stud PL-22 with pinTactile stud PL-22 with pinTactile stud PL-22 with pin

Possible colour versions with order numbers:

PL-2201      Tactile stud Ø25/18×3,65 mm without pin — white
PL-2201-P  Tactile stud Ø25/18×3,65 mm with pin — white
PL-2202      Tactile stud Ø25/18×3,65 mm without pin — black
PL-2202-P  Tactile stud Ø25/18×3,65 mm with pin — black
PL-2203      Tactile stud Ø25/18×3,65 mm without pin — yellow
PL-2203-P  Tactile stud Ø25/18×3,65 mm with pin — yellow
PL-2204      Tactile stud Ø25/18×3,65 mm without pin — grey
PL-2204-P  Tactile stud Ø25/18×3,65 mm with pin — grey
PL-2205      Tactile stud Ø25/18×3,65 mm without pin — red
PL-2205-P  Tactile stud Ø25/18×3,65 mm with pin — red
PL-2206      Tactile stud Ø25/18×3,65 mm without pin — silver with marble effect
PL-2206-P  Tactile stud Ø25/18×3,65 mm with pin — silver with marble effect
PL-2207      Tactile stud Ø25/18×3,65 mm without pin — bronze/brass with marble effect
PL-2207-P  Tactile stud Ø25/18×3,65 mm with pin — bronze/brass with marble effect
