Strips PL-10 with pins


Plastic guiding tactile strips with pins – type PL-10

Surface mounted plastic tactile guiding strips 280x30x4 mm made in accordance with the international norm ISO 23599/2012 in various versions and colours, suitable (as a tactile orientation system for blind and visually impaired people) for indoor or potentially also for outdoor applications.
Guiding strips are made of polyurethane/desmopan and are available in 2 versions:
– with pins (for fixation into pre-drilled holes in floors)
– without pins (for fixation using additional glue like MAMUT or similar)
Possible colours:  white, black, yellow, grey or red
Order numbers of all versions and colours are mentioned below the following photos of plastic guiding lines.

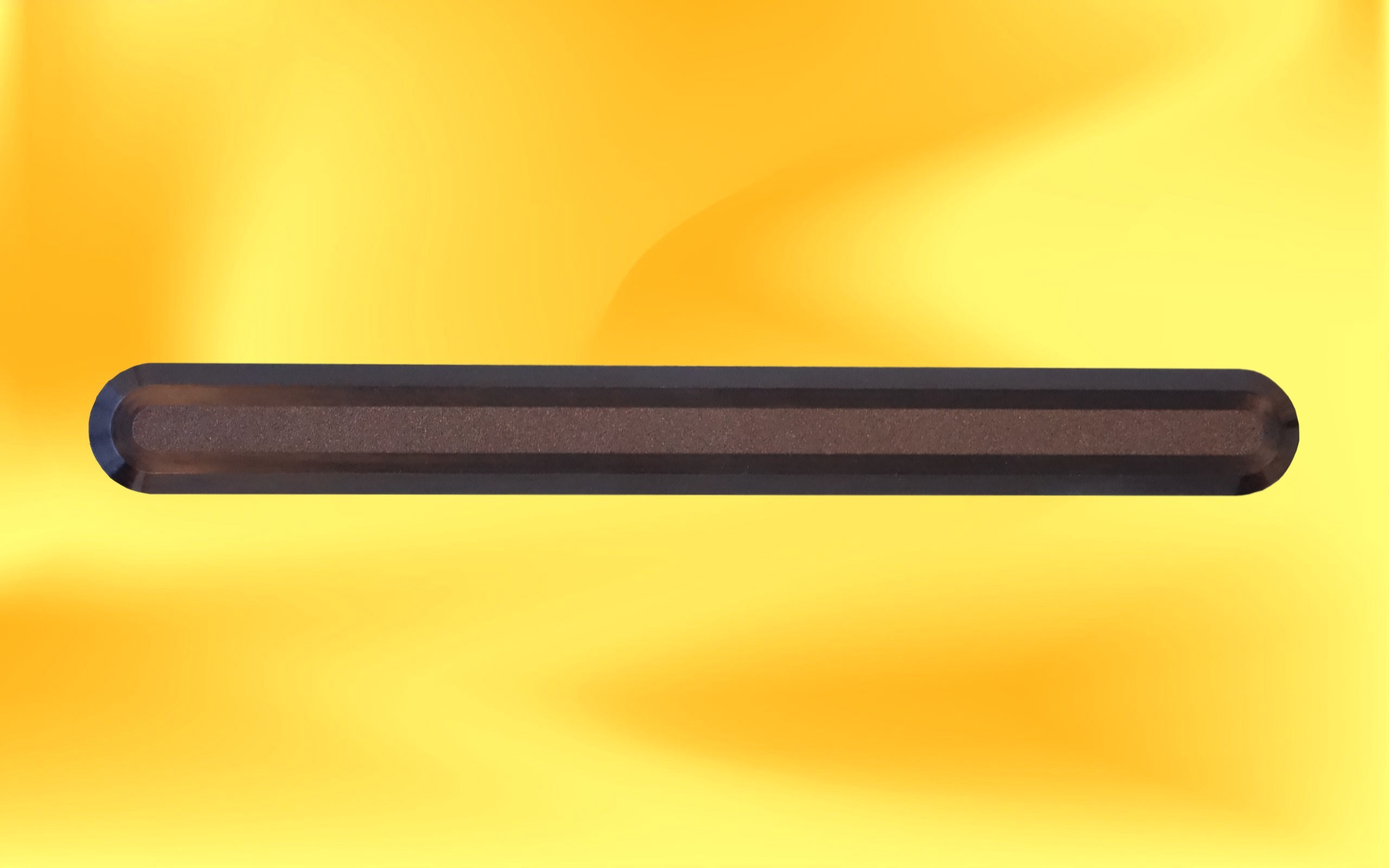

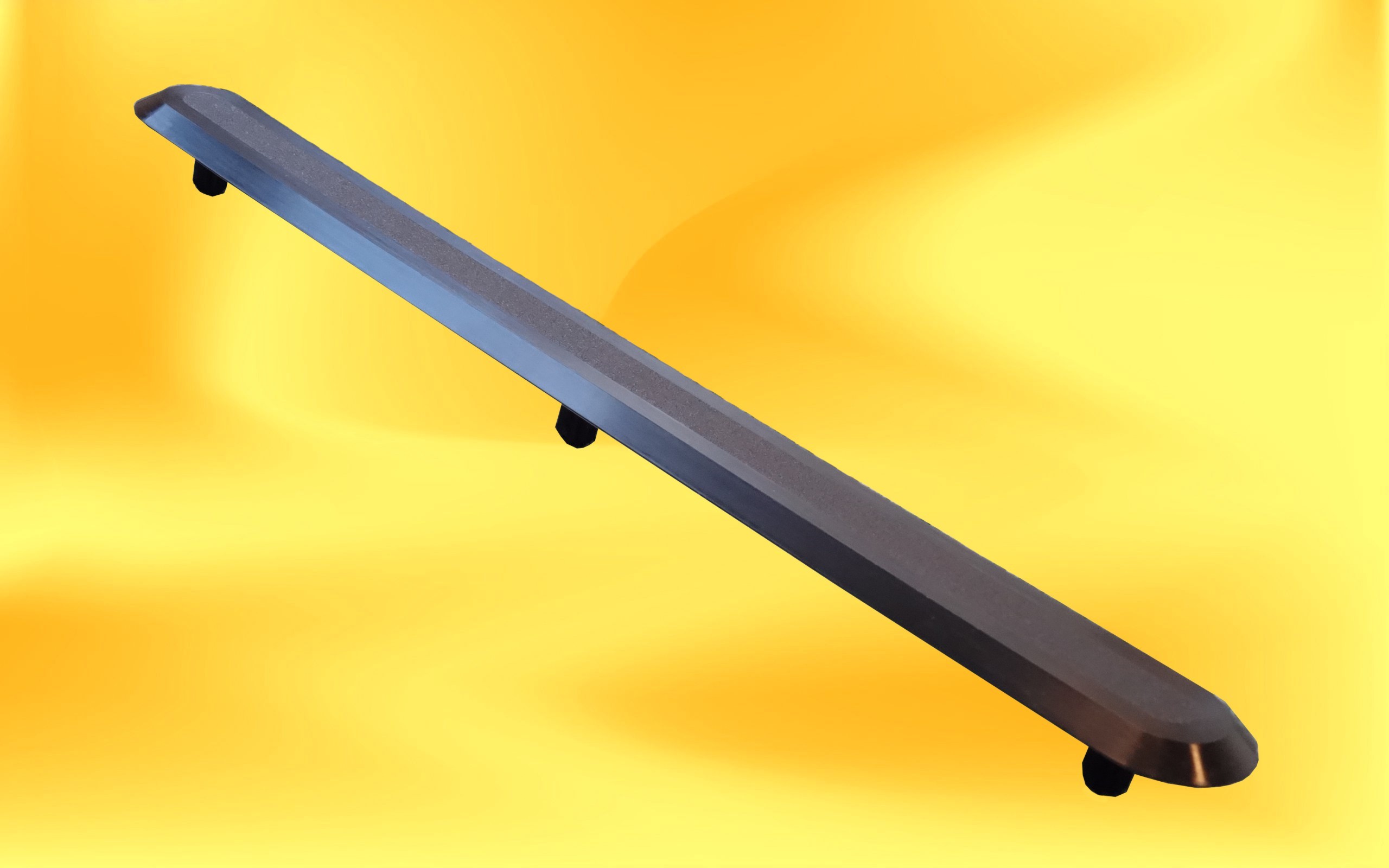

Tactile stripsTactile stripesTactile strips

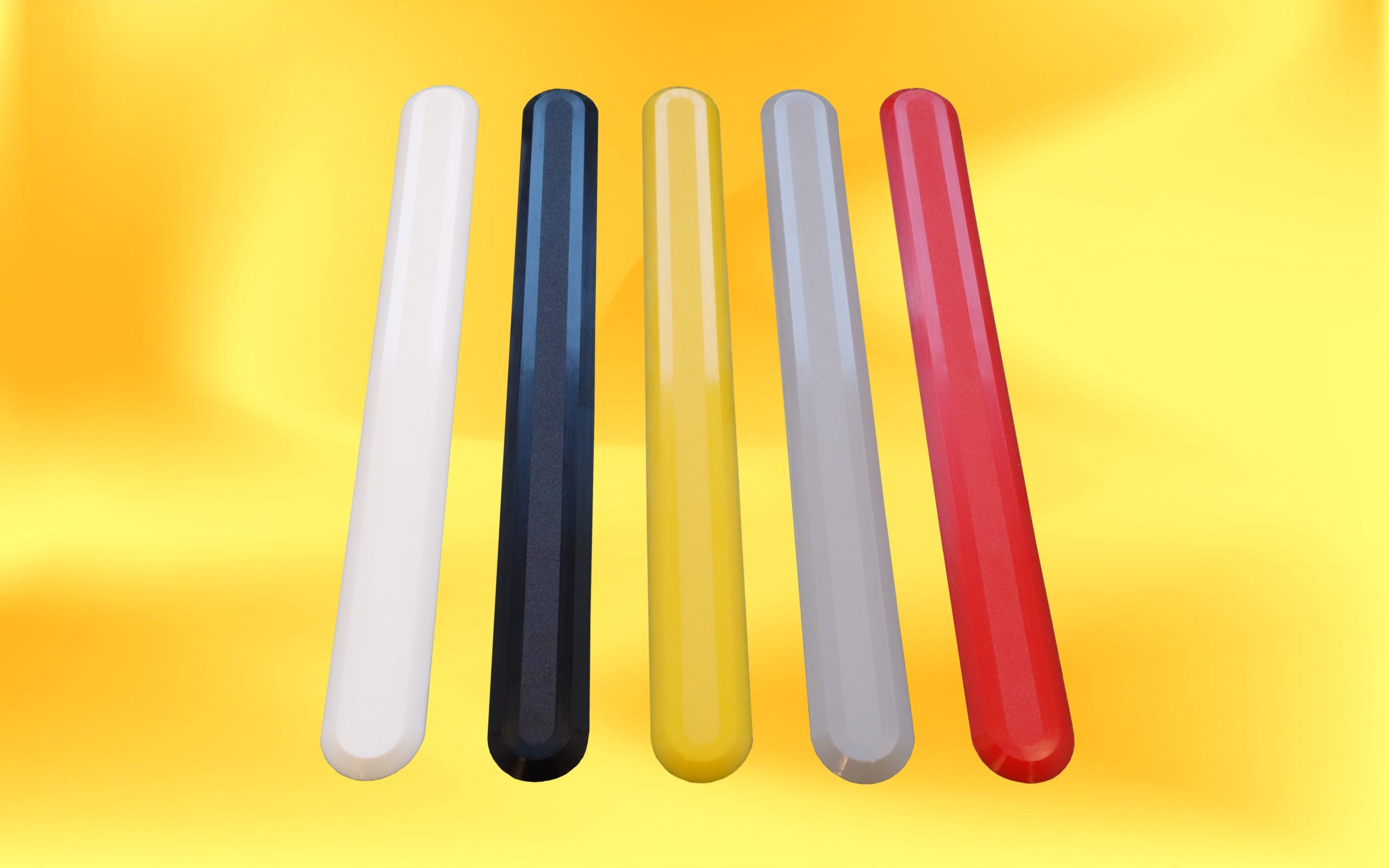

Possible colour versions with order numbers:

PL-1001      Guiding strip 280x30x4 mm without pins – white
PL-1001-P  Guiding strip 280x30x4 mm with pins – white
PL-1002      Guiding strip 280x30x4 mm without pins – black
PL-1002-P  Guiding strip 280x30x4 mm with pins – black
PL-1003      Guiding strip 280x30x4 mm without pins – yellow
PL-1003-P  Guiding strip 280x30x4 mm with pins – yellow
PL-1004      Guiding strip 280x30x4 mm without pins – grey
PL-1004-P  Guiding strip 280x30x4 mm with pins – grey
PL-1005      Guiding strip 280x30x4 mm without pins – red
PL-1005-P  Guiding strip 280x30x4 mm with pins – red
