Tactile studs AL-20 plain


Aluminium tactile paving studs with plain surface – type AL-20

Surface mounted warning studs made of aluminium are produced in two formats:  Ø35 mm or Ø25 mm
They are made in accordance with the international norm ISO 23599/2012 and/or the German norm DIN 32984 in various versions and are suitable (as a tactile orientation system for blind and visually impaired people) for indoor applications.
The top surface is plain (without any pattern/relief).
Tactile studs (tactile truncated domes) are made of AlMgSi and are available in 3 versions:
– with pin (for fixation into pre-drilled holes in floors)
– without pin (for fixation using additional glue like MAMUT or similar)
– self-adhesive with high-quality AFT adhesive tape

Order numbers of all versions are mentioned below the following photos of aluminium tactile studs.

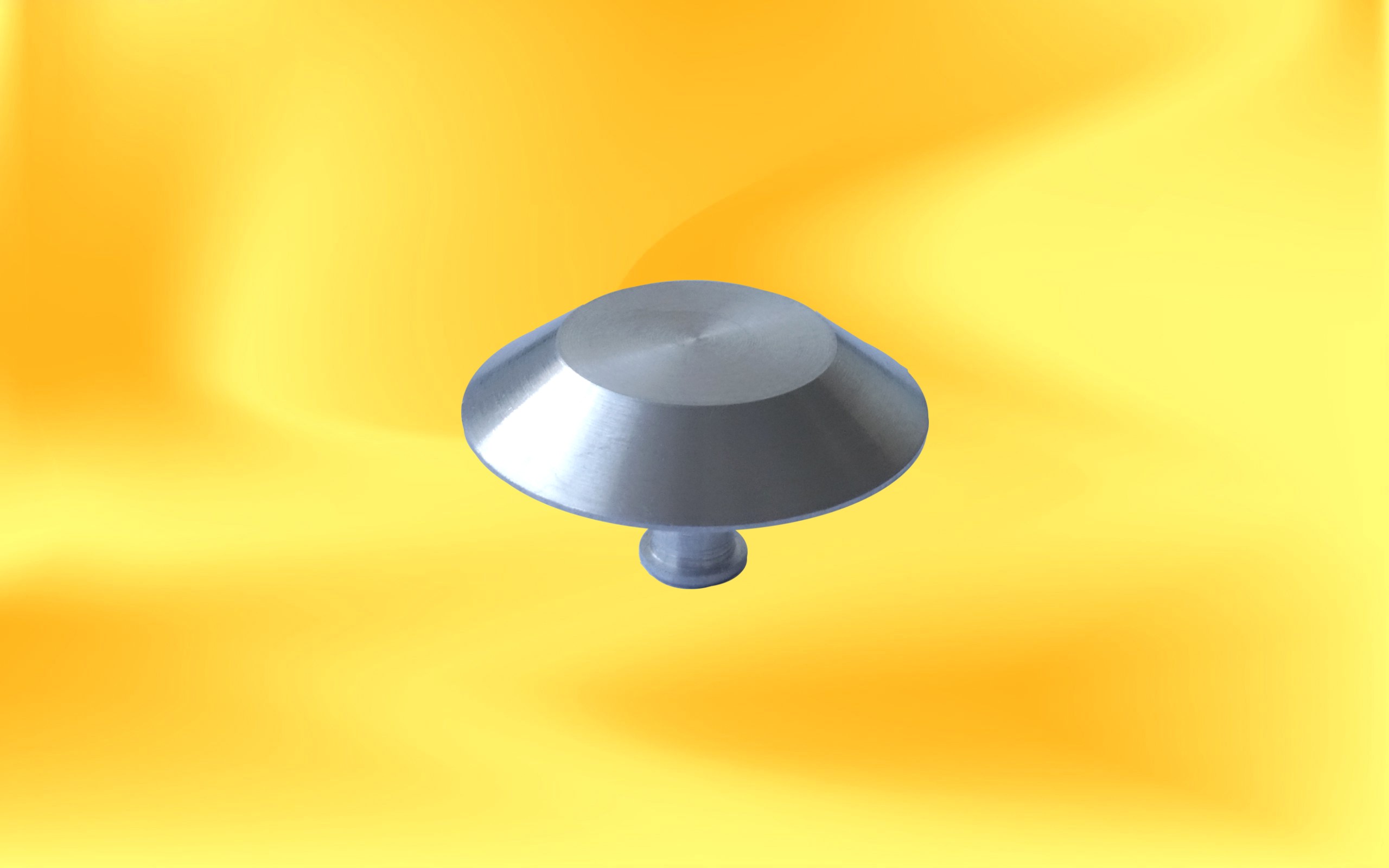

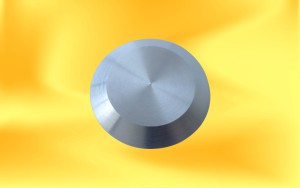

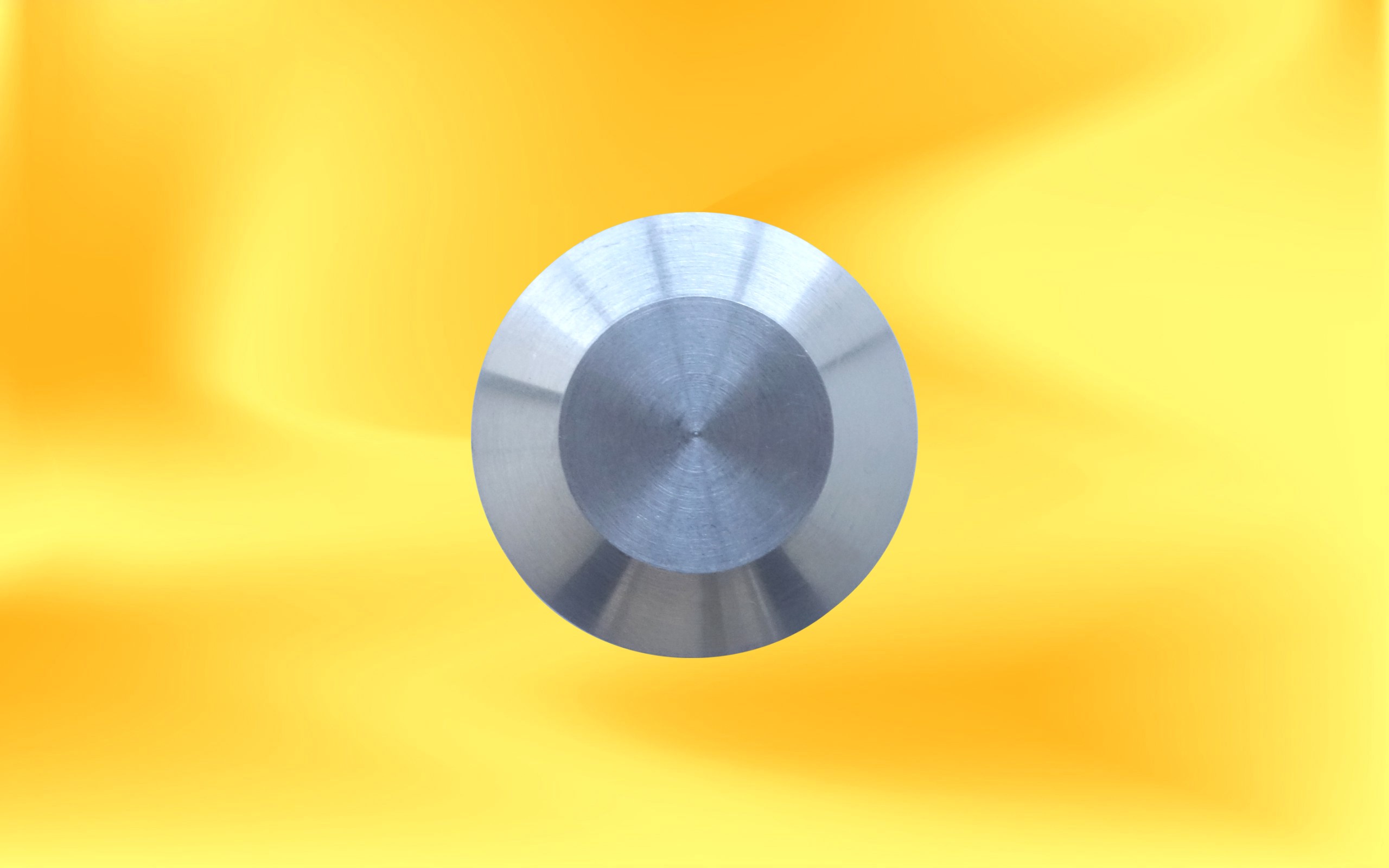

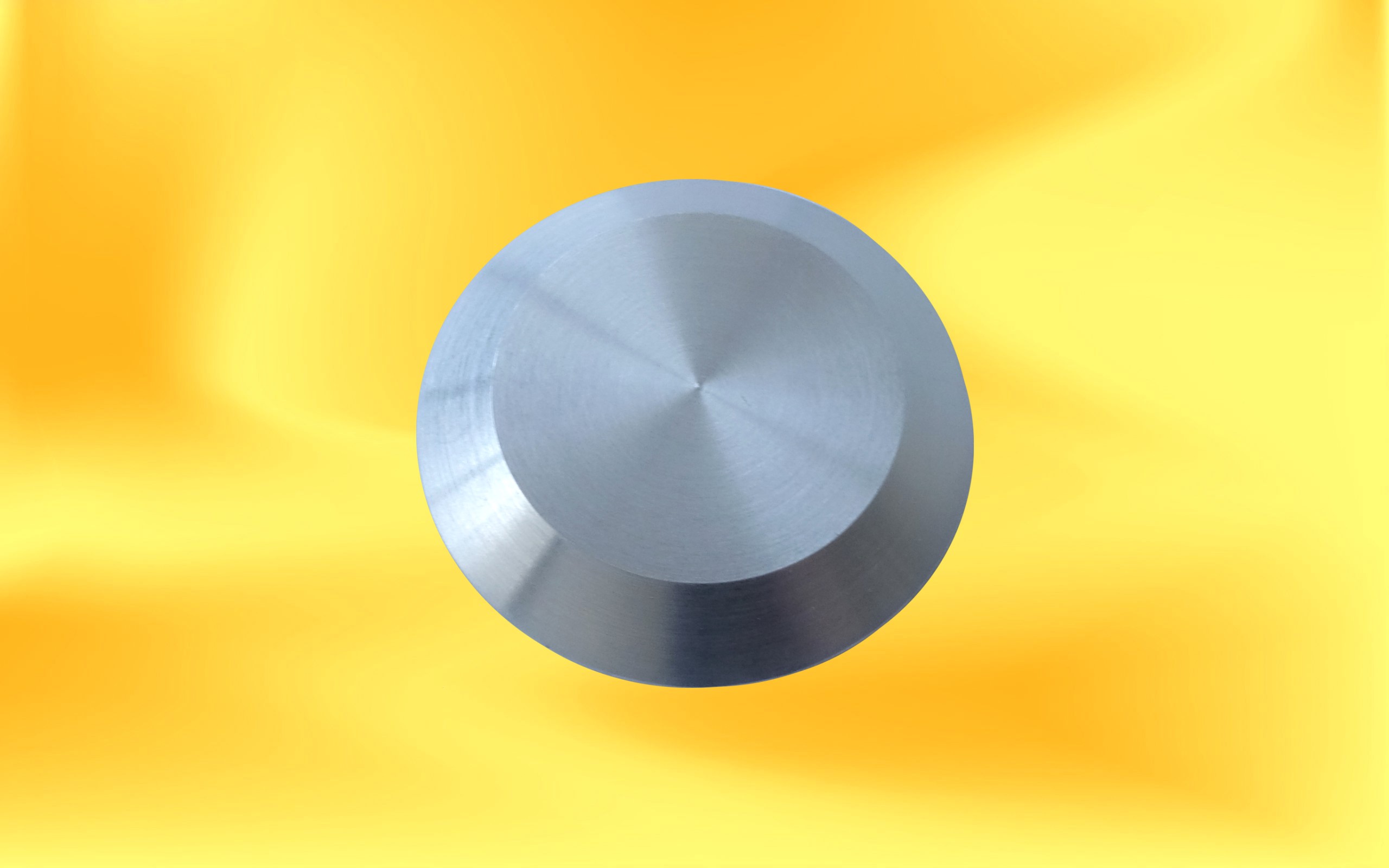

Tactile studs AL-20 plainTactile studs AL-20 plainTactile studs AL-20 plain

Available versions with order numbers:

AL-2001      Tactile stud Ø35/25×4 mm plain surface, without pin
AL-2001-P  Tactile stud Ø35/25×4 mm plain surface, with pin
AL-2001-S  Tactile stud Ø35/25×4,5 mm plain surface, self-adhesive (AFT tape)
AL-2011      Tactile stud Ø25/15×4 mm plain surface, without pin
AL-2011-P  Tactile stud Ø25/15×4 mm plain surface, with pin
AL-2011-S  Tactile stud Ø25/15×4,5 mm plain surface, self-adhesive (AFT tape)
